Rows : 1-Row
Material: AA5052 Aluminum
Radiator Flow: Cross Flow
Core Size: 11.13'' H x 31''W
Overall Size: 13.5'' H x 36'' W
Inlet Diameter: 1.5" Pass Side
Outlet Diameter: 1.25" Driver Side
Trans Cooler Details: φ32*190*5/8-18UNF(Z)
Mounting Type: Pin Mount
Includes CNC machined filler neck and cap
OEM Style Brass Petcock Drain.
This Radiator Include Coolant Filler Neck and Radiator Cap,Easy to buy wrong, please check original radiator before purchase!

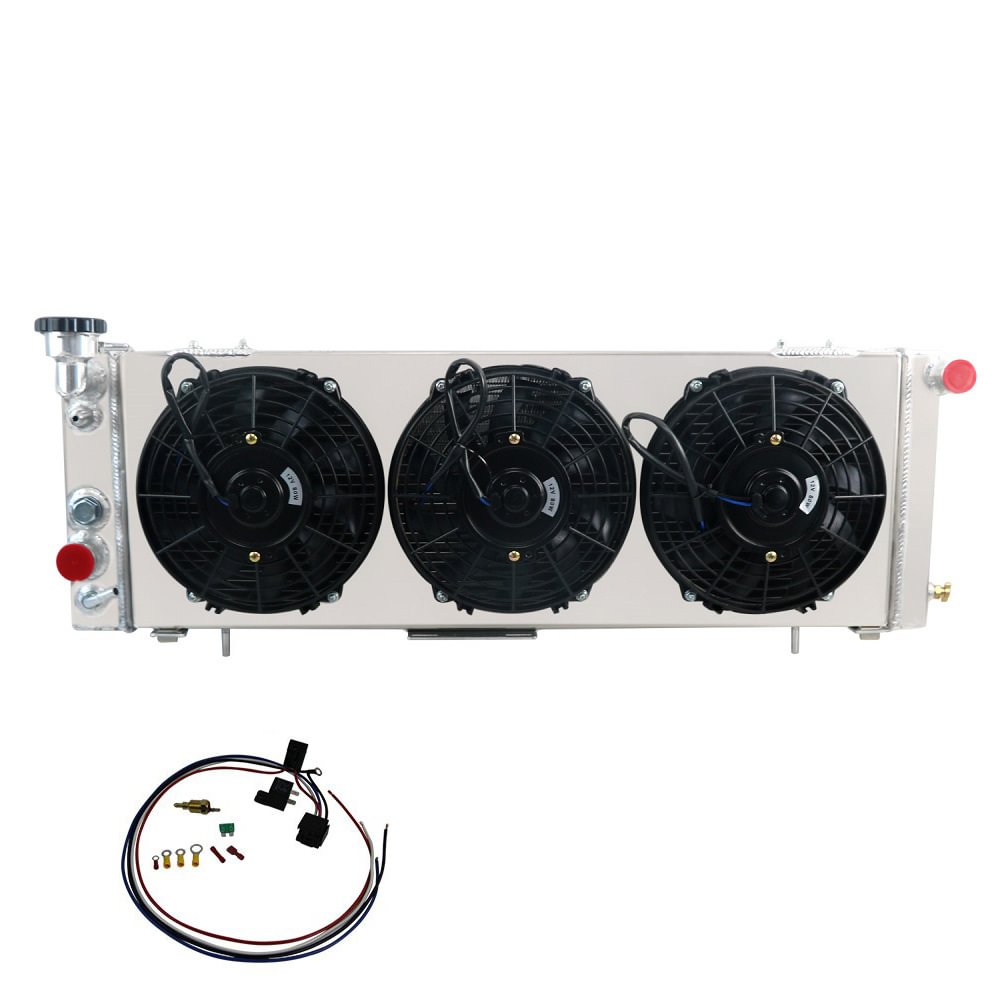

1 X 1-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
3 X 9" 90W Fans (Includes mounting kits)
1 X Thermostat Relay Kit
1 X 1-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
3 X 9" 90W Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 9.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Our radiator is made of AA5052 aircraft aluminum. 5052 Aluminum's major alloying element is magnesium, providing higher strength and greater corrosion resistance, including resistance to saltwater.
Higher density core: Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
The core of the radiator is welded in a vacuum brazing furnace, with no epoxy. The radiator is 100% TIG welded, ensuring stronger and higher coolant capacity than OEM units. It is made of high-quality full A5052 aluminum construction. An aluminum radiator is designed to provide maximum cooling efficiency, preventing premature engine failure.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at a preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.
This setup will run Fans & pull air in through the radiator.
Advanced Production Process
Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.
Leading-edge Technology
Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.
