Alloyworks Radiator Shroud Fan 4Row fit 93-97 Toyota Landcruiser 80 SERIES/Lexus LX450 4.5L

Alloyworks Radiator Shroud Fan 4Row fit 93-97 Toyota Landcruiser 80 SERIES/Lexus LX450 4.5L

536-51399DZFSXJ90W-BN
$359.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

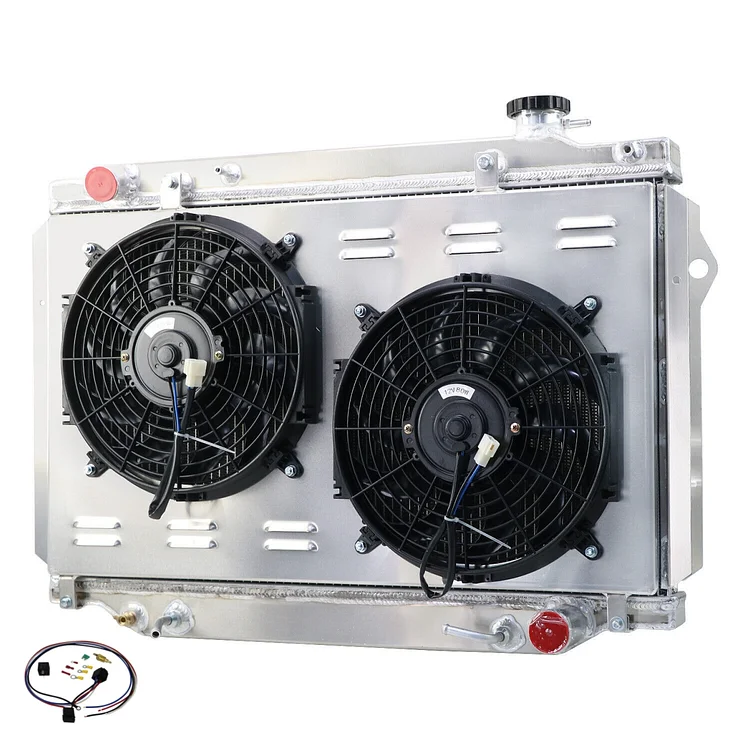

Package Include:
1 X 4-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
2 X 12" 90W Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core size: 16.75" H x 28.65" W
Overall size: 22.48" H x 31.79" W
Inlet Size: 1.5" passenger side
Outlet Size: 1.65" driver side
Transmission Oil Cooler：M14*1.5
Radiator Cap：CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar
Radiator Drain Plug: OEM Style Brass Petcock Drain.

Fan Specification:
12" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 80 Wattage
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Temperature Relay Switch Sensor Kit：
165~185 degree electric fan thermostat relay switch kit, It is a 3/8" pipe thread.
The kits is set up to turn your electric fan on at 185 degrees and shut off at 165 degrees and will work with any 12 volt system.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
