Pontiac Firebird 4 Row Radiator Shroud Fan fit 1970-1981 Trans Am Esprit Formula 3.8L V6,4.1L I6, 4.3L 4.4L 4.9L 5.7L 6.6L 7.5L V8
536-51391DZFSXJ90W-BN





Pontiac Firebird 4 Row Radiator Shroud Fan fit 1970-1981 Trans Am Esprit Formula 3.8L V6,4.1L I6, 4.3L 4.4L 4.9L 5.7L 6.6L 7.5L V8
536-51391DZFSXJ90W-BN
Fits:
1977-1981 Pontiac Firebird 3.8L 231Cu. In. V6
1970-1976 Pontiac Firebird 4.1L 250Cu. In. l6
1980 1981 Pontiac Firebird 4.3L 265Cu. In. V8
1981 Pontiac Firebird 4.4L 267Cu. In. V8
1977-1981 Pontiac Firebird 4.9L 301Cu. In. V8 / 5.0L 305Cu. In. V8
1970-1979 Pontiac Firebird 5.7L 350Cu. In. V8 / 6.6L 400Cu. In. V8
1977-1979 Pontiac Firebird 6.6L 403Cu. In. V8
1971-1976 Pontiac Firebird 7.5L 455Cu. In. V8

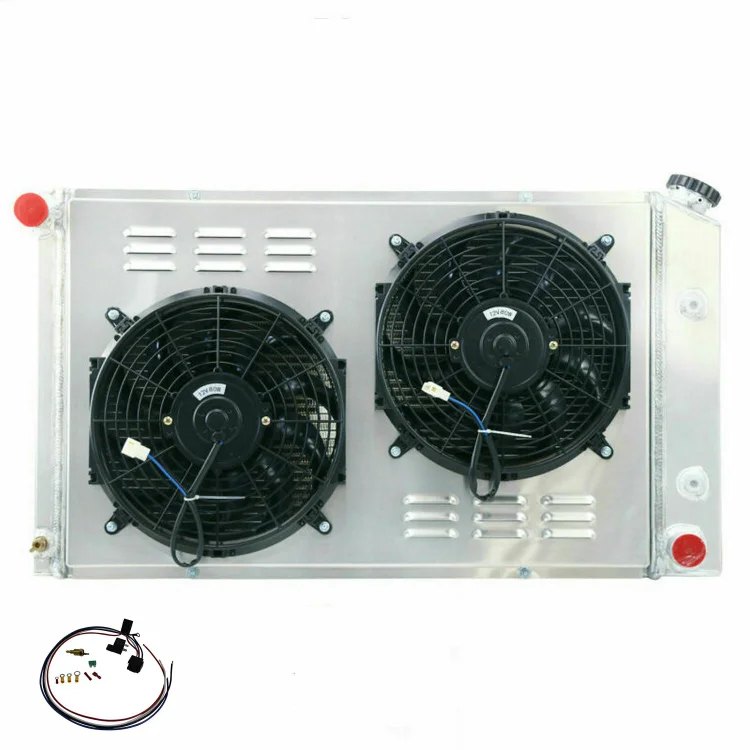

This Listing Is Including:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Core Size: 17" H x 27 1/2" W
Overall Size: 18 3/8" H x 32 1/2" W
Upper Inlet: 1 1/2" on driver side
Lower Outlet: 1 1/2" on passenger side
Transmission Oil Cooler: G1/4(Z)
Please Check the Size Before You Buy!
Fans Details:
12" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 80 Wattage
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
What About AA5052?
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM style brass petcock drain much better than other plastic one
7. Carefully crafted to exceptional OE standards for precise fit.
