Fits:
2005-2015 Nissan Titan 5.6L 5552CC V8 FLEX DOHC Naturally Aspirated
2004-2015 Nissan Titan 5.6L 5552CC V8 GAS DOHC Naturally Aspirated
2007-2015 Nissan Armada 5.6L 5552CC V8 FLEX DOHC Naturally Aspirated
2005-2015 Nissan Armada 5.6L 5552CC V8 GAS DOHC Naturally Aspirated
2004-2010 Infiniti QX56 5.6L 5552CC V8 GAS DOHC Naturally Aspirated

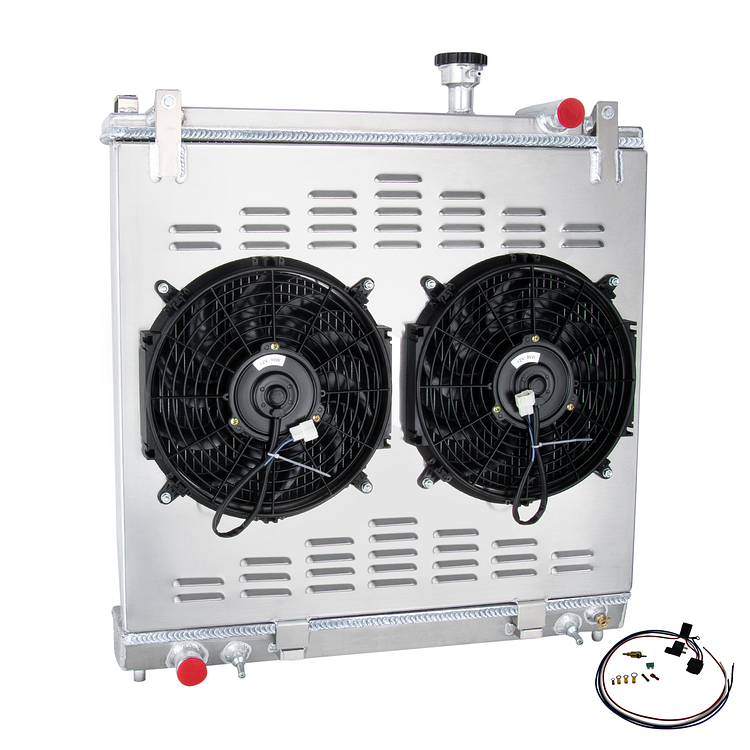

Package included:
1 X 4-ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP
1 X AA5052 Aluminum Shroud
2 X 12" 90W Fan
1 X Thermostat Temperature Switch Relay Kit
Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: AA5052 Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: AA5052 Aircraft Grade Raw Aluminum
Core Dimensions: 26 3/4" H x 23 1/2" W
Overall Dimensions: 31 2/7'' H × 27 5/9'' W
Top Hose Connection: 1 1/2" located on Passenger side.
Bottom Hose Connection: 1 1/2" located on the Driver side.
Transmission Cooler: M12*1.0
CNC Precision Machined Radiator Cap
OEM style brass petcock drain.
Please Check the Size Before You Buy!
Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2150cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Description:
AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area
that enables the heat to dissipate more efficiently. AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock one. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Covers vast selection of import and domestic applications
Stringently tested to guarantee optimum performance and dependability
Straightforward installation guaranteed
Carefully crafted to exceptional OE standards for precise fit
Made from high-grade materials for prolonged lifespan
