For Ford Falcon/Ranchero 1960-1965
For Ford Econoline/Mercury Comet 1961-1965
For Ford Mustang 1965-1966
For V8 Engine swap ONLY
Engine applications: 5.0L, 302ci, 351ci, 390ci, 428ci, & 429ci V8 ONLY
Click here to view all compatible vehicles
This Radiator Size:

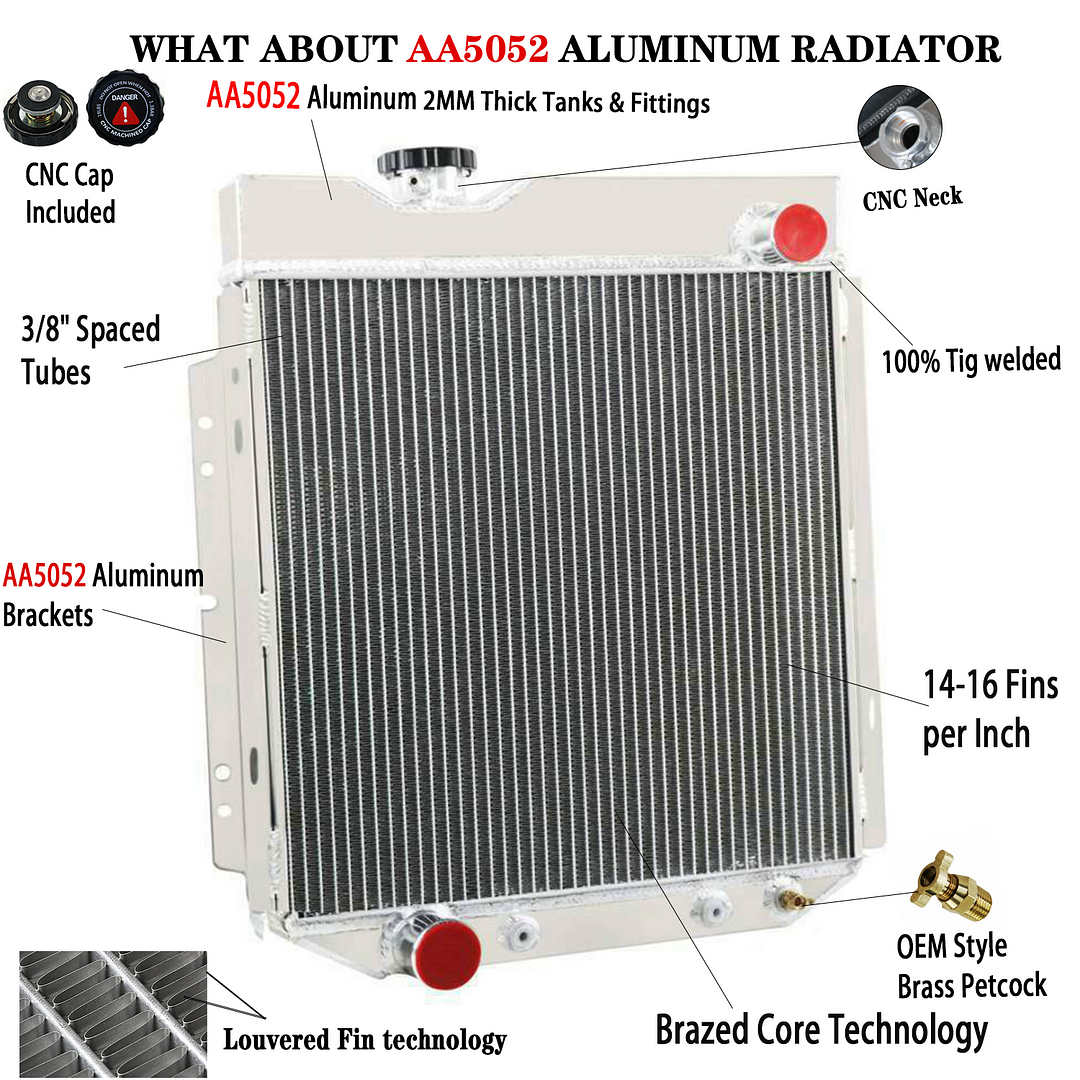

High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: T-5057 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Dimensions: 16-1/2" High x 17" Wide
Overall Dimensions: 21-3/4" High x 19-5/8" Wide
Upper INLET: 1-1/2" located on the Passenger side.
Lower OUTLET: 1-3/4" located on Driver side.
Mounting System: Bracket
Transmission Cooler: Included
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality T-5057 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
