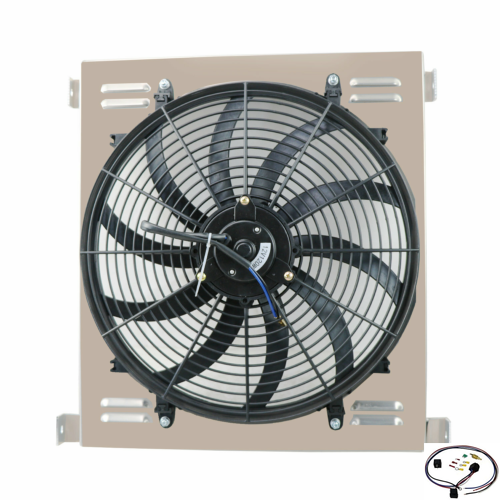

Package included:
1 X AA5052 Aluminum Shroud
1 X 16" 120W Fan
1 X Thermostat Temperature Switch Relay Kit
The size of radiator which the shroud fan fits:
Core Dimensions: 20" High x 16-5/8" Wide
Overall Dimensions: 26-1/2"High x 20"Wide
Fan Specification:
Diameter : 16'' (Blade to Blade)
Number of Blades: 10 pcs
Maximum Fan CFM(Cubic Feet per Minute): 3,000 cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2,250 rpm
Max. Amp Draw: 15amp
Voltage: DC 12V
Wattage: 120W
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Shroud+Fans:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
