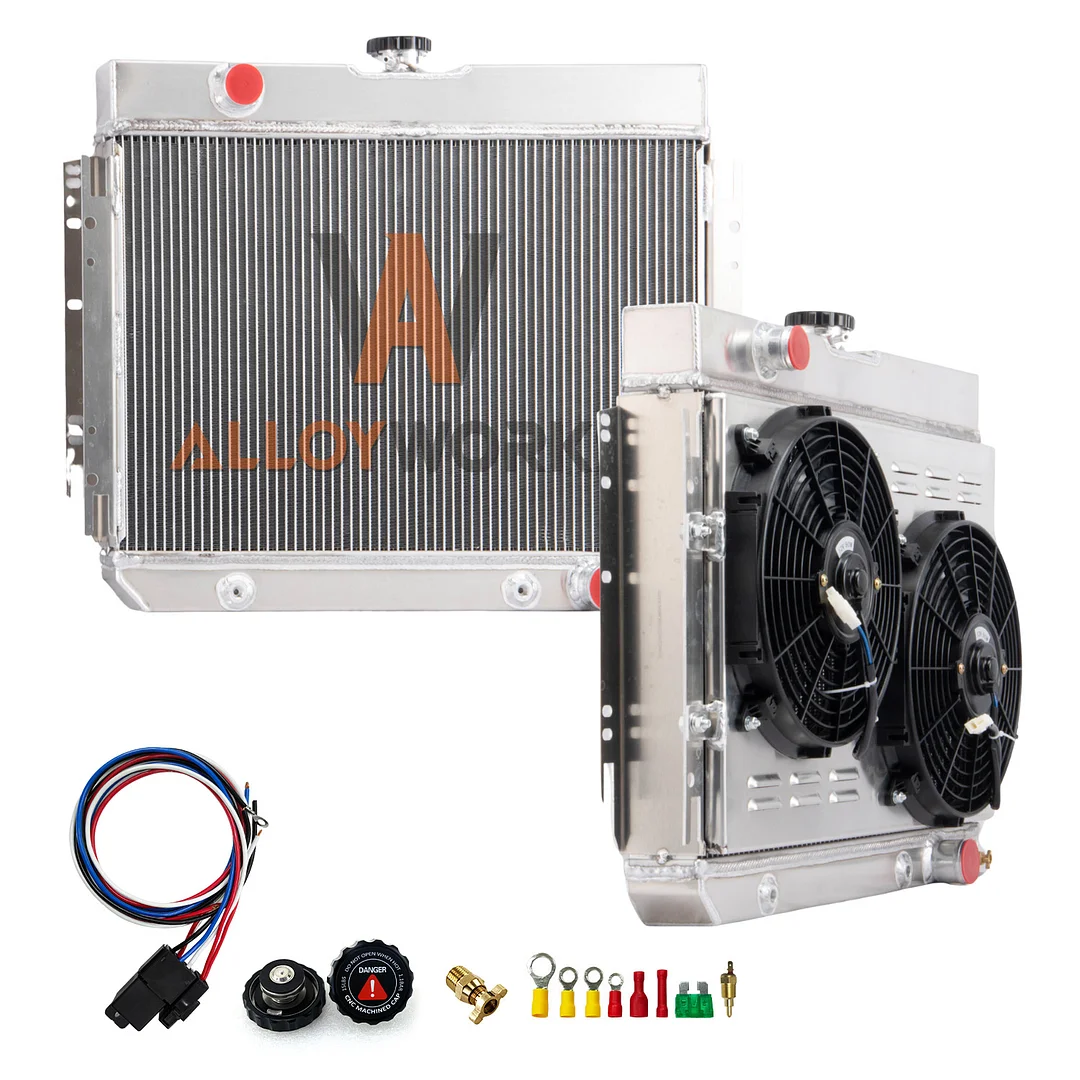

Alloyworks 4 Rows Radiator with Shroud & Fan Fits 1963-1968 64 Chevy Impala Bel Air Chevelle Biscayne

Alloyworks 4 Rows Radiator with Shroud & Fan Fits 1963-1968 64 Chevy Impala Bel Air Chevelle Biscayne

RAD-CHEV-AL-295
$399.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing

This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

Radiator Size

Core Size: 16'' H x 25-1/4'' W x 2 4/9''Thick

Overall Size: 22-1/4'' H x 27-3/4'' W x 6 1/2'' Thick

Upper Inlet: 1-1/2 in.

Lower Outlet: 1-3/4 in.

Trans Cooler: 1/2" 20 Straight Thread G-1/4

Mounting Type: Bracket

Row: 4 Row Core

Material: AA5052 Aluminum

Radiator Cap: included

Core and Tank: AA5052 Aluminum

Radiator Features

ISO/IATF16949 Certified: Full Aluminum Radiator for Superior Cooling and Perfect Fit

1. This aluminum radiators is made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable

4. Billet Aluminum CNC machined fill neck is rugged and durable

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment

6. Carefully crafted to exceptional OE standards for a precise fit

The Alloyworks 4 Rows Radiator with Shroud & Fan is a premium radiator replacement designed for 1963-1968 Chevy Impala, Bel Air, Chevelle, and Biscayne models. This high-performance Chevrolet radiator offers superior cooling with its 4-row design, ensuring your car engine cooler stays at optimal temperatures, even under heavy loads.

Crafted from durable materials, it significantly enhances heat dissipation compared to standard car radiators. The included shroud and fan combo boosts airflow, making it the ideal upgrade for classic Chevy enthusiasts seeking reliability and efficiency. Keep your engine cool and running smoothly with this top-of-the-line radiator.

AA5052 Aluminum Shroud & Fan

The custom-made AA5052 aluminum fan shrouds are manufactured to fit this radiator. These fan shrouds are fabricated for our electric cooling fans but allow to use with most low-profile electric fans.

The fan and the fan shroud effectively drive the heat over and out of the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine.

1. Shuttered design AA5052 fan shroud to guarantee airflow passes high efficiently. Make your engine bay perfect.

2. S-blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

Fan Specification

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at the preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" 90W Fans (Includes mounting kits)

1 X Thermostat Relay Kit
