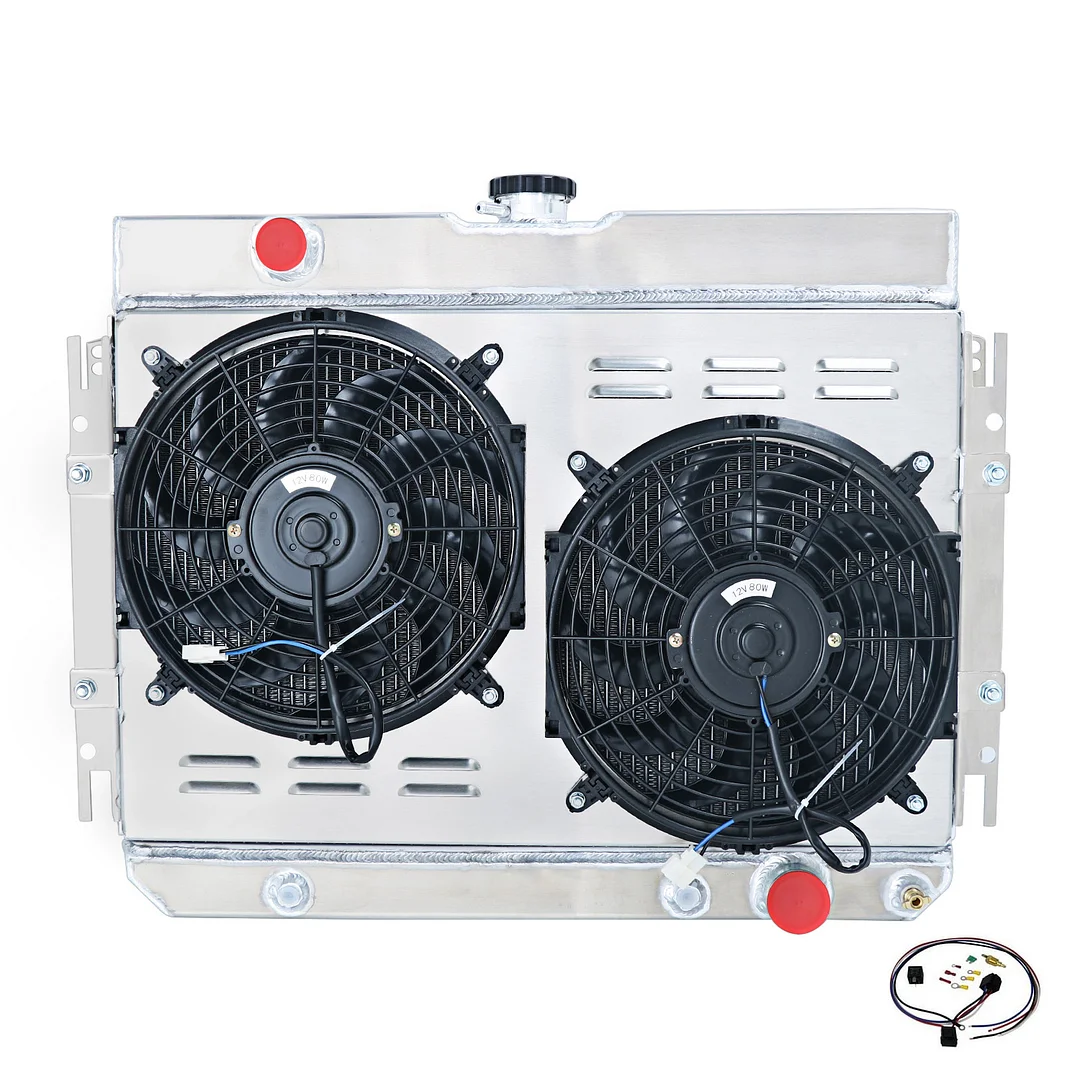

Alloyworks 4 Rows Radiator with Shroud & Fan Fits 1963-1968 64 Chevy Impala Bel Air Chevelle Biscayne

Alloyworks 4 Rows Radiator with Shroud & Fan Fits 1963-1968 64 Chevy Impala Bel Air Chevelle Biscayne

RAD-CHEV-AL-295
$379.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.

Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing

This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

Radiator Size

Core Size: 16'' H x 25-1/4'' W x 2.44''Thick

Overall Size: 22-1/4'' H x 27-3/4'' W x 6.5'' Thick

Upper Inlet: 1-1/2 in.

Lower Outlet: 1-3/4 in.

Trans Cooler: 1/2" 20 Straight Thread G-1/4

Mounting Type: Bracket

Row: 4 Row Core

Material: AA5052 Aluminum

Radiator Cap: included

Core and Tank: AA5052 Aluminum

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" 90W Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" 90W Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Radiator Features

1. This aluminum radiators is made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable

4. Billet Aluminum CNC machined fill neck is rugged and durable

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment

6. Carefully crafted to exceptional OE standards for a precise fit

Fan Specification

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

The Alloyworks 4 Rows Radiator with Shroud & Fan is a premium radiator replacement designed for 1963-1968 Chevy Impala, Bel Air, Chevelle, and Biscayne models. This high-performance Chevrolet radiator offers superior cooling with its 4-row design, ensuring your car engine cooler stays at optimal temperatures, even under heavy loads.

Crafted from durable materials, it significantly enhances heat dissipation compared to standard car radiators. The included shroud and fan combo boosts airflow, making it the ideal upgrade for classic Chevy enthusiasts seeking reliability and efficiency. Keep your engine cool and running smoothly with this top-of-the-line radiator.
Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at the preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
