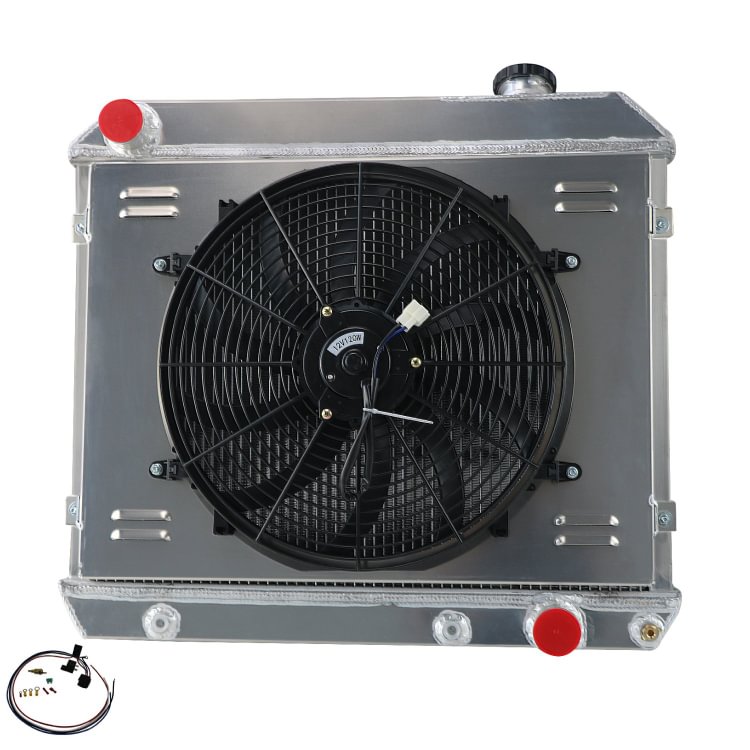

Alloyworks 4 Rows Radiator with Fan Shroud Relay for 1961-1966 Chevy Truck C10 C20 C30 K20 K30 3.8L 4.1L 4.6L 4.8L 5.3L 5.7L 6.4L 6.9L V8 -120W STRENGTHEN COOLING 23-2/9" High x 24-4/5" Width

Alloyworks 4 Rows Radiator with Fan Shroud Relay for 1961-1966 Chevy Truck C10 C20 C30 K20 K30 3.8L 4.1L 4.6L 4.8L 5.3L 5.7L 6.4L 6.9L V8 -120W STRENGTHEN COOLING 23-2/9" High x 24-4/5" Width

RAD-CHEV-AL-37
$399.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

4-Row of tubes Core Racing Design

High-Performance Racing Spec

Core Material: AA5052 Aluminum

Tank Material: AA5052 Aircraft Grade Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Includes CNC machined filler neck and cap

Core Dimensions: 17-2/5" High x 22-3/4" Wide X 2-4/9" Thick

Overall Dimensions: 23-2/9" High x 24-4/5" Wide x 6-2/7" Thick

Upper Inlet: 1-3/4" located on the Driver side.

Lower Outlet:1-3/4" located on Passenger side.

Transmission Oil Cooler: ￠22*300*G1/4(Z)

OEM Style Brass Petcock Drain.

Please Check the Size Before You Buy!

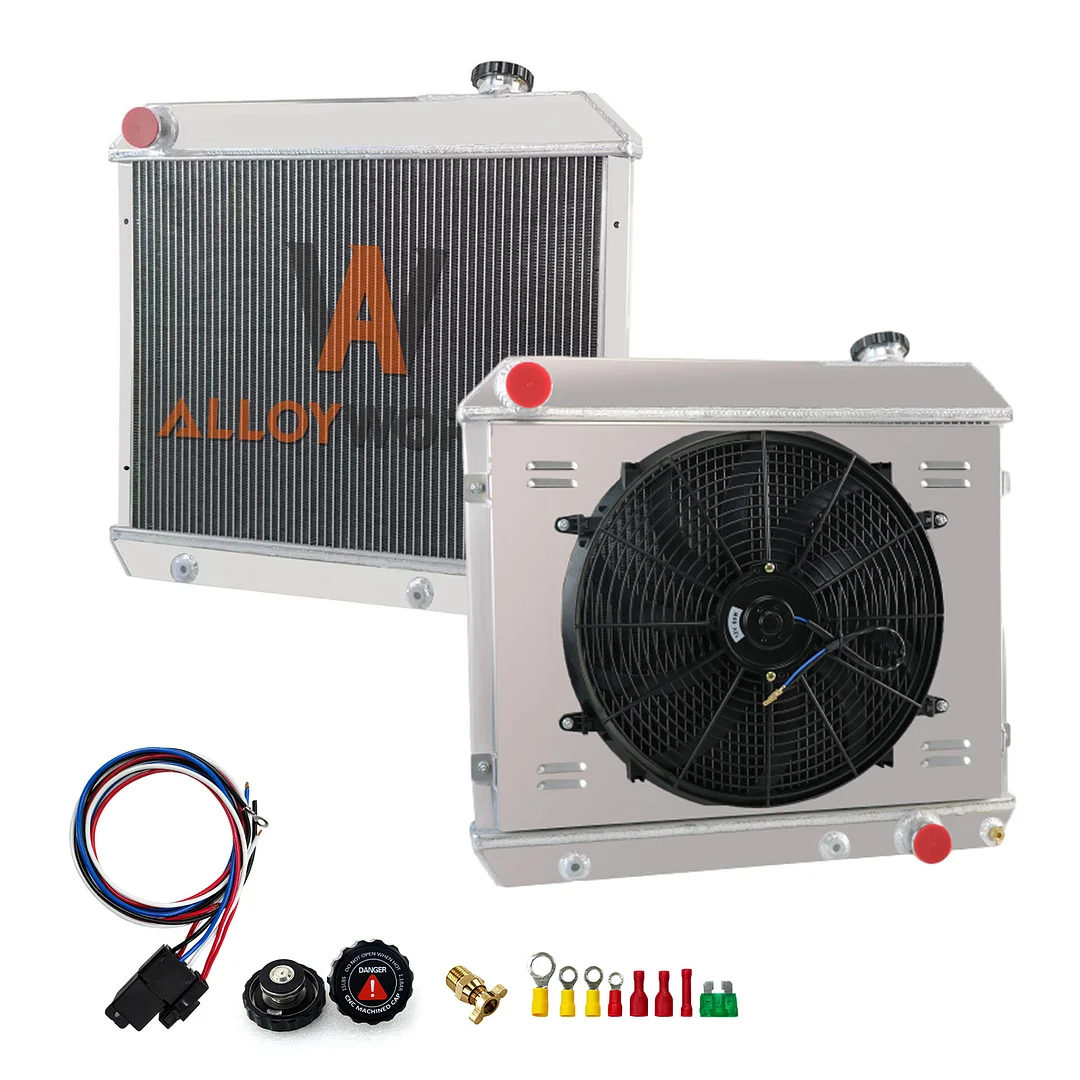

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 16" Fans (Includes mounting kits)

1 X Thermostat Relay Kits

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 16" Fans (Includes mounting kits)

1 X Thermostat Relay Kits

Fan Specification

Direct Bolt-On Installation, Requires No Modification

Performance JDM Spec. Racing Design

OE Fitment or Replacement, Push or Pull Type

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 16.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

ISO/IATF16949 Certified — Full Aluminum Radiator for Superior Cooling and Perfect Fit

This Chevy Truck Radiator is made of AA5052 aircraft aluminum. 5052 Aluminum's major alloying element is magnesium, providing higher strength and greater corrosion resistance, including resistance to saltwater.

Higher density core: Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.

The core of the radiator is welded in a vacuum brazing furnace, with no epoxy. The radiator is 100% TIG welded, ensuring stronger and higher coolant capacity than OEM units. It is made of high-quality full A5052 aluminum construction. An aluminum radiator is designed to provide maximum cooling efficiency, preventing premature engine failure.

Radiator Features:

This Chevy Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at a preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.
