Description

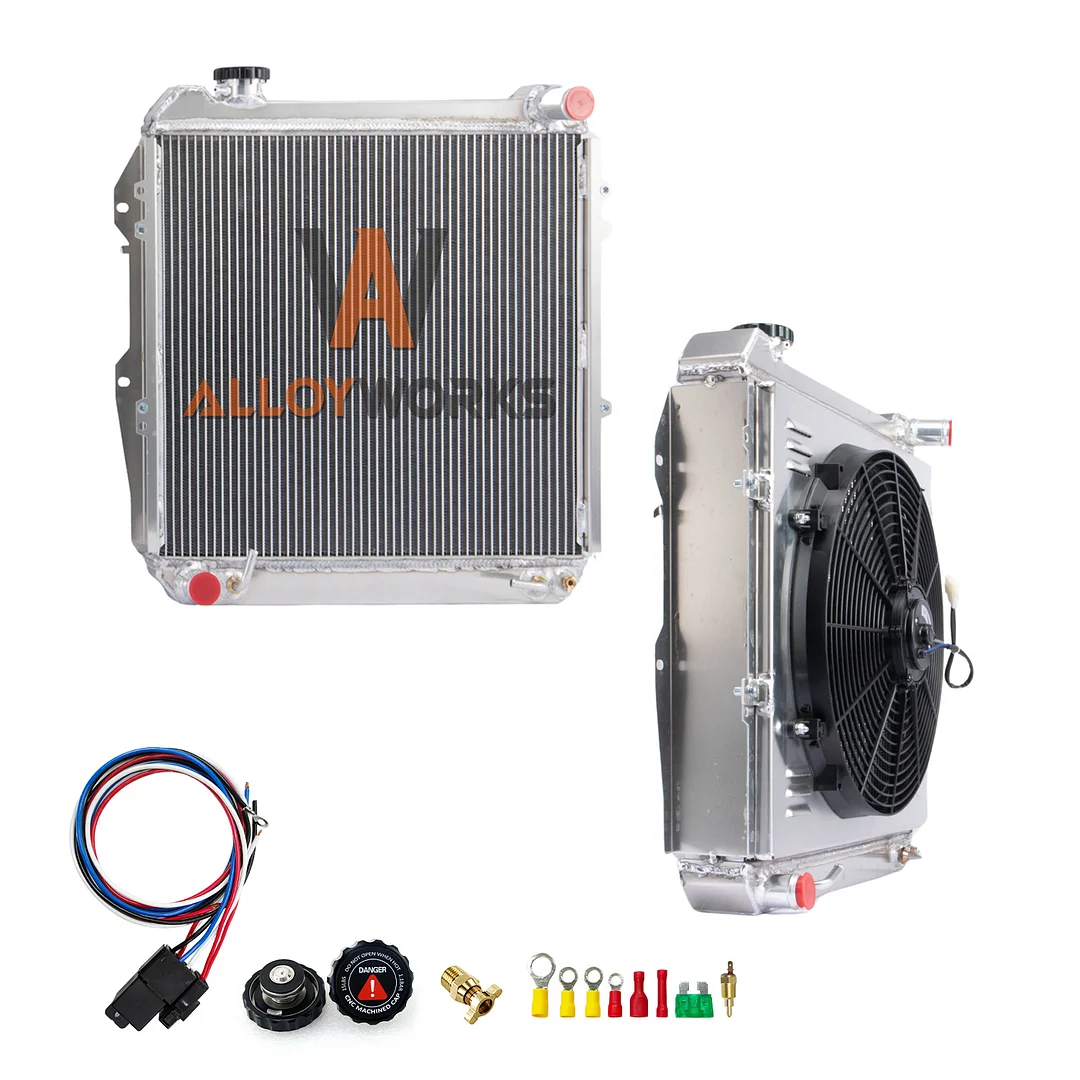

Package Include: 1 X 4-Row AA5052 Aluminum Radiator 1 X CNC Machined Radiator Cap 1 X AA5052 Aluminum Shroud 1 X 16''Fan (Includes mounting kits) 1 X Thermostat Relay Kit
RADIATOR SIZE: High Performance Racing Spec. 4-Row of tubes Core Racing Design Core Material: AA5052 Aluminum Tank Material: AA5052 Aircraft Grade Aluminum Surface Finish: AA5052 Aircraft Grade Raw Aluminum Core Dimensions: 18 3/4''H x 20 2/5'' W x 2 4/9'' T Overall Dimensions: 23-1/2" H x 23-1/2" W x 6 1/2''T Inlet Hose Connection: 1 3/8 Passenger Side Outlet Hose Connection: 1 3/8 Driver Side Transmisson Oil Cooler:¢26*370*M14*1.5 Radiator Cap:CNC Precision Machined Radiator Cap Radiator Drain Plug:OEM Style Brass Petcock Drain. Please Check the Size Before You Buy!
Fan Specification: Diameter : 16'' (Blade to Blade) Voltage: DC 12 Volts Wattage: 120W Number of Blades: 10 S-Type blades Maximum Fan CFM(Cubic Feet per Minute): 3,000 cfm Maximum Fan RPM(Revolution(s) Per Minute): 2000±10% Amp Draw: 10amp Fan Thickness: 3.27" S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect Powerful 120 watt motor will keep your engine cool.
Thermostat Kit: Work with any 12 volt system. Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 185'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included.
Thermostat Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aircraft Grade Raw Aluminum Construction
Full Raw Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Raw Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
