This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!
(Both top hose and bottom hose on Passeger side)
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Material: High Quality Full AA5052 Aluminum Construction
Core Size: 15 1/2"High x 19 1/2"Wide x 2 4/9'' Thick
Overall Size: 20 2/3" High x 22 1/5" Wide x 6 2/7''Thick
Inlet Size: 1 1/2" Passenger Side
Outlet Size: 1 3/4" Passenger Side
Transmission Oil Cooler: ¢22*150*M10*1.0(T)
Tank Size: 3" X 17 3/8"
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Why choose us? What are the advantages of our product?
1. ISO/IATF16949 Certified — Full Aluminum Radiator for Superior Cooling and Perfect Fit
2. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish.
3. Brazed core technology to guarantee optimum performance and dependability.
4. All AA5052 Aluminum 2mm thick tanks and fitting, ensure it's hard and durable.
5. OEM style brass petcock drain is much better than other plastic ones.
6. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
Diameter : 14'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Number of Blades: 8 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2250 cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
Fan Thickness: 2.64"
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our radiators.
The fan and the fan shroud effectively drive the heat over and out of the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at a preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.
This setup will run Fans & pull air in through the radiator.

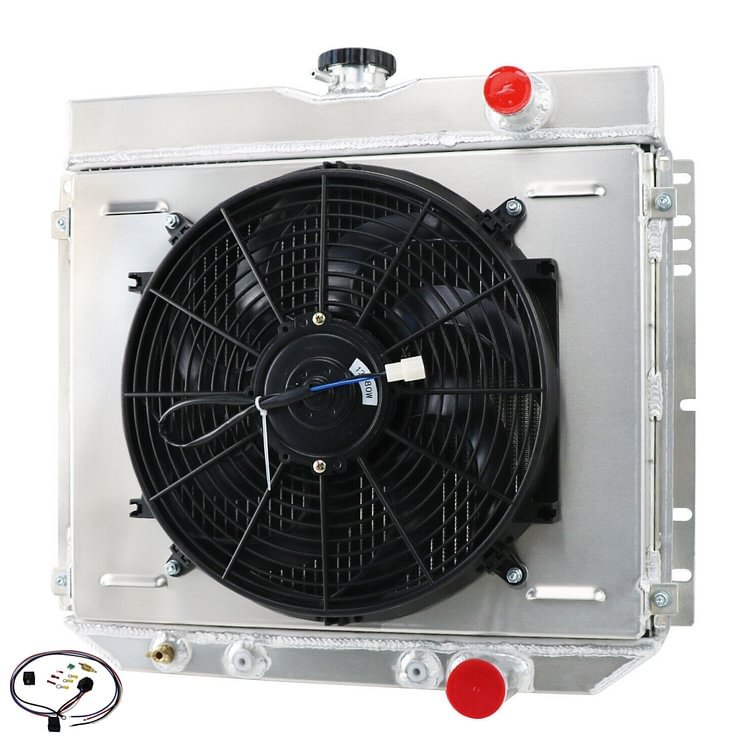

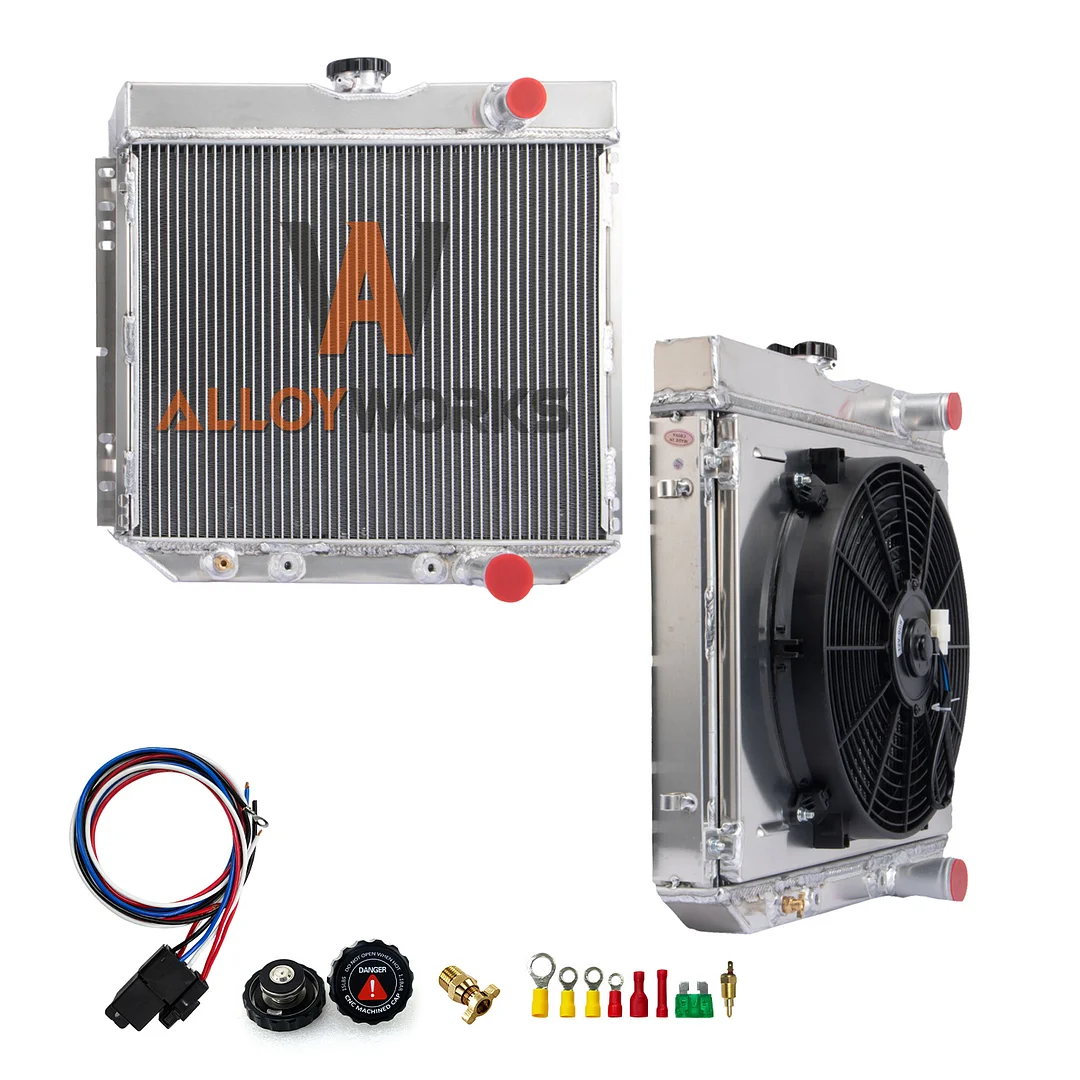

1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14" Fans 90W(Includes mounting kits)
1 X Thermostat Relay Kit
Advanced Production Process
Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.
Leading-edge Technology
Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.
