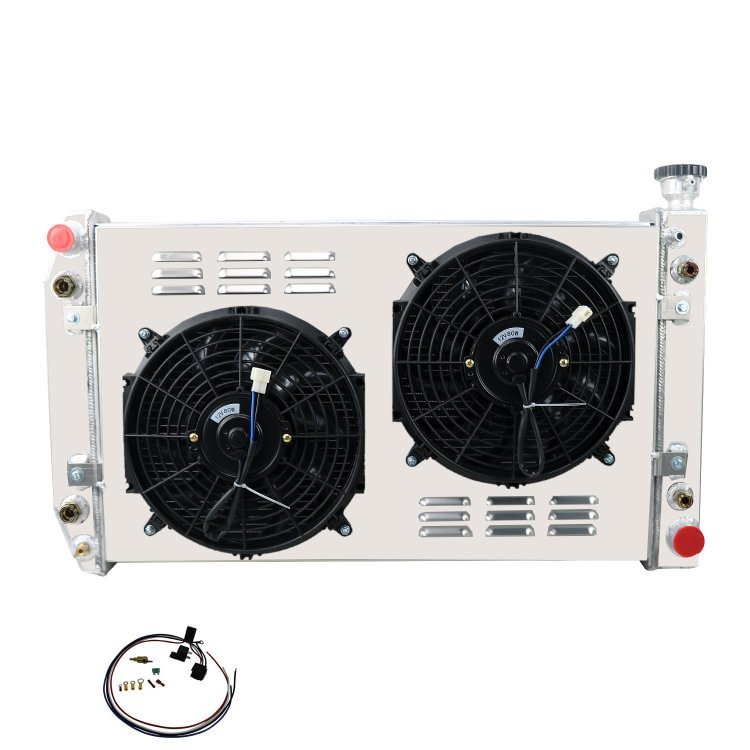

Alloyworks 4 Rows Radiator with Shroud Fan For Chevy C/K GMC 1500/2500/3500 Truck 1988-1999 1991 12" Fan 28''Wide

Alloyworks 4 Rows Radiator with Shroud Fan For Chevy C/K GMC 1500/2500/3500 Truck 1988-1999 1991 12" Fan 28''Wide

RAD-CHEV-AL-273
$359.00
$369.00
Save 3%
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order. This radiator may not perfectly match all compatible vehicles due to its upgraded design.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

4-Row of tubes Core Racing Design

Core Material: AA5052 Aluminum

Tank Material: AA5052 Aircraft Grade Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Core Size: 17-1/4" H x 28-1/4" W x 2 4/9''Thick

Overall Size: 20 1/4" H x 33 7/8" W x 6.3'' Thick

Inlet Diameter: In - 1 5/16"

Outlet Diameter: Out - 1 9/16"

Upper Hose Fitting: Driver

Lower Hose Fitting: Pass

Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare

Engine Oil Cooler: M20 x 1.5 3/4-18 Adapter

ISO/IATF16949 Certified: Full Aluminum Radiator for Superior Cooling and Perfect Fit

This product is easy to buy wrong, please pay attention to check the size carefully to make sure it will meet your needs.

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Fan Specification

Maximum Fan CFM: 1730 cfm

Motor: 90W

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blades

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:

Work with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe included.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

About "AA5052" Aluminum Materials

Our radiator is crafted from superior AA5052 aircraft aluminum, setting it apart from the common T-3303 series found in many car radiators on the market. While over 90% of aftermarket manufacturers use T-3303 aluminum because it’s cheaper and more readily available, it comes with significant drawbacks—poor polishing, softness, susceptibility to scratches and corrosion, and inferior heat dissipation. Prolonged use of a T-3303 aluminum radiator under high pressure and temperature can quickly lead to leaks. For a reliable radiator replacement, especially in Chevy radiators like the Chevy Silverado radiators, upgrading to our AA5052 aluminum radiators is a smarter choice.

About AA5052 Aluminum:

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability, and cold workability and strength. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of vehicles and ships, hardware products, and electrical-appliance casings.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.
