Alloyworks 4 Row Radiator with Shroud Fan For Chevy 70-81 Camaro/78-87 Monte Carlo/75-79 Nova 18-1/4" H x 31-5/8" W

Alloyworks 4 Row Radiator with Shroud Fan For Chevy 70-81 Camaro/78-87 Monte Carlo/75-79 Nova 18-1/4" H x 31-5/8" W

RAD-CHEV-AL-32
$359.00
$369.00
Save 3%
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

4-Row of tubes Core Racing Design

Core Dimensions: 16.9" H x 26.2" W x 2.44'' T

Overall Dimensions: 18.5" H x 31.7" W x 6.1'' T

Inlet Diameter: 1.5"

Outlet Diameter: 1.6"

Transmission Oil Cooler: φ32*215*G1/4（Z)

OEM Style Brass Petcoke

Radiator Cap: CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar

Please check the size carefully before purchase.

Fitments

For Chevy/GMC C/K/G-Series C10-C20 C25-C3500 1970-1985;

For Chevy El Camino 78-1987/ Impala 1980-1985;

For Chevy Blazer 1973-1985/Suburban 1976-1980;

For Chevy Monte Carlo 83-87/Oldsmobile Cutlass 78-88;

For Chevy Nova 75-79 / Chevy El Camino 70-87.

Please check the Fitment tab for the full list of compatible vehicles.

Radiator Features

ISO/IATF16949 Certified — Full Aluminum Radiator for Superior Cooling and Perfect Fit

This AA5052 aluminum radiator delivers maximum cooling efficiency, preventing premature engine failure. Its lightweight, high-heat-transferring aluminum with a tube and fin design increases surface area for efficient heat dissipation. This radiator replacement is 30%-45% more efficient than stock car radiators and boasts a larger coolant capacity, ensuring better performance and resistance to temperature surges, especially in racing applications.

Fan Specification

Maximum Fan CFM: 1730 cfm

Motor: 90W

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blades

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Shroud and Fans Features

The new design radiator fans come with AA5052 shroud which channels heat away from the engine. The shroud secures the fan blades, protecting vital engine components and ensuring smooth operation. With superior temperature management, this Chevrolet radiator keeps engine temperatures stable and within optimal levels.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

3. Additional with thermostat, professional matching advice, consider for every detail and needed.

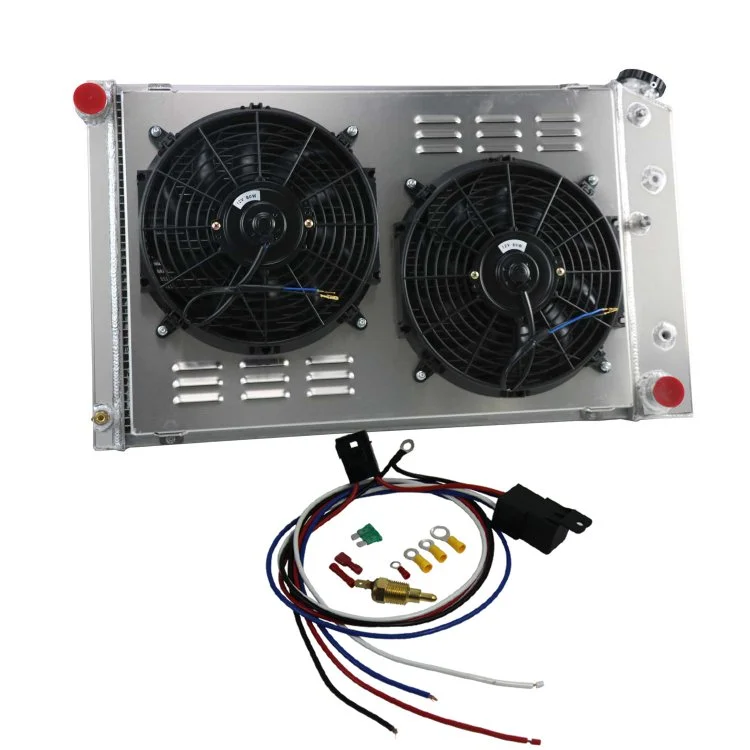

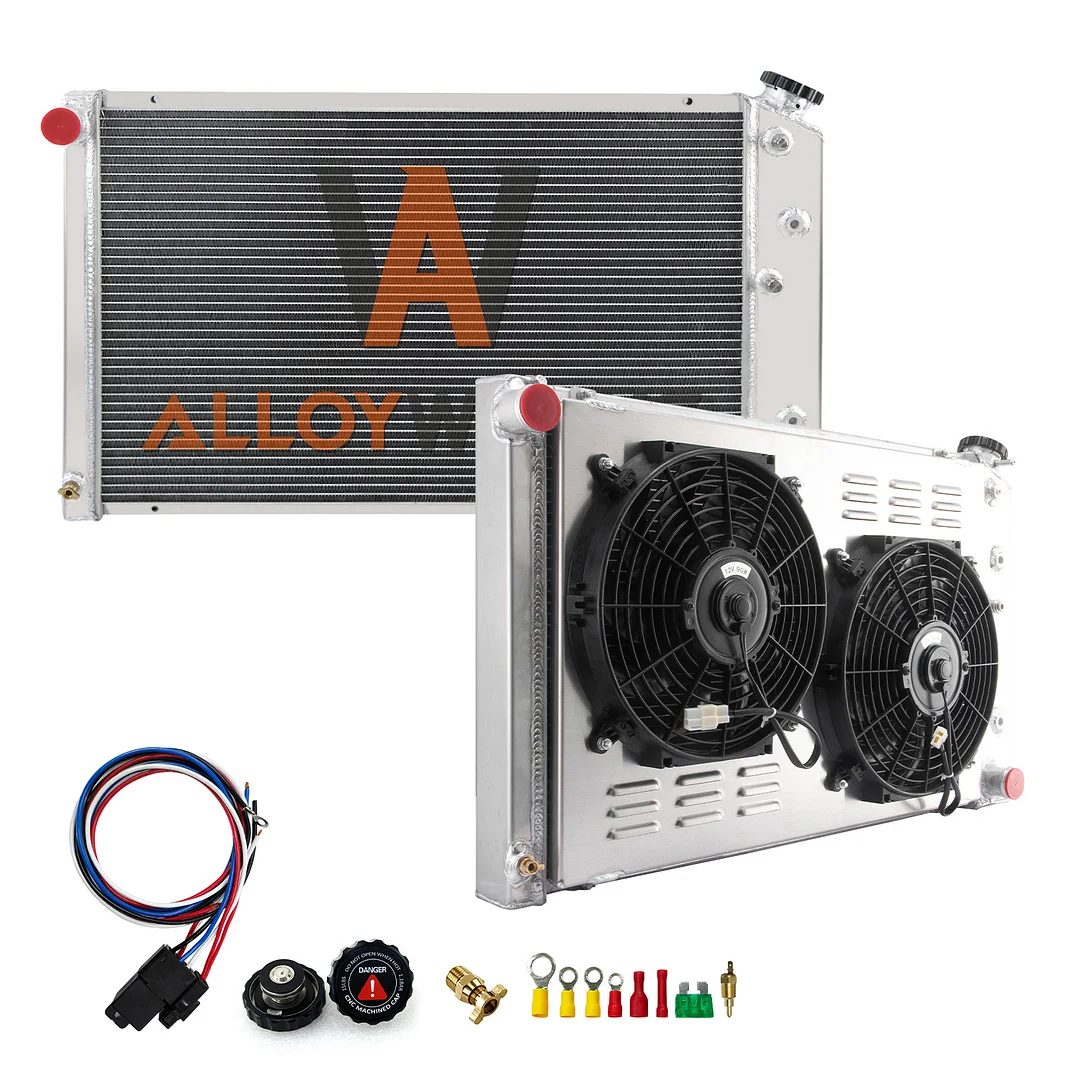

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

About AA5052 Aluminum Materials

Our Radiator is made of AA5052 aircraft aluminum, which is different from other T-3303 Series in the market. The AA5052 series Aluminum is much better than the T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum as it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness of scratching and corroding, and poor heat dissipation effect. If the T-3303 aluminum radiator is operated at high pressure and high temperature for a long time, the leaking problem will occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability, and cold workability and strength. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of vehicles and ships, hardware products, and electrical-appliance casings.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.
