4-Row of tubes Core Racing Design
High-Performance Racing Spec.
Core Size: 16-3/8" High x 17-1/4" Wide
Overall Size: 21-1/2" High x 19-5/8" Wide
Upper INLET: 1-1/2" located on the Passenger side.
Lower OUTLET: 1-3/4" located on Passenger side.
Transmission Cooler: ￠26×150×1/8-27NPT（T）
Mounting System: Bracket
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!
(Both top hose and bottom hose on Passeger side)

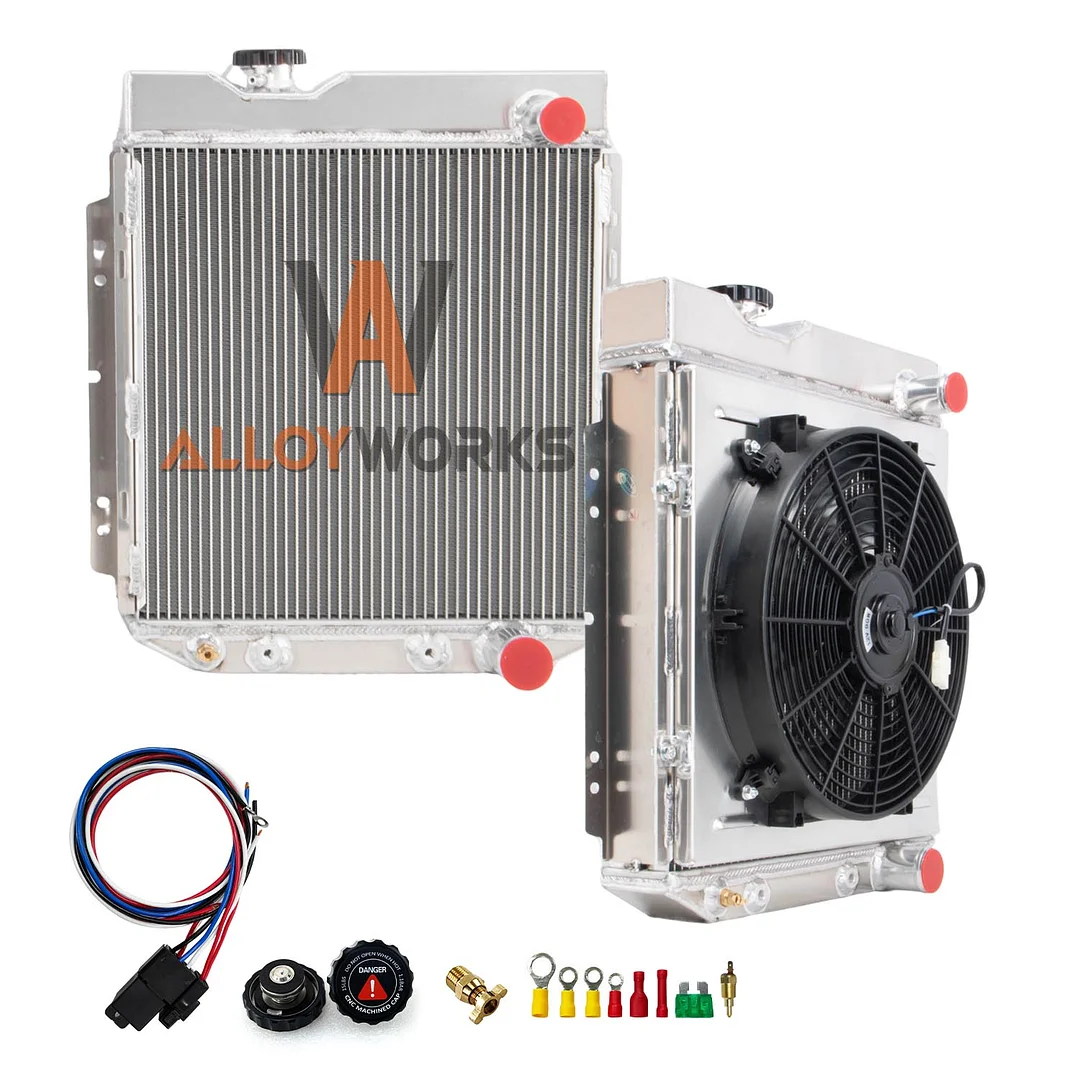

1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.
2. Brazed core technology to guarantee optimum performance and dependability.
3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable..
4. Billet Aluminum CNC machined fill neck is rugged and durable.
5. CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM-style brass petcock drains much better than other plastic ones.
7. Carefully crafted to exceptional OE standards for a precise fit.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and more resistant to temperature surges in racing applications.
Volt: 12v
Motor: 90W
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at the preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
The probe typically threads into the radiator, water outlet, or manifold.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.
Advanced Production Process
Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.
Leading-edge Technology
Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.
