Alloyworks 4 Row Radiator Shroud Fan For 1988-2000 GMC Chevy C/K 1500 2500 3500 5.7L 7.4L 34''Wide

Alloyworks 4 Row Radiator Shroud Fan For 1988-2000 GMC Chevy C/K 1500 2500 3500 5.7L 7.4L 34''Wide

RAD-CHEV-AL-440
$399.00
$459.00
Save 13%
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.

Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing

PLS NOTE:

This product is easy to buy wrong, please pay attention to check the size carefully to make sure it will meet your needs.Only fit 34'' wide core,17'' high core.

Radiator Size

4-Row of tubes Core Racing DesignHigh-Performance Racing Spec.

Core Size: 34"W x 17 1/4"H x 2.44''T

Overall Size: 40 5/8"W x 20 3/8"H x 5.9''T

Tank Dimensions: 3 1/4" X 18 1/2"

Inlet Hose Connection: 1 5/16" Driver Side

Outlet Hose Connection: 1 9/16" Passenger Side

Transmission Cooler: 1/2"-20UNF(Z)

Engine Oil Cooler: M20*1.5

OEM Style Brass Petcock Drain

CNC machined filler neck and cap

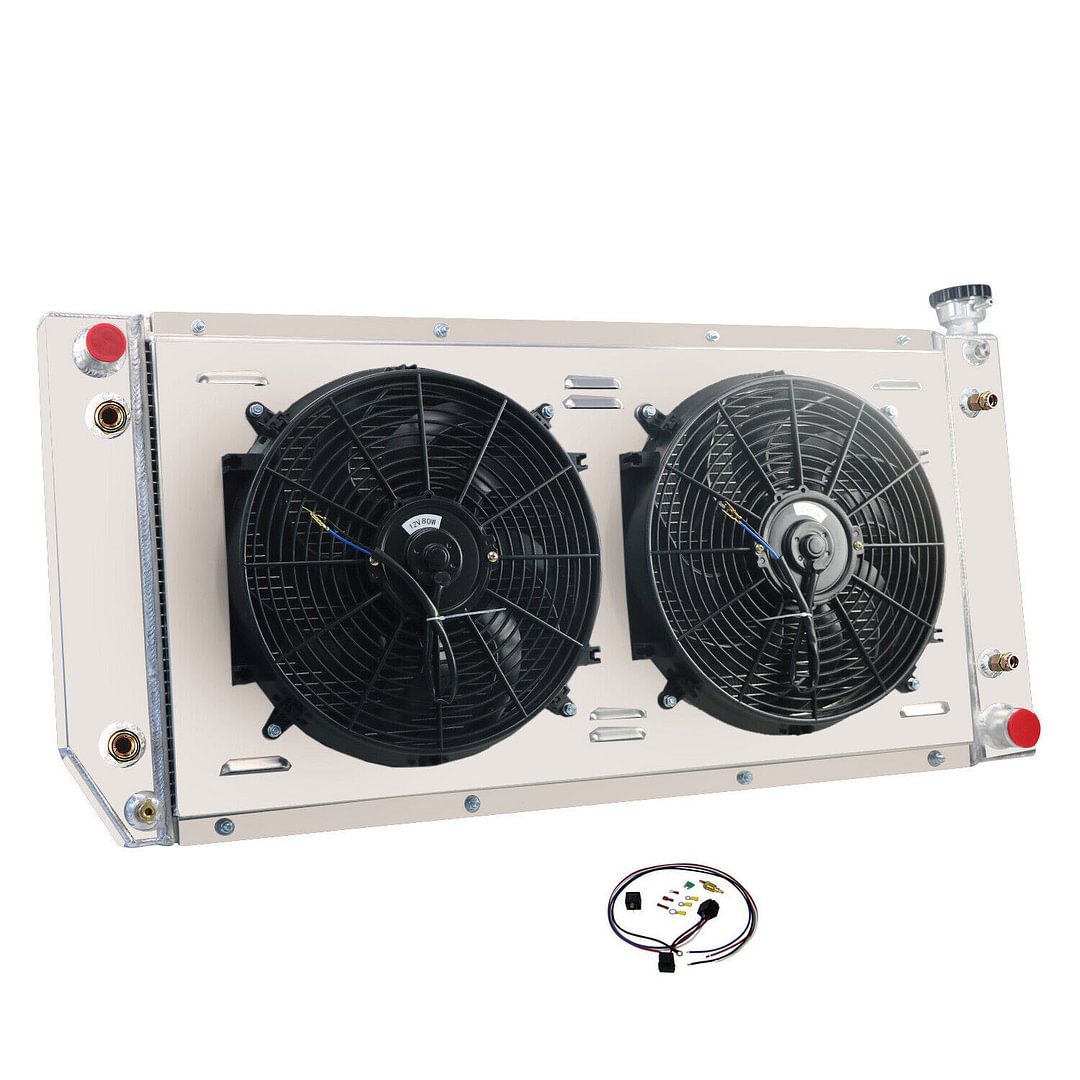

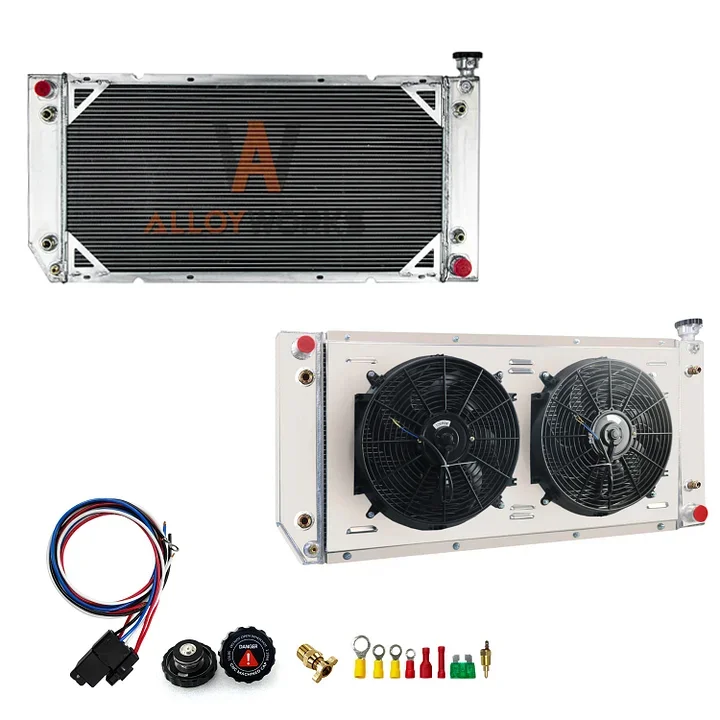

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 14" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 14" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Radiator Features

1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.

2. Brazed core technology to guarantee optimum performance and dependability.

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable..

4. Billet Aluminum CNC machined fill neck is rugged and durable.

5. CNC machined cap with Engraved craftsmanship, anodized treatment.

6. OEM-style brass petcock drains much better than other plastic ones.

7. Carefully crafted to exceptional OE standards for a precise fit.

This AA5052 Aluminum Radiator offers superior cooling efficiency to prevent engine failure. Its lightweight, high-heat transferring aluminum with a tube and fin design significantly increases surface area for better heat dissipation.

This 4-core aluminum radiator is 30%-45% more efficient than stock car radiators and holds more coolant, enhancing performance and temperature resilience, especially in racing. Ideal for the 2000 Chevy Silverado 1500 radiator and other Chevrolet radiators, it outperforms standard options with its advanced design.

Fan Specification

Volt: 12v

Motor: 90W

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 14.050”

Thickness (in): 2.500”

Number of Blades: 8 S-Type blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at the preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

The probe typically threads into the radiator, water outlet, or manifold.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
