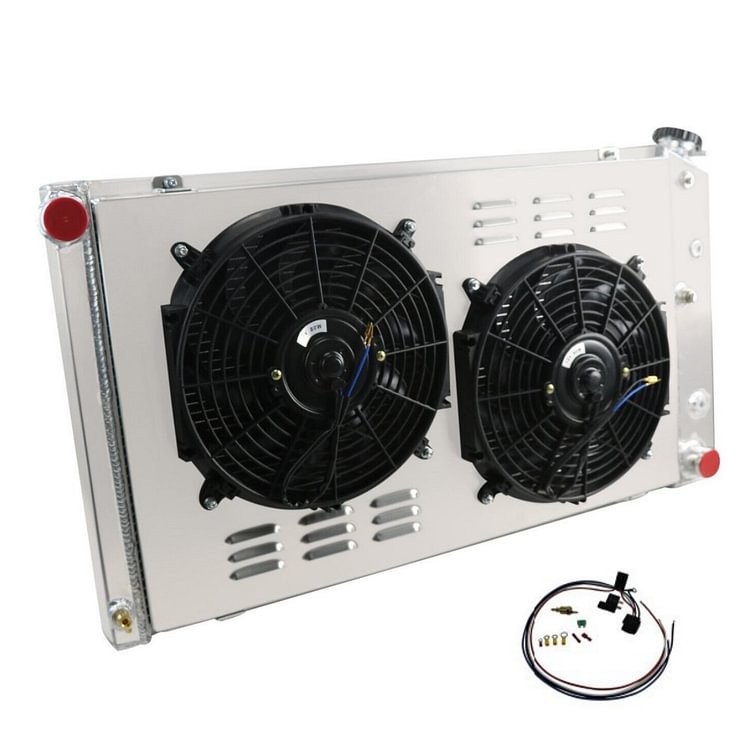

Alloyworks 4 Row Radiator with Shroud Fan For 1968-1990 Chevrolet Chevelle GTO Impala Caprice C10 C20

Alloyworks 4 Row Radiator with Shroud Fan For 1968-1990 Chevrolet Chevelle GTO Impala Caprice C10 C20

RAD-CHEV-AL-207
$359.00
$369.00
Save 3%
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

Core Size: 17" H x 28 1/4" W x 2 4/9''Thick

Overall Size: 18 5/8" H x 33" W x 6 1/9'' Thick

Upper inlet: 1 1/2" located on driver side.

Lower outlet: 1 1/2" located on passenger side.

Trans cooler: ￠32*215*G1/4(Z)

4-Row of tubes Core Racing Design

Core Material: AA5052 Aluminum

Tank Material: AA5052 Aircraft Grade Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Includes CNC machined filler neck and cap

OEM Saddle mount system

OEM Style Brass Petcock Drain.

Radiator Features:

This AA5052 aluminum radiator is engineered for maximum cooling efficiency, reducing the risk of premature engine failure. Its lightweight design and tube-and-fin structure greatly increase surface area for better heat dissipation. This radiator is 30%-45% more efficient than stock models and has a higher coolant capacity, making it ideal for car enthusiasts, especially for 1968 C10 radiators, ensuring your cooling system handles temperature surges in racing applications effectively.

1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable

4. Billet Aluminum CNC machined fill neck is rugged and durable

5. CNC machined cap with Engraved craftsmanship, anodized treatment.

6. OEM style brass petcock drain is much better than other plastic

Fan Specification

Maximum Fan CFM: 1730 cfm

Motor:90W

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

The new fan and AA5052 shroud efficiently direct heat away from the engine, ensuring stable temperatures and smooth operation. The shroud secures the fan, protecting other engine components. Proper maintenance of car radiators, especially aluminum radiators like the Chevrolet radiator, is essential for optimal engine performance and driving quality.

ISO/IATF16949 Certified — Full Aluminum Radiator for Superior Cooling and Perfect Fit

1. Shuttered design AA5052 fan shroud to guarantee airflow passes high efficiently. Make your engine bay perfect!

2. S-blade fans, push or pull type design, lightweight plastic durable material.

3. Additional with thermostat, professional matching advice, consider every detail and needed

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at a preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

The probe typically threads into the radiator, water outlet, or manifold.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

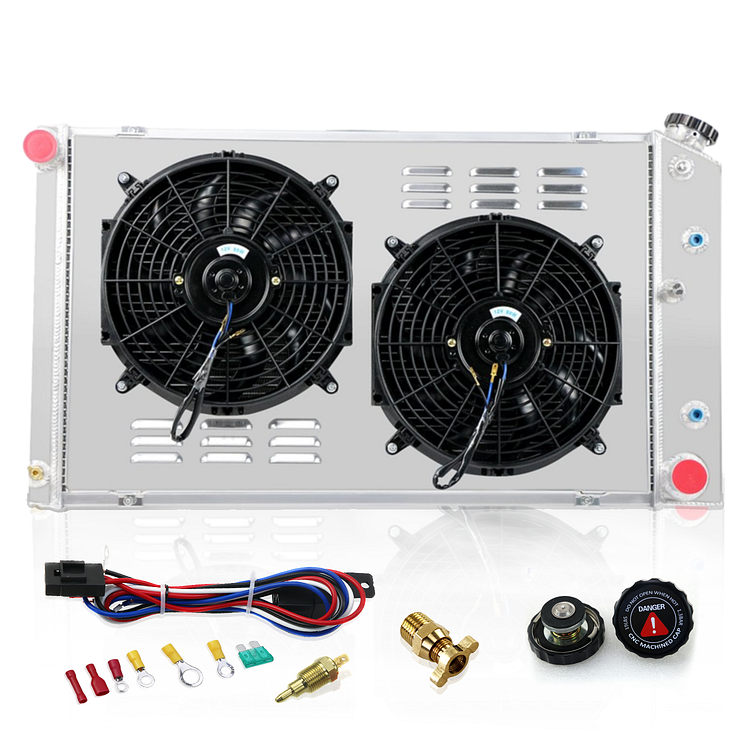

Package Include

1 X 4 Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit
