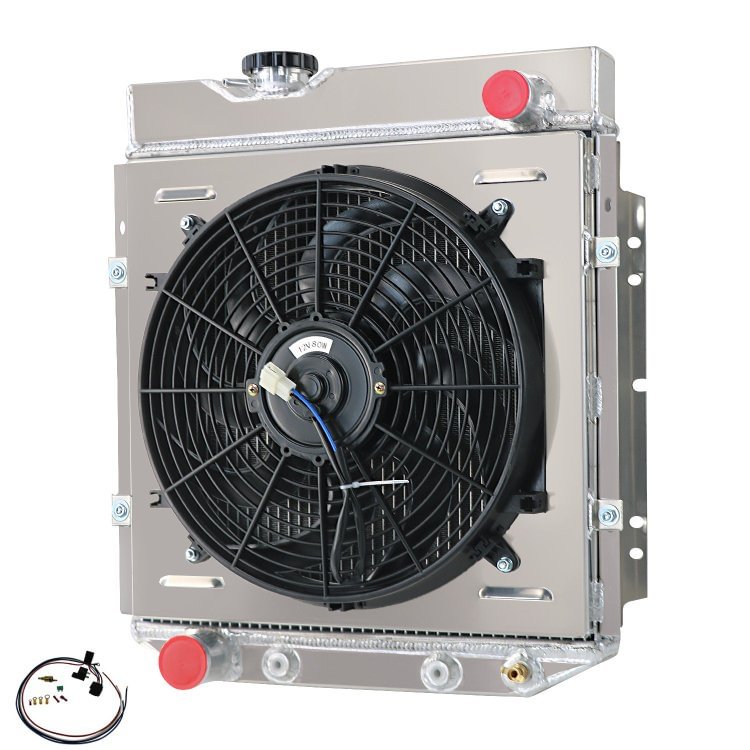

Alloyworks 4 Row Radiator Shroud Fan For 1965-1966 Ford Mustang 60-65 Falcon Ranchero AT

Alloyworks 4 Row Radiator Shroud Fan For 1965-1966 Ford Mustang 60-65 Falcon Ranchero AT

RAD-FORD-AL-115
$309.00
$329.00
Save 6%
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing

Important Notice: This radiator can be easily purchased incorrectly, so please ensure to check the inlet and outlet locations before making your purchase!

Radiator Size

4-Row of tubes Core Racing Design

High-Performance Racing Spec.

Core Size: 16-6/7'' W x 16-4/9'' H x 2.44''Thick

Overall Size: 19-3/5''W x 21-5/9'' H x 6.3'' Thick

Upper INLET: 1-1/2" located on the Passenger side.

Lower OUTLET: 1-3/4" located on Driver side.

Transmission Cooler: ￠26×150×1/8-27NPT（T）

Mounting System: Bracket

The Alloyworks 4-Row Mustang radiator with shroud and fan offers superior cooling for 1965-1966 Ford Mustang, 60-65 Falcon, and Ranchero AT models, enhancing engine performance and reliability.

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 14" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 14" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Radiator Features

ISO/IATF16949 Certified: Full Aluminum Radiator for Superior Cooling and Perfect Fit

1. Constructed from aircraft-grade AA5052 aluminum with a raw finish, ensuring extended durability.

2. Features brazed core technology for optimal performance and reliability.

3. 2mm thick AA5052 aluminum tanks and fittings provide exceptional strength and durability.

4. Rugged billet aluminum CNC-machined fill neck for enhanced durability.

5. CNC-machined cap with engraved craftsmanship and anodized finish.

6. Premium OEM-style brass petcock for superior drainage compared to plastic alternatives.

7. Meticulously engineered to OE standards for a precise and perfect fit.

This AA5052 Ford aluminum radiator offers 30%-45% better cooling efficiency than standard car radiators. Its lightweight tube and fin design increases surface area for superior heat dissipation.

With a larger coolant capacity than typical aluminum radiators, it ensures enhanced performance and greater resistance to temperature surges, perfect for racing applications.

Fan Specification

Volt: 12v

Motor: 90W

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 14.050”

Thickness (in): 2.500”

Number of Blades: 8 S-Type blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at the preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

The probe typically threads into the radiator, water outlet, or manifold.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.
