Fits:
1969 Chevy Chevy II 2.5L 153Cu. In. l4
1962-1967 Chevy Chevy II 3.2L 194Cu. In. l6
1964-1966 Chevy Chevy II 3.8L 230Cu. In. l6
1969 Chevy Chevy II 4.1L 250Cu. In. l6
Click here to view all compatible vehicles
Package Include:

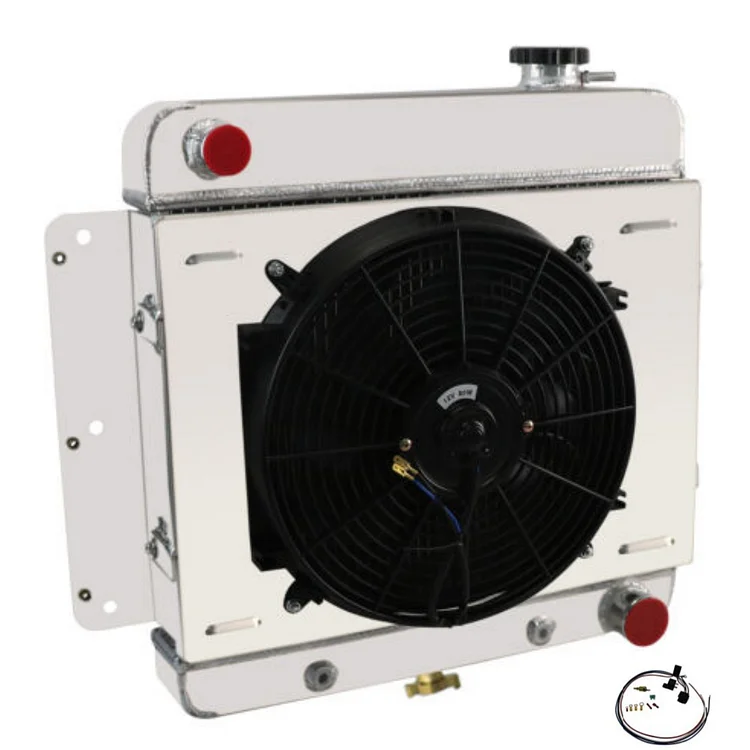

1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
RADIATOR SIZE:
Material: Full Aluminium
Core Row: ( 4 Row Core )
Core Dimension (H x W): 14 1/8 "x 18 1/8" x 2 4/9''Thick
Overall Dimension (H x W): 22 1/8" x 24 1/2" x 6 1/2''Thick
Hose Locations: IN: Driver / OUT: Passenger
Hose Fittings: IN: 1 1/4" - OUT: 1 3/4"
Trans Cooler: 1/2-20“ Straight Thread, G 1/4”
Mounting Type: Bracket Mount
OEM Style Brass Petcoke Drain
CNC machined filler neck and cap
FAN Specification:
Maximum Fan CFM: 1730 cfm
Motor:90W
Fan Diameter (in): 14.050"
Thickness (in): 2.500"
Number of Blades: 8 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Features:
1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Billet Aluminum CNC machined fill neck rugged and durable
5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6.Carefully crafted to exceptional OE standards for precise fit.
