For 1967-1970 Ford Mustang 390-428-429 Engines
For 1968-1970 Mercury Cougar XR-7 390-428-429 Engines
For 1967-1969 Ford Ranchero-Fairlane 390-429 Engines
For 1968-1969 Ford Torino 428 Engines
Both Automatic and Manual Transmission
Click here to view all compatible vehicles

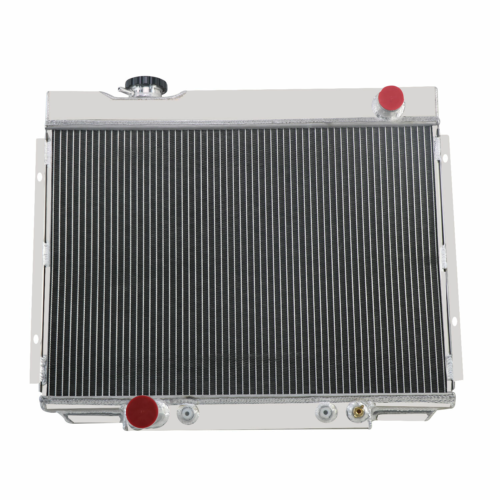

This Listing Is Including one Full Aluminum Radiator only (Contain CNC machined filler neck and cap)
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: T-5057 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Dimensions 16 x 24 1/4 x 2 3/4
Overall Dimensions 21 3/4" HIGH X 25 3/8" WIDE
Tank Size: 3 1/4 X 24 3/8 - Both
Inlet Hose Connection: 1 1/2 Passenger Side
Outlet Hose Connection: 1 3/4 Driver Side
Trans Cooler: 1/8-27"NPT
Mounting Type: Bracket Mount
FILLER NECK OFFSET TO DRIVER SIDE
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
100% Brand New Item T-5057 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
