3Row Radiator+2X14"Fan+Shroud for Chevy 08-13 Silverado 1500 GMC Yukon HUMMER H2
3Row Radiator+2X14"Fan+Shroud for Chevy 08-13 Silverado 1500 GMC Yukon HUMMER H2
2007-2013 Chevy Avalanche 5.3L 325Cu. In. V8
2007-2009 Chevy Avalanche 6.0L 364Cu. In. V8
2000, 2004-2013 Chevy Silverado 1500 4.3L(262Ci) V6 / 4.8L(294Ci), 5.3L(325Ci) V8
2003-2009 Chevy Silverado 1500 6.0L 364Cu. In. V8
2001-2006 Chevy Silverado 1500 HD 6.0L 364Cu. In. V8
1999-2000 Chevy Silverado 2500 5.3L 325Cu. In. V8
2002 Chevy Silverado 2500 5.7L 350Cu. In. V8
1999-2004 Chevy Silverado 2500 6.0L 364Cu. In. V8
2001-2010 Chevy Silverado 2500 HD 6.0L 364Cu. In. V8 / 6.6L 403Cu. In. V8
2001-2006 Chevy Silverado 2500 HD 8.1L 496Cu. In. V8
2004-2006 Chevy Silverado 3500 5.7L 350Cu. In. V8
2001-2006 Chevy Silverado 3500 6.0L(364Ci), 6.6L(403Ci), 8.1L(496Ci) V8
2007-2010 Chevy Silverado 3500 HD 6.0L 364Cu. In. V8
2000-2014 Chevy Suburban 1500 5.3L 325Cu. In. V8
2000-2001 Chevy Suburban 1500 5.7L 350Cu. In. V8
2006-2009,2013 Chevy Suburban 1500 6.0L 364Cu. In. V8
2000,2001-2006,2010-2012 Chevy Suburban 2500 6.0L 364Cu. In. V8
2001-2006 Chevy Suburban 2500 8.1L 496Cu. In. V8
2000-2008 Chevy Tahoe 4.8L 294Cu. In. V8
2000-2014 Chevy Tahoe 5.3L 325Cu. In. V8
2000 Chevy Tahoe 5.7L 350Cu. In. V8
2009 Chevy Tahoe 6.2L 376Cu. In. V8
2008 2009,2011-2013 Chevy Tahoe 6.0L 364Cu. In. V8
2010 GMC Sierra 5.3L 325Cu. In. V8
2008-2010 GMC Sierra 6.2L 376Cu. In. V8
2001-2013 GMC Sierra 1500 4.3L(262Ci) V6 / 4.8L(294Ci), 5.3L(325Ci) V8
2001-2009,2011 GMC Sierra 1500 6.0L 364Cu. In. V8
2008,2010-2013 GMC Sierra 1500 6.2L 376Cu. In. V8
2006 GMC Sierra 1500 HD 6.0L 364Cu. In. V8
1999-2000 GMC Sierra 2500 5.3L 325Cu. In. V8
1999-2004 GMC Sierra 2500 6.0L 364Cu. In. V8
2003-2010 GMC Sierra 2500 HD 6.0L 364Cu. In. V8
2006-2010 GMC Sierra 2500 HD 6.6L 403Cu. In. V8
2006 GMC Sierra 2500 HD 8.1L 496Cu. In. V8
2001-2006 GMC Sierra 3500 6.0L(364CI), 6.6L(403CI), 8.1L(496CI) V8
2007-2011 GMC Sierra 3500 HD 6.0L(364CI), 6.6L(403CI) V8
2000-2006 GMC Yukon 4.8L 294Cu. In. V8
2000-2014 GMC Yukon 5.3L 325Cu. In. V8
2001-2006,2008-2013 GMC Yukon 6.0L 364Cu. In. V8
2007-2014 GMC Yukon 6.2L 376Cu. In. V8
2001-2014 GMC Yukon XL 1500 5.3L 325Cu. In. V8
2001-2009 GMC Yukon XL 1500 6.0L 364Cu. In. V8
2007,2010-2014 GMC Yukon XL 1500 6.2L 376Cu. In. V8
2000-2006,2008-2013 GMC Yukon XL 2500 6.0L 364Cu. In. V8
2003 GMC Yukon XL 2500 8.1L 496Cu. In. V8
2002,2005 Cadillac Escalade 5.3L 325Cu. In. V8
2002-2003,2009-2013 Cadillac Escalade 6.0L 364Cu. In. V8
2009-2013 Cadillac Escalade 6.2L 376Cu. In. V8
2003-2006 Cadillac Escalade ESV 6.0L 364Cu. In. V8
2007-2014 Cadillac Escalade ESV 6.2L 376Cu. In. V8
2004-2005 Cadillac Escalade EXT 6.0L 364Cu. In. V8
2008-2009 Cadillac Escalade EXT 6.2L 376Cu. In. V8
2003,2005-2007 Hummer H2 6.0L 364Cu. In. V8
2008-2009 Hummer H2 6.2L 376Cu. In. V8

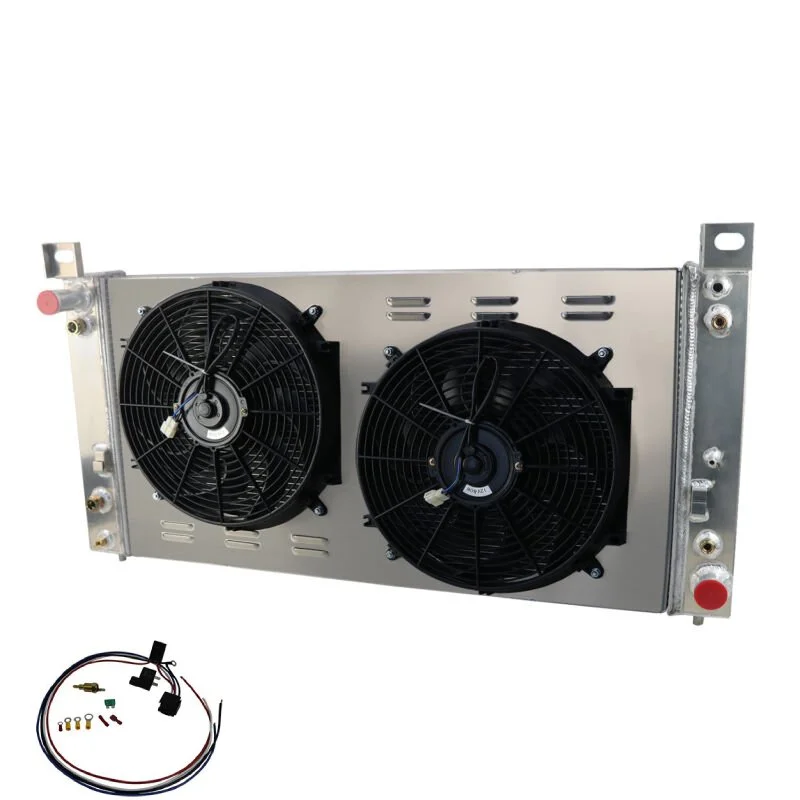

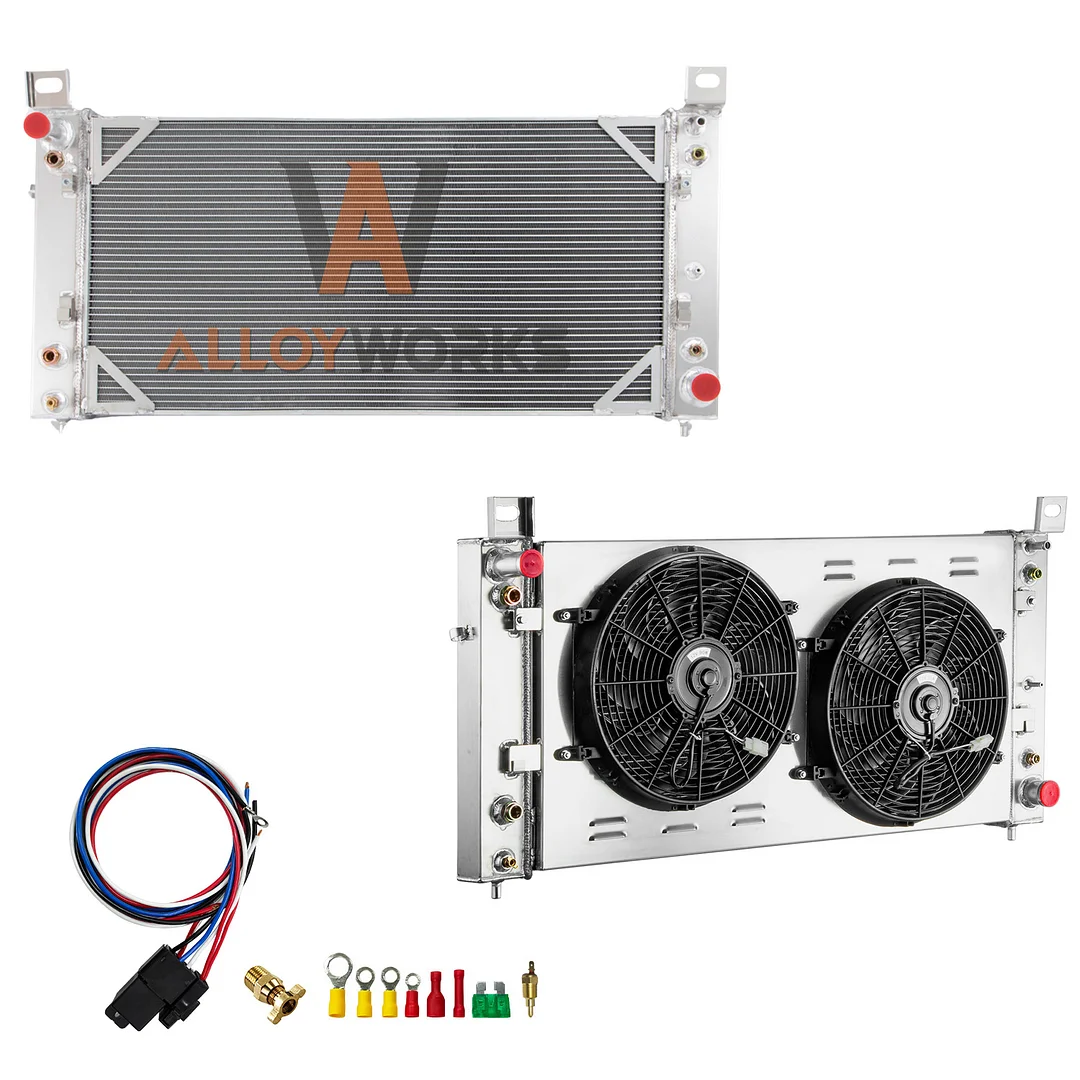

1 X 3-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
2 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
High Performance Racing Spec.
3-Row of tubes Core Racing Design
CORE DIMENSIONS : 34"W X 17 1/4"HX 2.0"T
OVERALL DIMENSIONS：40 4/5"W X 21 1/2"H X 5"T
INLET HOSE CONNECTION: 1 5/16" DRIVER SIDE
OUTLET HOSE CONNECTION: 1 9/16" PASSENGER SIDE
TRANSMISSION COOLER: φ26*292*5/8-18UNF(Z) (Passenger Side)
ENGINE OIL COOLER: φ26*292*M20*1.5 (Driver Side)
Please notice that this item has Engine Oil Cooler and Transmission Oil Cooler, the Core length is 34''
Diameter : 14'' (Blade to Blade)
Voltage: DC 12 Volts
Number of Blades: 8 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2250cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Fan Thickness: 2.64"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Reasons for choose our AA5052 Aluminum Radiator：
1.Our Radiator is made of AA5052 aircraft aluminum, AA5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold
3. 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
AA5052 Aluminum Shroud+Fan：
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2.S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
