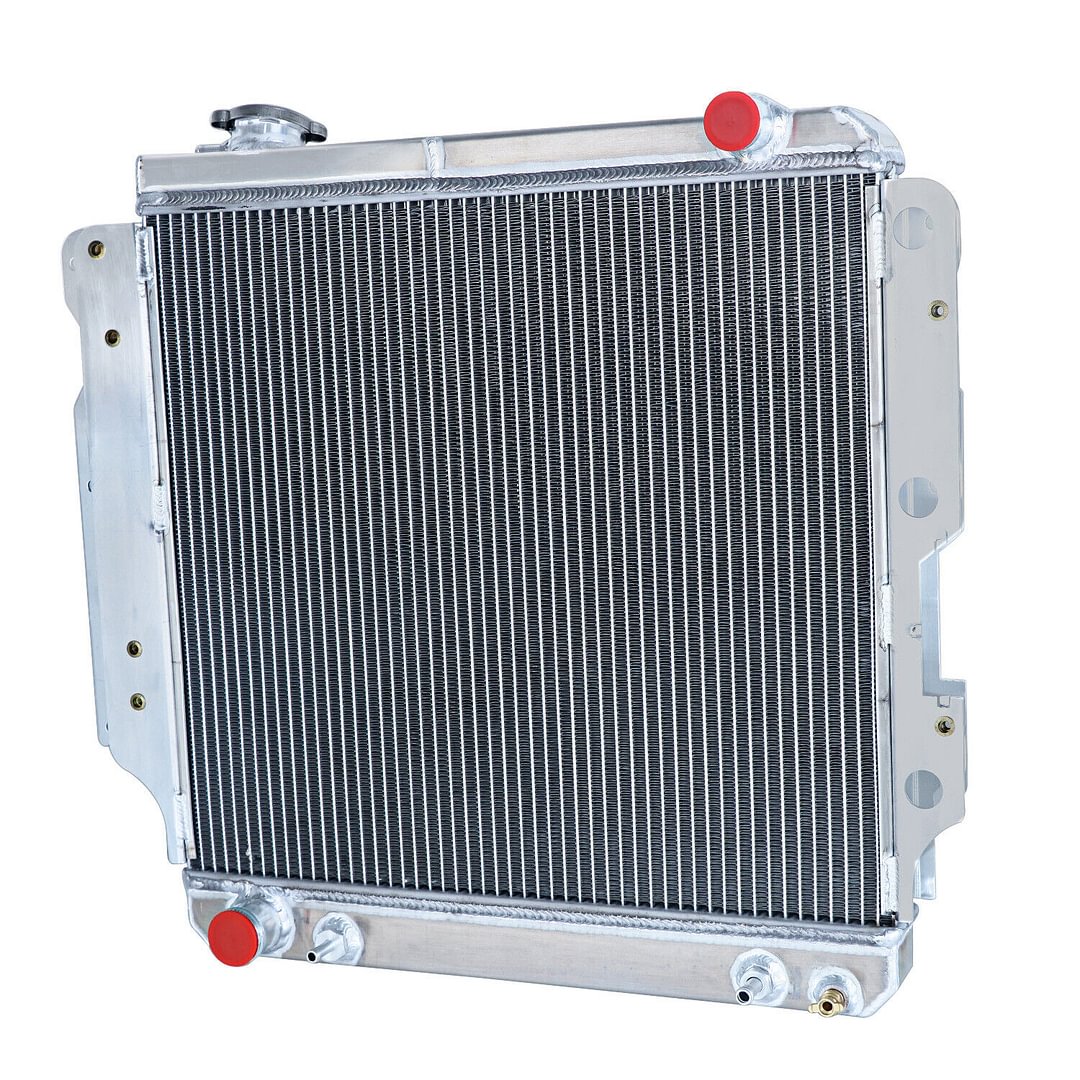

Alloyworks 3 Rows Radiator For 1987-2006 Jeep Wrangler YJ / TJ 2.4L 2.5L 4.0 4.2L

Alloyworks 3 Rows Radiator For 1987-2006 Jeep Wrangler YJ / TJ 2.4L 2.5L 4.0 4.2L

WH2101D-BN
$149.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

Core Size: 18 1/2 " height x 20 " width

Overall Dimensions: 23 3/8"  height  25 3/4" width

Inlet Hose Connection: 1 1/4 " Passenger Side

Outlet Hose Connection: 1 1/2 " Driver Side

Transmission Oil Cooler: ¢26×305×M16*1.5(Z)

Package Include

1 X 3-Row Aluminum Radiator

Package Include

1 X 3-Row Aluminum Radiator

Radiator Features

• Tank Material: AA5052 Aircraft Grade Aluminum.

• Higher Density Core: cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators sold.

High-Performance Racing Spec.

3-Row of tubes Core Racing Design.

This radiator is made of AA5052 aircraft aluminum,5052 Aluminum's major alloying element is magnesium, which has a higher strength and greater corrosion resistance (including to salt water).

14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators. AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high-efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI, That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.

.

The radiator's core is welded in a vacuum brazing furnace, with no epoxy. The radiator is 100% welded by TIG. Stronger and higher Capacity for Coolant than OEM units, Made of High-Quality Full A5052 Aluminum Construction. This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
