ONLY FOR 1967-1972 CHEVY/GMC PICKUP

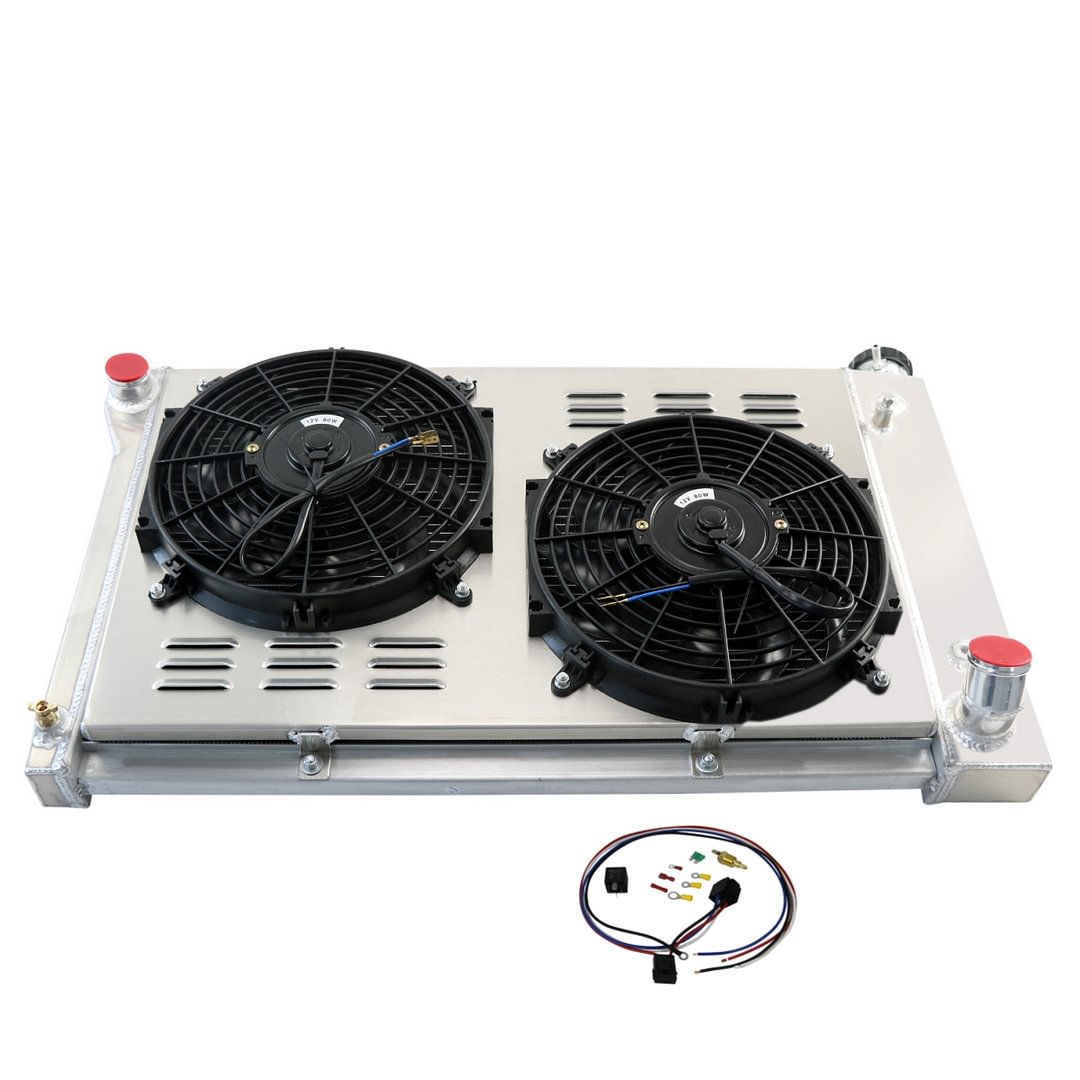

This Listing Is Including:
1 X 3-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
2 X 12" Fan (Includes mounting kits)
1 X Thermostat Relay Kit
This Radiator Size:
Material:AA5052 Aluminum
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Tank Material: AA5052 Aircraft Grade Aluminum
Core Dimension (H x W): 16.1'' H x 26.3'' W x 1.73'' Thick
Overall Dimension (H x W): 19.1''H x 31.89''W x 5.91'' Thick
Upper inlet: 1 1/2" located on driver side.
Lower outlet: 1 3/4" located on passenger side.
Auto trans cooler: ¢26×305×G1/4(Z)
OEM Style Brass Petcock Drain
CNC machined filler neck and cap
This radiator is easy to buy wrong, please check the size before purchase!
FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.Made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3.AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators, throws off much more heat.
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
