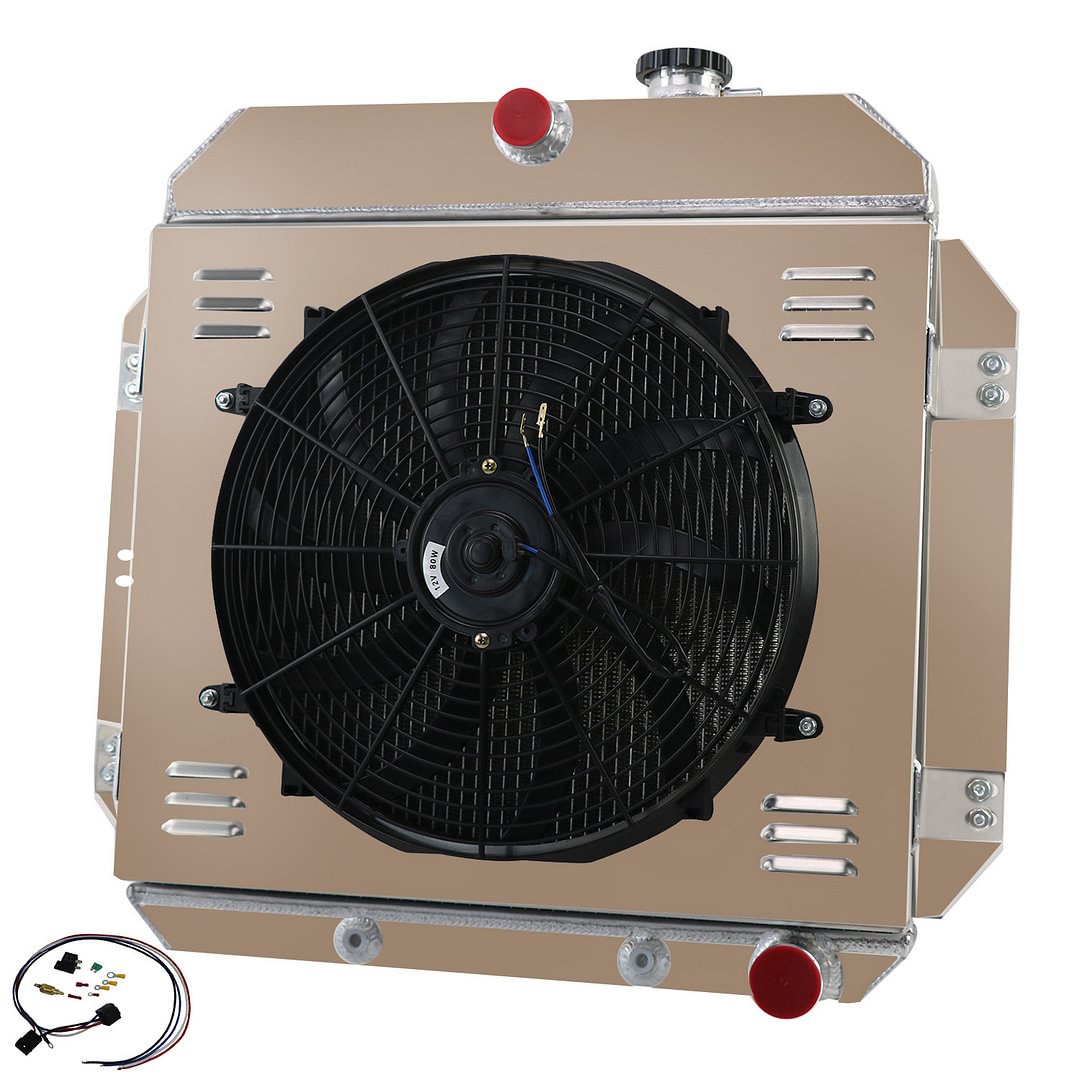

Alloyworks 3 Rows Aluminum Radiator with Shroud and Fan and Relay For 1960-1962 Chevy C10 C20 C30 Pickup C10 Panel L6 V8-120W EXTREME COOLING 25" Height x 26 5/8" Width

Alloyworks 3 Rows Aluminum Radiator with Shroud and Fan and Relay For 1960-1962 Chevy C10 C20 C30 Pickup C10 Panel L6 V8-120W EXTREME COOLING 25" Height x 26 5/8" Width

WH6062DZFSXJ120W-BN
$275.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1960-1962 Chevy C10/C30 Panel 3.9L 235Cu. In. l6
1960-1962 Chevy C10/C20/C30/K10 Pickup 3.8L 235Cu. In. l6 and 4.6L 283Cu. In. V8
1961 1962 Chevy C10/C20/C30/K10 Pickup 4.3L 261Cu. In. l6 and 5.7L 348Cu. In. V8
1960 1961 Chevy K20 Pickup 3.8L 235Cu. In. l6 and 4.6L 283Cu. In. V8
1961 Chevy K20 Pickup 4.3L 261Cu. In. l6
1960 Chevy K20 Pickup 5.7L 348Cu. In. V8
1960-1962 Chevy Suburban 3.8L 235Cu. In. l6 and 4.6L 283Cu. In. V8
1961 1962 Chevy Suburban 4.3L 261Cu. In. l6
1960 1961 Chevy Suburban 5.7L 348Cu. In. V8

The motor of this product is 120W, which has stronger power.


Configuration:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Dimensions: 18 7/8" High x 21 3/4" Wide
Overall Dimensions: 25" High x 26 5/8" Wide x 6.5''T
Upper inlet: 1 1/2" located in ccheck.
Lower outlet: 1 3/4" located on passenger side
Trans Cooler: YES
Mounting Type: Bracket Mount
OEM style brass petcock drain.
Please Check the Size Before You Buy!

Fan Specification:
No load Speed (Revolutions Per Minute) : 3000 RPM
load Speed (Revolutions Per Minute) : 1860 RPM
Voltage: 12V
Watts: 120W


The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality AA5052 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.

Aluminum plate is pressed, high quality and durable.



THE PROBLEM WE WILL HELP YOU SOLVED OUT
