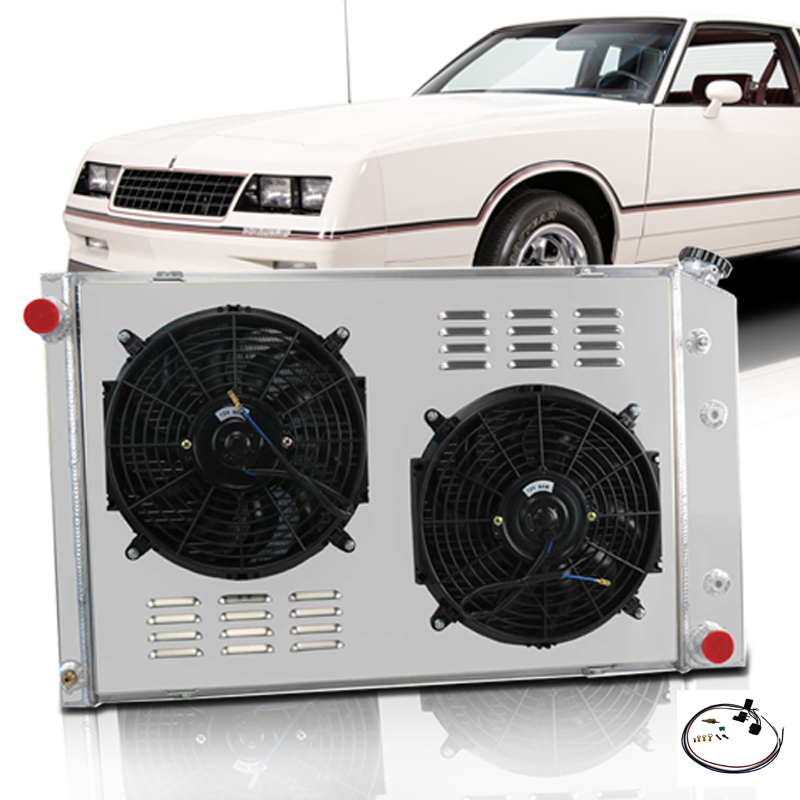

Alloyworks 3 Row Radiator+Shroud Fan For 1973-90 CHEVY GMC C/K C10 C20 C30 K10 Pickup

Alloyworks 3 Row Radiator+Shroud Fan For 1973-90 CHEVY GMC C/K C10 C20 C30 K10 Pickup

WH716DZFSXJ90W-BN
$259.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
We're currently out of stock. Get notifed by email when this product available
please input correct email
Notify Me
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

Core Size:19" H x 28-1/2" W x 1.73'' T

Overall Size:20-1/4" H x 33-1/4" W x 5.9'' T

Upper Inlets:1 1/2" located on the driver side

Lower Outlets:1 1/2" located on the passenger side

Transmission Oil Cooler:￠32×215×G1/4(Z)

Row: 3 Row Core

Material: AA5052 Aluminum

Radiator Cap: included

Core and Tank: AA5052 Aluminum

CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar

OEM Style Brass Petcock Drain.

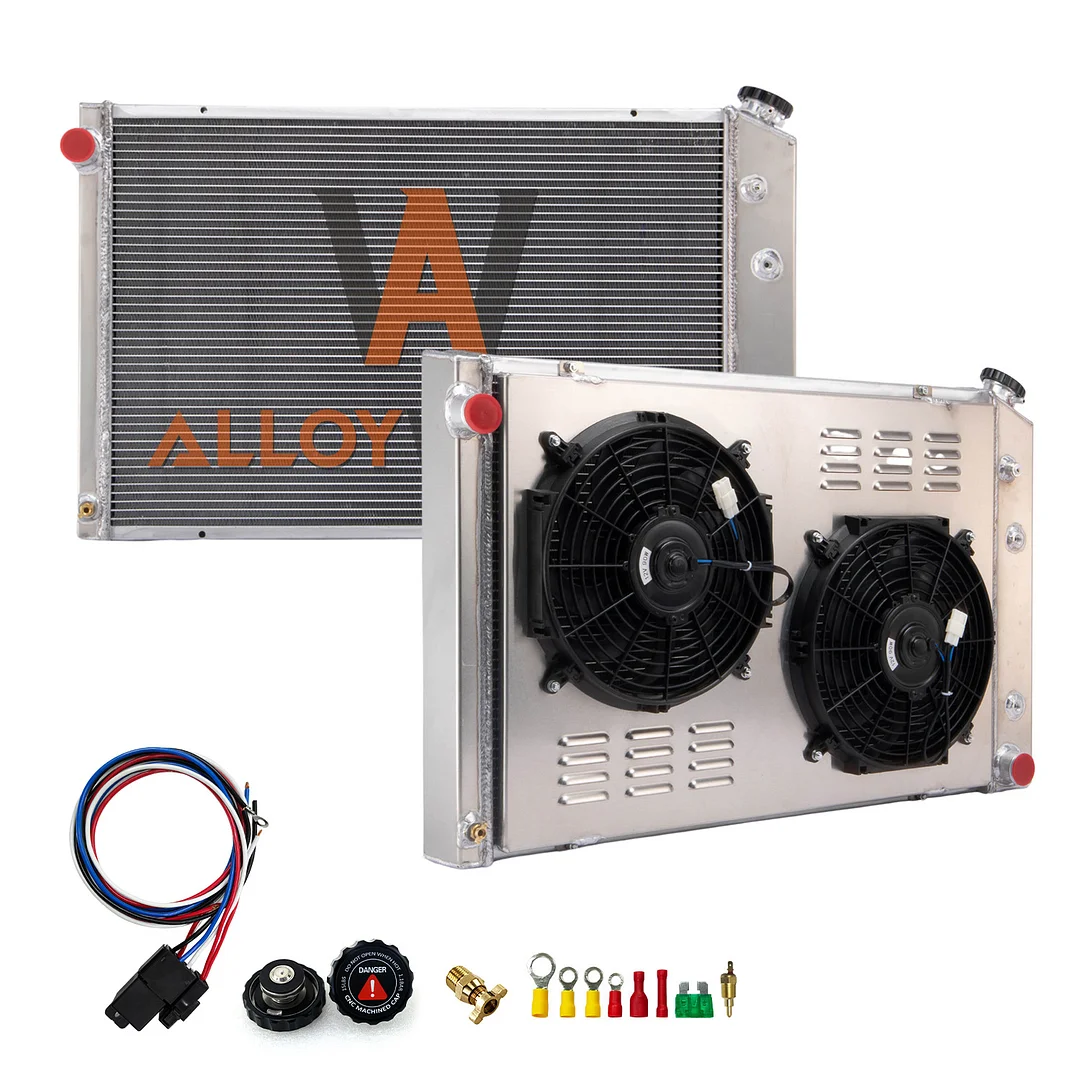

Package Include

1 X 3 Row of tubes Full AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Stay Cooling Fans (Includes fans mounting kits)

1 X Thermostat Kit

Package Include

1 X 3 Row of tubes Full AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Stay Cooling Fans (Includes fans mounting kits)

1 X Thermostat Kit

Radiator Features

The Alloyworks 3 Row Radiator with Shroud Fan is a top-tier upgrade for 1985 C10 radiators and other chevrolet radiator needs. This aluminum radiator and fan combo is engineered to outperform standard car radiators, providing enhanced cooling efficiency and durability. Designed specifically for the C10, it ensures optimal heat dissipation, making it ideal for heavy-duty use. Whether you're restoring a classic or looking for a reliable radiator replacement, this product guarantees your engine remains cool under pressure.

Fan Specification

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.05"

Motor: 90W

Thickness (in): 2.5"

Number of Blades: 10 S-Type blades

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with a raw aluminum finish.
Brazed core technology to guarantee optimum performance and dependability.
All AA5052 Aluminum 2mm thick tanks and fittings to ensure it's hard and durable.
The Billet Aluminum CNC machined fill neck is rugged and durable.ergonomic design CNC machined cap with Engraved craftsmanship and anodized treatment.
OEM-style brass petcock drains much better than other plastic ones.
Carefully crafted to exceptional OE standards for a precise fit.No Fitting Instructions Supplied.Professional Installation is Highly Recommended!Full set in a box and 100% brand new.
Thermostat Kit Installation

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at a preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run fans & pull air in through the radiator.
