Click here to view all compatible vehicles

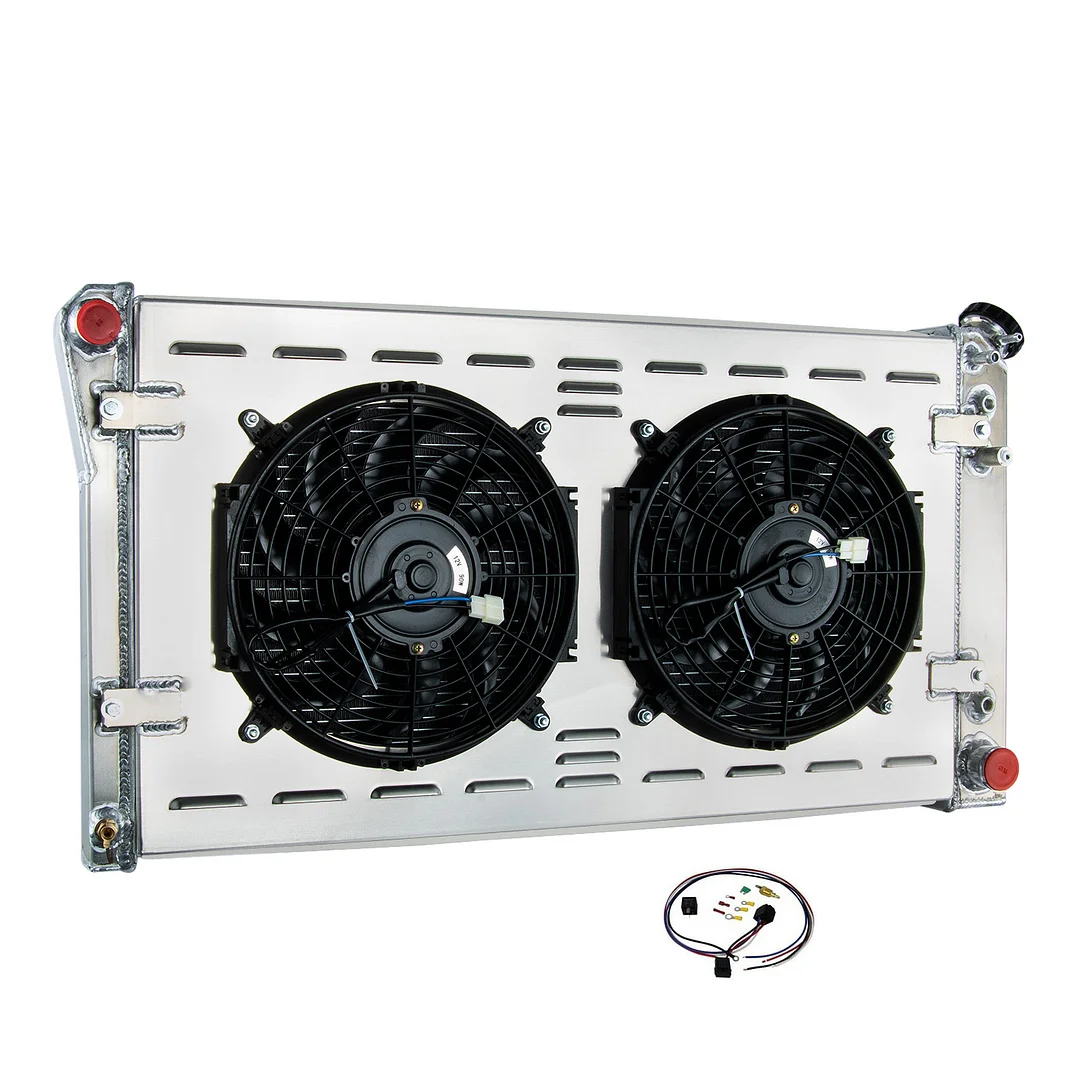

Package included:
1 X 3-ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP
1 X AA5052 Aluminum Shroud
2 X 12" 90W Fan
1 X Thermostat Temperature Switch Relay Kit
Radiator Configuration:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Tank Material: AA5052 Aircraft Grade Aluminum
Core Size: 30-1/2" WIDE x 17" HIGH
Overall Size: 36 1/4" WIDE X 18 5/8" HIGH
Inlet Hose Connection: 1-5/16"
Outlet Hose Connection: 1-9/16"
Radiator Cap: CNC Precision Machined Radiator Cap
Radiator Drain Plug: OEM Style Brass Petcock Drain.
WILL FIT AUTOMATIC OR MANUAL TRANSMISSIONS
Fan Specification:
Diameter: 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2150cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.
