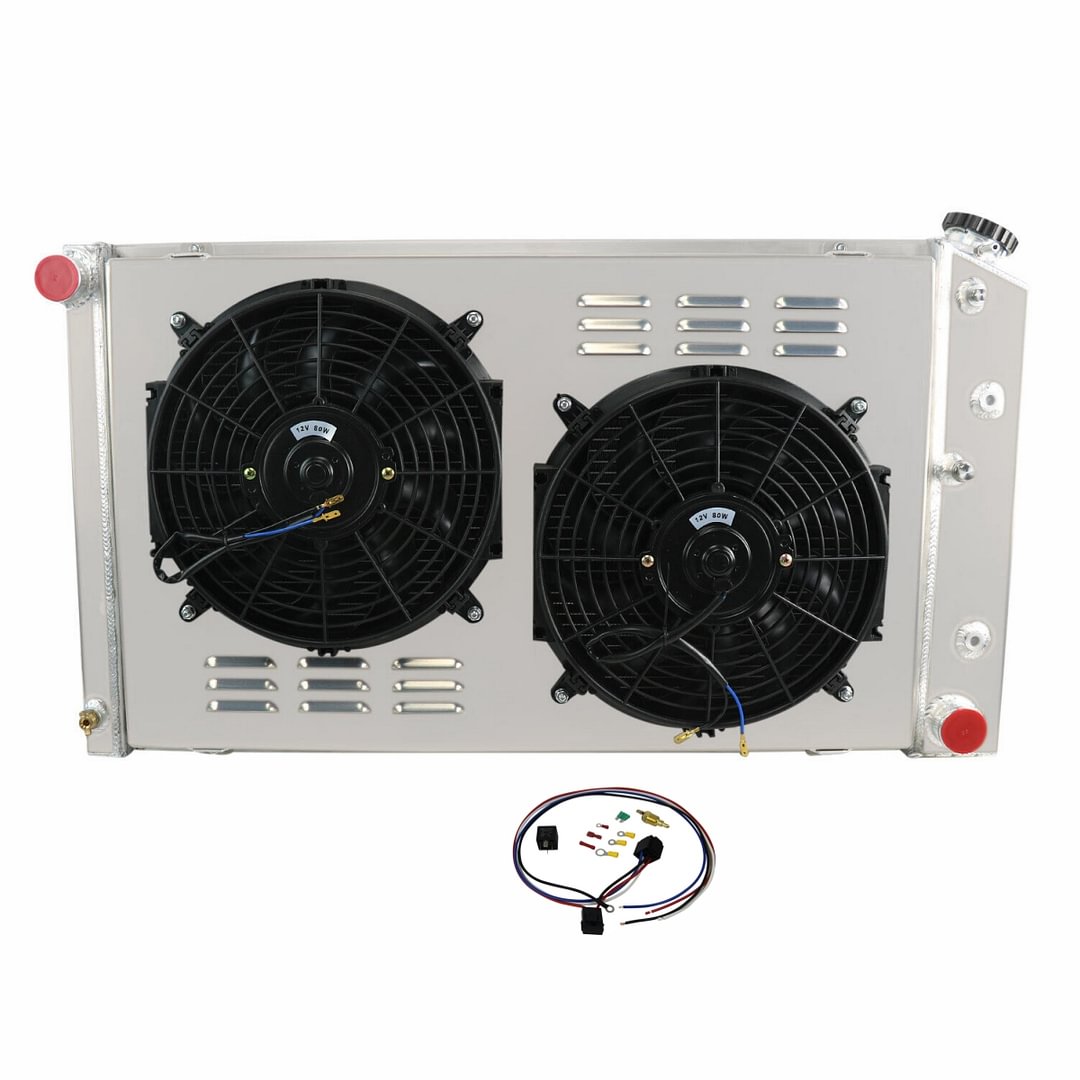

3 Row Radiator+Shroud Fan For 1978-1987 Chevy C/K C10 C20 Monte Carlo GMC-90w

3 Row Radiator+Shroud Fan For 1978-1987 Chevy C/K C10 C20 Monte Carlo GMC-90w

WH162DZFSXJ90W-BN
$249.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

3-Row of tubes Core Racing Design

Core Dimensions: 16.9" H x 26.2" W

Overall Dimensions: 18.5" H x 31.7" W

Inlet Diameter: 1.5"

Outlet Diameter: 1.6"

Transmission Oil Cooler: φ32*215*G1/4（Z)

Please check the size carefully before purchase.

This AA5052 Aluminum Radiator is designed to deliver maximum cooling efficiency, helping to prevent premature engine failure. Its lightweight and high-heat-transferring aluminum features a tube and fin design that significantly increases the surface area, allowing for more efficient heat dissipation. This AA5052 Aluminum Radiator is at least 30% to 45% more efficient than stock radiators. Most importantly, it boasts a much larger coolant capacity than stock options, ensuring that your cooling system operates more efficiently and can better withstand temperature surges in racing applications.

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Fan Specification

Maximum Fan CFM: 1730 cfm

Motor: 90W

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blades

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

AA5052 Aluminum Shroud and Fans

The New Design fan and the AA5052 fan shroud effectively channel heat away from the engine compartment instead of pushing it towards the front of the engine. The fan shroud houses the fan blades, securing them in place and protecting other engine components that could disrupt the engine's smooth operation. With excellent temperature management, it stabilizes allowable engine temperature levels.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

3. Additional with thermostat, professional matching advice, consider for every detail and needed.

Thermostat Kit Installation:

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

About "AA5052" Aluminum Materials

Our Radiator is made of AA5052 aircraft aluminum, which is different from other T-3303 Series in the market. The AA5052 series Aluminum is much better than the T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum as it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness of scratching and corroding, and poor heat dissipation effect. If the T-3303 aluminum radiator is operated at high pressure and high temperature for a long time, the leaking problem will occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability, and cold workability and strength. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of vehicles and ships, hardware products, and electrical-appliance casings.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Fan Specification

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
