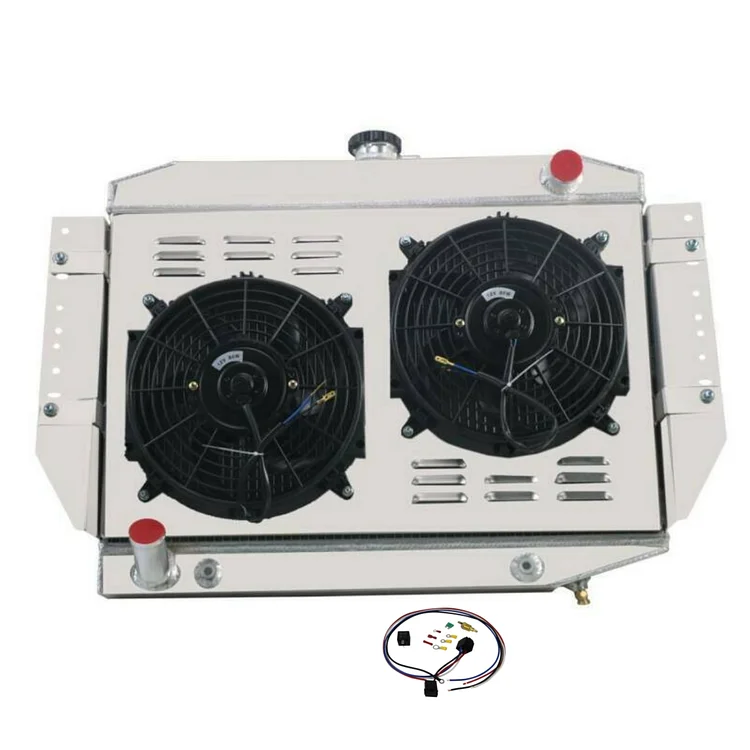

3 Row Radiator+Shroud Fan for 1972-79 Jeep Wagoneer Cherokee
3 Row Radiator+Shroud Fan for 1972-79 Jeep Wagoneer Cherokee
1974-1979 Jeep Cherokee 5.9L 360Cu. V8
1972-1973 Jeep J-2500/J-2600 5.9L 360Cu. V8
1974-1978 Jeep J10 5.9L 360Cu. V8
1974 Jeep Cherokee/J10/J20/Wagoneer 6.6L 401Cu. V8
Click here to view all compatible vehicles
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 10" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
3 Row of tubes Core Racing Design
Core Dimensions: 15 7/8" x 26"
Overall Size: 22 1/8 x 30 5/8 x 2 3/4
Inlet Hose Connection: 1 1/2 Passenger Side
Outlet Hose Connection: 1 1/2 Driver Side
Radiator Cap Included: Yes
Transmission Oil Cooler: Yes 1/8,27npt
Mounting Type: Bracket Mount
All aluminum core and tank.
The tank is welded by TIG.
OEM Style Brass Petcock Drain
CNC Machined Filler Neck and Cap
WILL FIT AUTOMATIC OR MANUAL TRANSMISSIONS
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050
Thickness (in): 2.500
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe
Probe typically threads into radiator, water outlet or manifold.
RED wire: connect directly to battery.
WHITE wire: ignition switch power source.
BLACK wire: connect thermos switch.
BLUE wire: connect the Fans.
