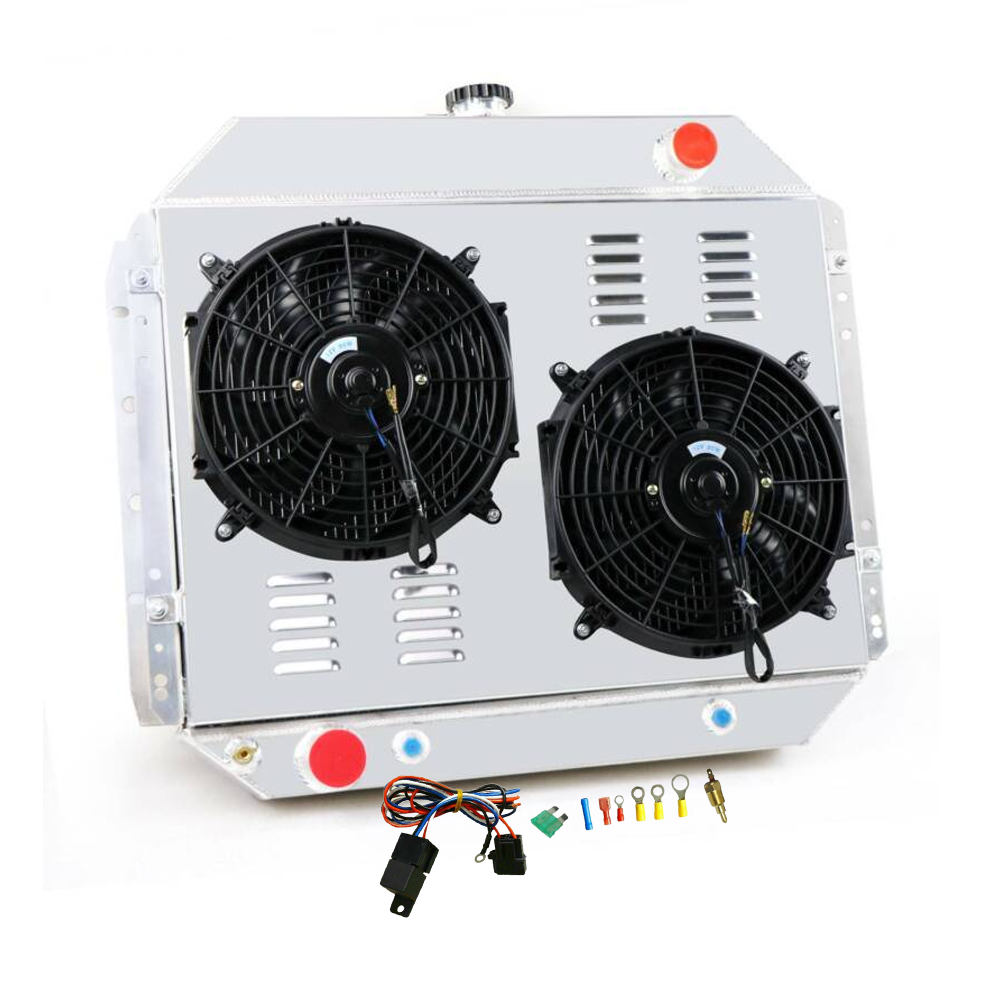

Alloyworks 3 Row Radiator Shroud Fan For 1966-1979 Ford F150 F250 F350 Bronco Truck

Alloyworks 3 Row Radiator Shroud Fan For 1966-1979 Ford F150 F250 F350 Bronco Truck

WH433DZFSXJ90W-BN
$279.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

3-Row Core

Core Size: 19.25'' Height x 26.375'' Width

Overall Size: 26.375'' Height x 29.5'' Width

Radiator Flow: DOWN FLOW

Inlet/Outlet Diameter: 1.75'' & 2''

Upper Hose Fitting: PASS

Lower Hose Fitting: DRIVER

Trans Cooler Details: 1/8-27NPT

Mounting Type: BRACKET

Mounting Specs: Ver - 16 1/2 Horizontal - 27 3/8

OEM Style Brass Petcock Drain

CNC Machined Filler Neck and Cap

Package Include

1 X 3-Row Aluminum Radiator (Includes Radiator Cap)

1 X Aluminum Shroud

2 X 12" 90W Fans (Includes mounting kits)

1 X Thermostat Relay Kits

Package Include

1 X 3-Row Aluminum Radiator (Includes Radiator Cap)

1 X Aluminum Shroud

2 X 12" 90W Fans (Includes mounting kits)

1 X Thermostat Relay Kits

Radiator Features

1. This Radiator is made of AA5052 aircraft aluminum, which has higher strength and greater corrosion resistance (including to salt water).

2. Higher Density Core: cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators sold.

3. 14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators.

4. Approximately 30% to 45% better cooling than the OEM radiator had.

5. The Radiator is 100% welded by TIG. Stronger and higher Capacity for Coolant than OEM units, providing maximum cooling efficiency to prevent premature engine failure.

Fan Specification

Diameter: 12'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 90W

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM(Cubic Feet per Minute): 2150cfm

Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%

S-Type Blade pull push design, to make air flow more efficient and bring more cooling effect.

A powerful 90-watt motor will keep your engine cool.

AA5052 Aluminum Shroud & Fan

The custom-made AA5052 aluminum fan shrouds are manufactured to fit this radiator. These fan shrouds are fabricated for our electric cooling fans but allow to use with most low-profile electric fans.

The fan and the fan shroud effectively drive the heat over and out of the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine.

1. Shuttered design AA5052 fan shroud to guarantee airflow passes high efficiently. Make your engine bay perfect.

2. S-blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

Thermostat Kit

The thermostat kit is a universal fit, which makes it the perfect choice for any automotive vehicle and electric fan. This thermostat activates by grounding electric fans at preset temperature.

It features a 185-degree Fahrenheit turn-on temperature and a 165-degree Fahrenheit turn-off temperature. The 3/8" NPT thread-in brass probe adapter is included.

Relay Kit Iinstructions:

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
