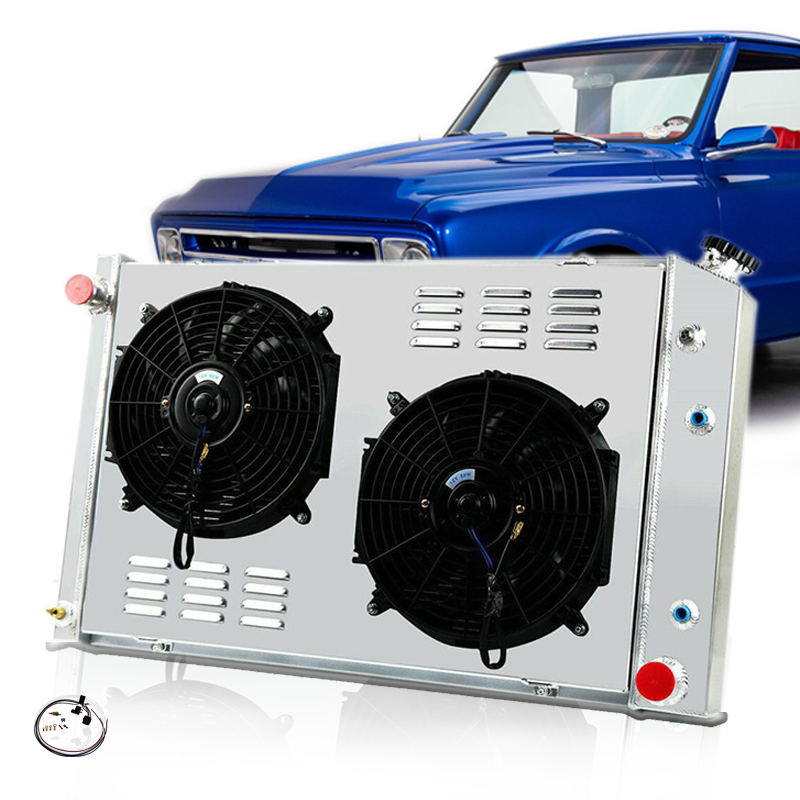

Alloyworks 3 Rows All-aluminum Radiator with Fan Shroud for 1968-1990 Chevy C10 K20 El Camino GMC C2500 28''W V8 18 5/8" height x 33" width12" Fans

Alloyworks 3 Rows All-aluminum Radiator with Fan Shroud for 1968-1990 Chevy C10 K20 El Camino GMC C2500 28''W V8 18 5/8" height x 33" width12" Fans

RAD-CHEV-AL-19
$259.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.

Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

3-Row of tubes Core Racing Design

High-Performance Racing Spec

Core Material: AA5052 Aluminum

Tank Material: AA5052 Aircraft Grade Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Includes CNC machined filler neck and cap

Core Dimensions: 17" height x 28 1/4" width x 1.73''thick

Overall Dimensions: 18 5/8" height x 33" width x 5.5''Thick

Upper Inlet: 1 1/2" located on driver's side

Lower Outlet: 1 1/2" located on the passenger side

Trans Cooler: ¢32*215*G1/4(Z)

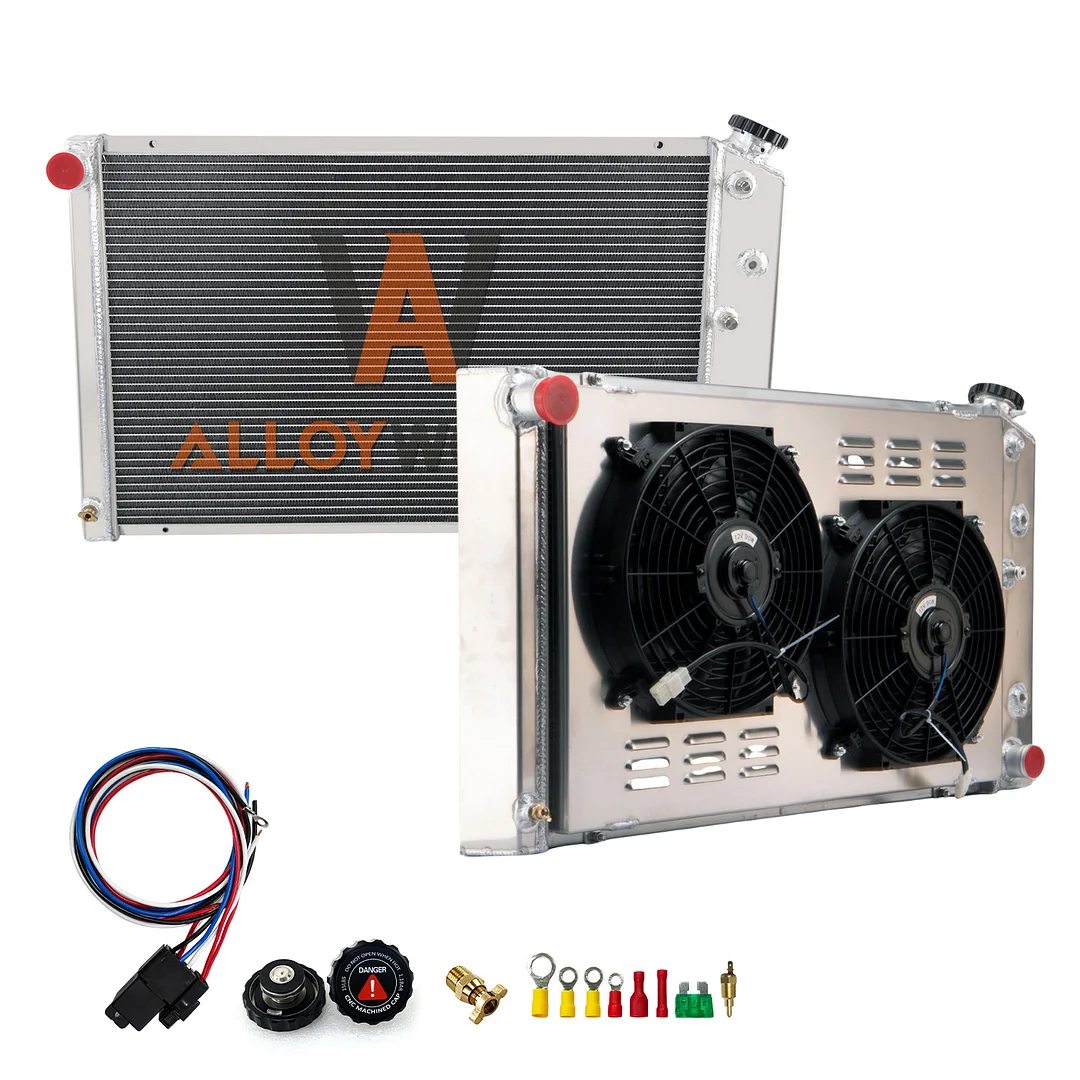

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X 1.3Bar CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kits

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X 1.3Bar CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kits

Fan Specification

Diameter : 12'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 90W

Fan Thickness: 2.5

Number of Blades: 10 S-Type blade

Maximum Fan CFM(Cubic Feet per Minute): 1730cfm

Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%

This chevrolet radiator is made of AA5052 aircraft aluminum. 5052 Aluminum's major alloying element is magnesium, providing higher strength and greater corrosion resistance, including resistance to saltwater.

Higher density core: Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.

The core of the radiator is welded in a vacuum brazing furnace, with no epoxy. The radiator is 100% TIG welded, ensuring stronger and higher coolant capacity than OEM units. It is made of high-quality full A5052 aluminum construction. An aluminum radiator is designed to provide maximum cooling efficiency, preventing premature engine failure.

Radiator Features:

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency for car radiators, particularly for 1970 C10 radiator upgrade. Its lightweight, high-heat transferring aluminum features a tube and fin design that dramatically increases surface area, enabling heat to dissipate more efficiently. This C10 radiator offers at least 30%-45% more efficiency than stock radiators. Most importantly, it has a much higher coolant capacity compared to stock units, ensuring that your cooling system remains more efficient and resistant to temperature surges, especially in demanding applications like racing. It's an ideal choice for enhancing your 1970 C10 radiator setup.

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at a preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

All-aluminum Radiator Installation guide for 1972 Monte Carlo | @_BYC Review

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.

In Alloyworks, we take pride in providing a seamless shopping experience with the comprehensive range of auto parts products. Your satisfaction is our priority, and we're here to make your shopping experience enjoyable and worry-free.
