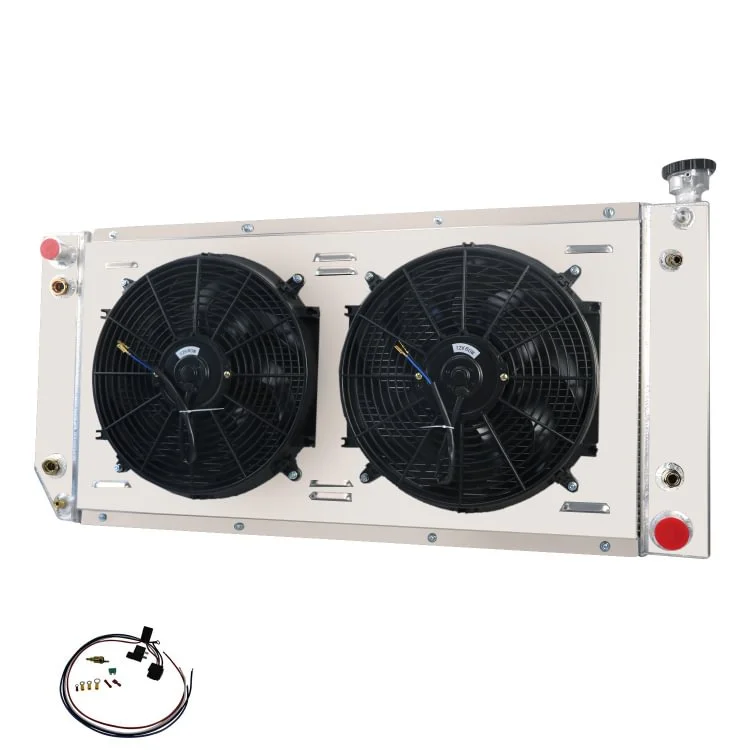

3 Row Aluminum Radiator+Shroud fan for 1988-2000 Chevy C/K 1500 2500 3500
3 Row Aluminum Radiator+Shroud fan for 1988-2000 Chevy C/K 1500 2500 3500
Click here to view all compatible vehicles
This product is easy to buy wrong, please pay attention to check the size carefully to make sure it will meet your needs.
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
CORE SIZE: 34" x 17 1/4"
Overall Size: 40 5/8" x 20 3/8"
INLET HOSE CONNECTION: 1 1/4"
OUTLET HOSE CONNECTION: 1 4/7"
TRANSMISSION COOLER: 1/2-20UNF
ENGINE OIL COOLER: M20*1.5
ONLY FIT 34 INCH WIDE CORE,17 INCH HIGH CORE
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
What About AA5052?
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM style brass petcock drain much better than other plastic one
7. Carefully crafted to exceptional OE standards for precise fit.
