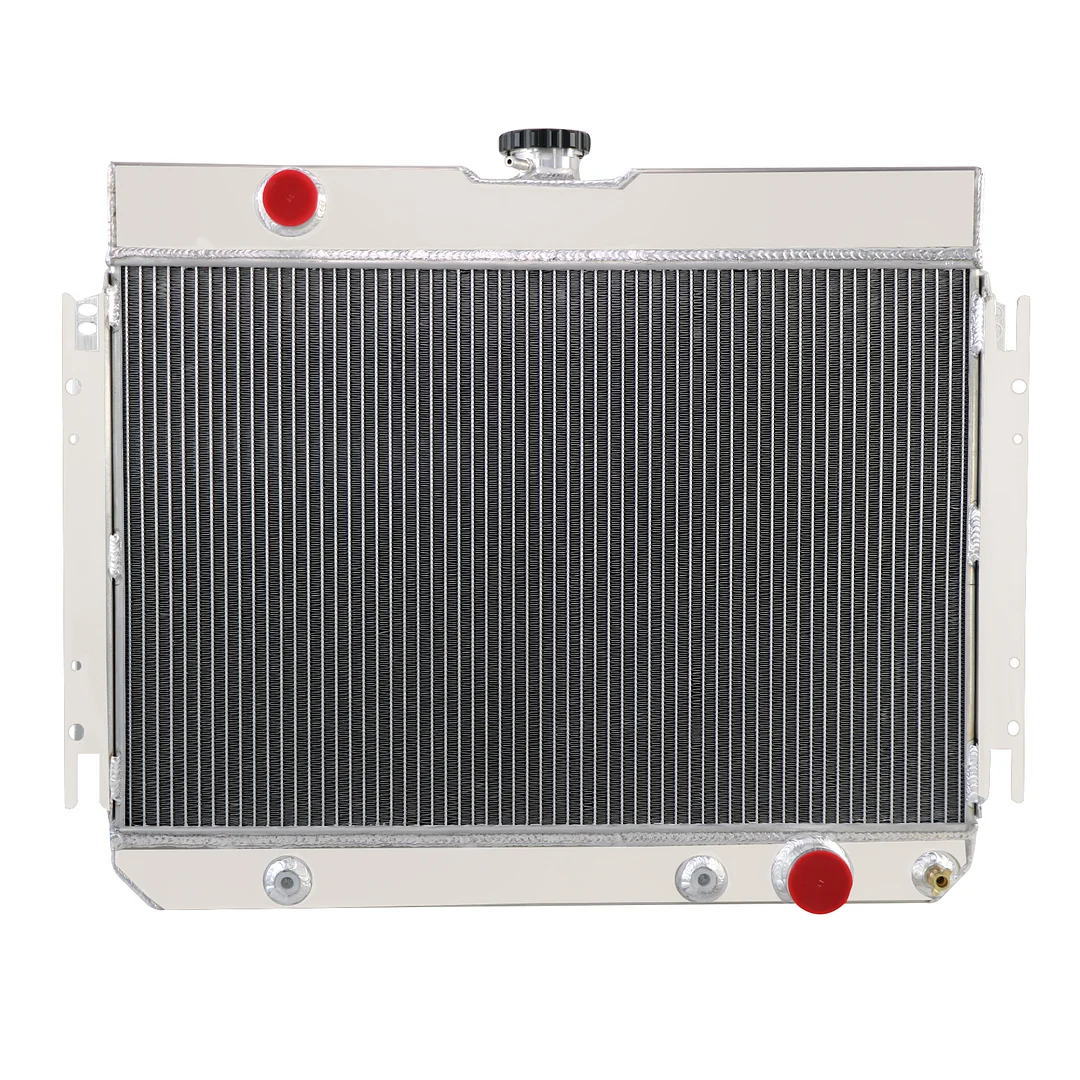

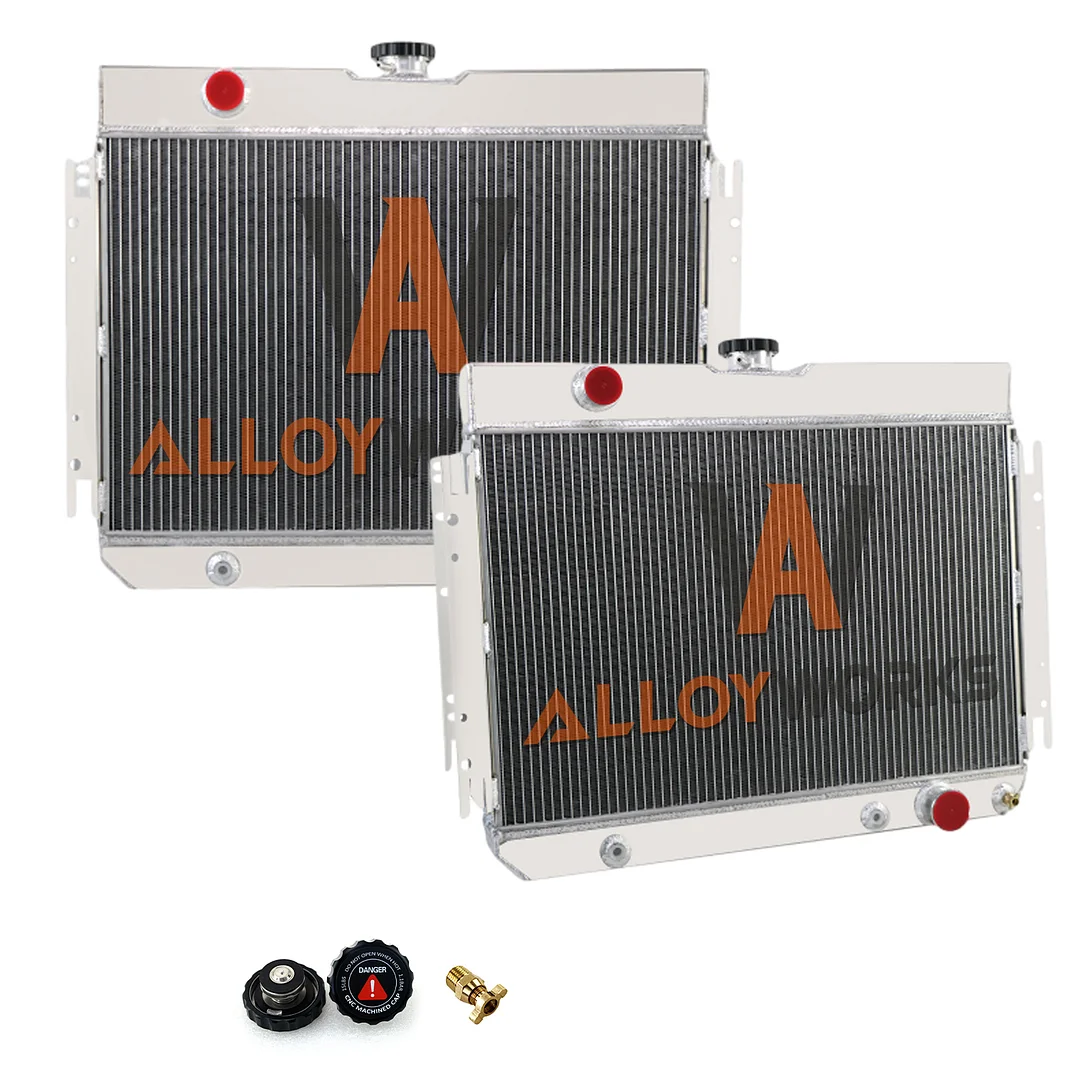

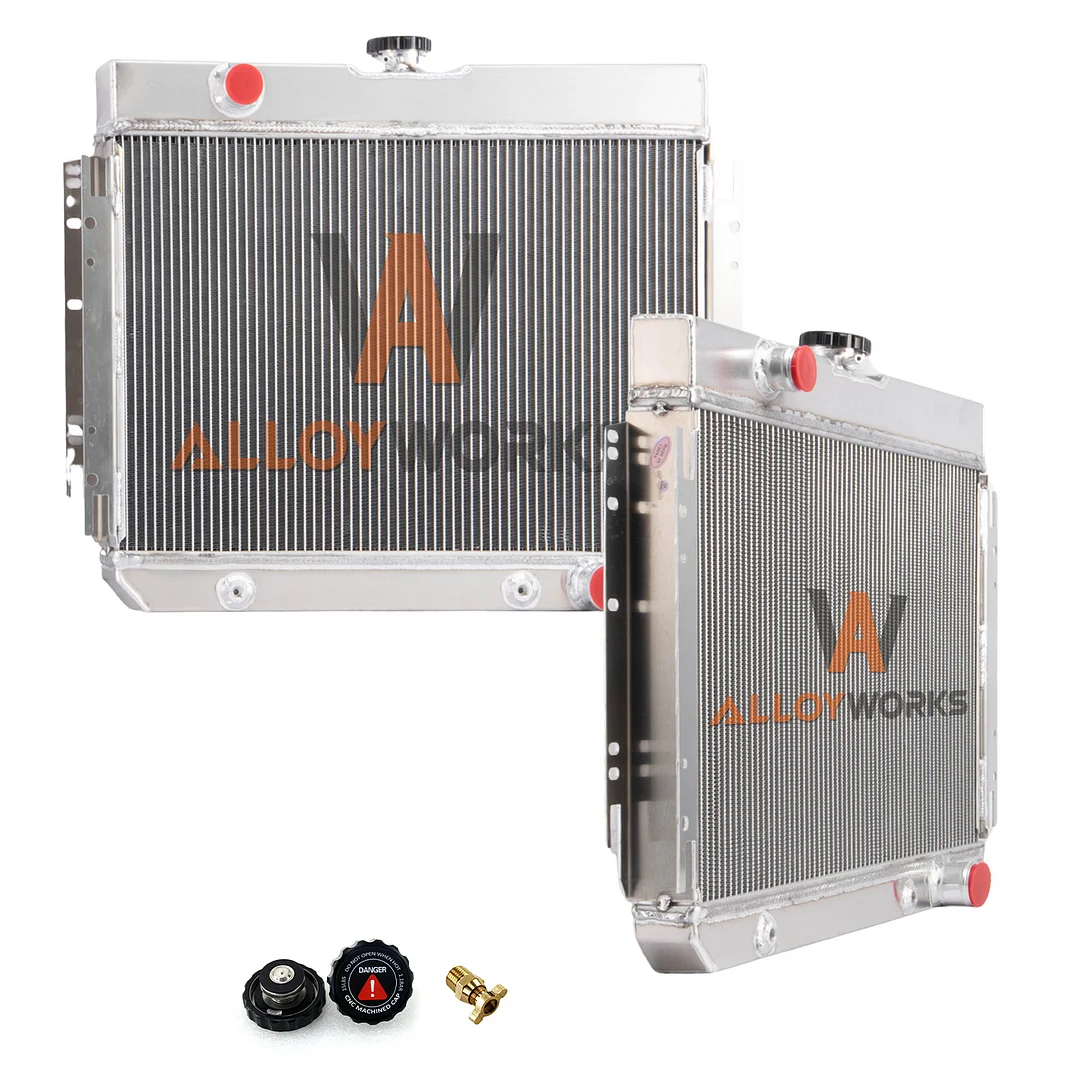

3 Row Aluminum Radiator For 1963-68 65 66 Chevrolet Impala Chevelle Camino I6/V8
3 Row Aluminum Radiator For 1963-68 65 66 Chevrolet Impala Chevelle Camino I6/V8
1963-1965 Chevrolet Bel Air 3.8L 230Cu. In. l6 and 6.7L 409Cu. In. V8
1965-1968 Chevrolet Bel Air 4.1L 250Cu. In. l6
1963-1967 Chevrolet Bel Air 4.6L 283Cu. In. V8
1963-1968 Chevrolet Bel Air 5.3L/5.4L 327Cu. In. V8
1965 1966 1968 Chevrolet Bel Air 6.5L 396Cu. In. V8
1963 1966 1968 Chevrolet Bel Air 7.0L 427Cu. In. V8
1968 Chevrolet Bel Air/Biscayne 5.0L 307Cu. In. V8
1968 Chevrolet Biscayne 5.4L 327Cu. In. V8
1963 1965 Chevrolet Biscayne 3.8L 230Cu. In. l6 and 6.7L 409Cu. In. V8
1965-1968 Chevrolet Biscayne 4.1L 250Cu. In. l6
1965-1968 Chevrolet Biscayne 6.5L 396Cu. In. V8
1963 1965-1967 Chevrolet Biscayne 4.6L 283Cu. In. V8
1963 1965-1968 Chevrolet Biscayne 5.3L 327Cu. In. V8
1963 1966-1968 Chevrolet Biscayne 7.0L 427Cu. In. V8
1967 1968 Chevrolet Caprice 4.1L(250Ci) l6 / 5.3L(327Ci),6.5L(396Ci),7.0L(427Ci) V8
1967 Chevrolet Caprice 4.6L 283Cu. In. V8
1968 Chevrolet Caprice 5.0L 307Cu. In. V8 and 5.4L 327Cu. In. V8
1964 1965 Chevrolet Chevelle 3.2L(194Ci), 3.8L(230CI) l6
1964 1965 Chevrolet Chevelle 4.6L(283Ci), 5.3L(327Ci) V8
1965 Chevrolet Chevelle 6.5L 396Cu. In. V8
1964 1965 Chevrolet El Camino 3.2L 194Cu. In. l6 and 5.3L 327Cu. In. V8
1959 1960 Chevrolet El Camino 5.7L 348Cu. In. V8
1959 1960 1964 1965 Chevrolet El Camino 3.8L 235Ci l6 and 4.6L 283Ci V8
1963-1965 Chevrolet Impala 3.8L 230Cu. In. l6
1965-1968 Chevrolet Impala 4.1L 250Cu. In. l6
1963-1967 Chevrolet Impala 4.6L 283Cu. In. V8
1963-1968 Chevrolet Impala 5.3L 327Cu. In. V8
1965-1968 Chevrolet Impala 6.5L 396Cu. In. V8
1964-1965 Chevrolet Impala 6.7L 409Cu. In. V8
1966-1968 Chevrolet Impala 7.0L 427Cu. In. V8
1968 Chevrolet Impala 5.0L 307Cu. In. V8 and 5.4L 327Cu. In. V8
1959-1961 Chevrolet Kingswood 3.8L(235Ci) l6 / 4.6L(283Ci), 5.7L(348Ci) V8
1961 Chevrolet Kingswood 6.7L 409Cu. In. V8
Interchange Part Number: CC289 ,AE289 ,EC289 ,MC289,DPI289 ,CUC289
Other Part Number: DPI289, CU289, 0289AA,RAD289，SDD-RA-MID64, 010690SNN
Manufacturer Part Number:040876432895 3002308 3002312 3002313 3005802 3007610
This Radiator Size:
Radiator Material: Full Aluminum
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
OEM Style Brass Petcock Drain. Radiator Flow: Down Flow
Dimensions: 16" H x 25-1/4" W
Overall Dimensions: 22-1/4" H x 27-3/4" W
Upper Inlet 1-1/2" located on the Driver side
Lower Outlet 1-3/4" located on the Passenger side
Trans Cooler Details: 1/2" 20 STRAIGHT THREAD G1/4
Mounting Type: BRACKET
Mounting Specs: Vert - 10 1/2 / Horizontal - 26 3/4
To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.
Full set in box and 100% brand new.
Full Aluminum High Performance, 30% more Extra Flow.
Super capacity than your stock cooling, great performance upgrade
We garranty that all our products are made of the best materials and advanced manufacture technique.
All our products are 100% fully tested to ensure top quality.
No Fitting Instructions Supplied!
Professional Installation is Highly Recommended!
Aluminum plate is pressed, high quality and durable.
