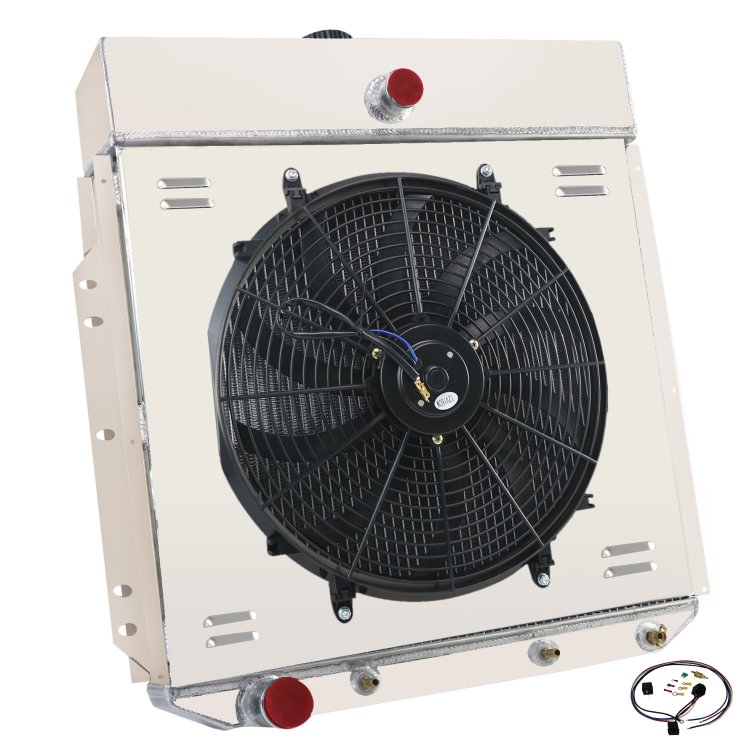

Alloyworks 4 Row Radiator Shroud Fan For FORD TRUCK F-100 F-150 F250 F350 PICKUP 1953-1956 -120W

Alloyworks 4 Row Radiator Shroud Fan For FORD TRUCK F-100 F-150 F250 F350 PICKUP 1953-1956 -120W

MC5356DZFSXJ120W
$369.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description
Fits:
1953 Ford F-100/F-250/F-350 3.5L 3524CC 215Cu. In. l6
1955 Ford F-100/F-250/F-350 4.2L 4196CC 256Cu. In. V8
1954-1956 Ford F-100/F-250/F-350 3.6L 3655CC 223Cu. In. l6
1953-1955 Ford F-100/F-250/F-350 3.9L 3917CC 239Cu. In. V8
1955-1956 Ford F-100/F-250/F-350 4.4L 4458CC 272Cu. In.

Specifications:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core and Tank Material:Full Aluminium
Includes Radiator Pressure Billet Cap
Overall Diameter: 26 1/4" high x 26 3/4" wide
Core Diameter: 20'' High x 23"Wide
Upper inlet: 1 1/2"
Lower outlet: 1 3/4"
Upper Hose Fitting: Center
Lower Hose Fitting: Driver
Trans Cooler Details: YES
OEM Style Brass Petcock
Please Check the Size Before You Buy!

Description
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
