Alloyworks Ford 4 Row Radiator 1967-1970 Mustang Fairlane Falcon Ranchero Mercury Cougar XR-7 I6 V8 3.3 4.1 4.7 5.0 5.8 6.4 7.0L Shroud Fan Relay 90W

Alloyworks Ford 4 Row Radiator 1967-1970 Mustang Fairlane Falcon Ranchero Mercury Cougar XR-7 I6 V8 3.3 4.1 4.7 5.0 5.8 6.4 7.0L Shroud Fan Relay 90W

MC379DZFSXJ90W-BN
$339.00
Quantity
Please check if this fits your vehicle before purchasing
We're currently out of stock. Get notifed by email when this product available
please input correct email
Notify Me
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1968 Ford Mustang 7.0L 427Cu. In. V8
1967-1970 Ford Mustang 3.3L 200Cu. In. l6 / 7.0L 428Cu. In. V8
1969-1970 Ford Mustang 4.1L 250Cu. In. l6 / 5.8L 351Cu. In. V8 / 7.0L 429Cu. In. V8
1968-1967 Ford Mustang 4.7L 289Cu. In. V8
1968-1970 Ford Mustang 5.0L 302Cu. In. V8
1967-1969 Ford Mustang 6.4L 390Cu. In. V8
1967-1969 Ford Fairlane 3.3L 200Cu. In. l6 / 6.4L 390Cu. In. V8 / 7.0L 427Cu. In. V8
1968-1969 Ford Fairlane 5.0L 302Cu. In. V8 / 7.0L 428Cu. In. V8
1969 Ford Fairlane 4.1L 250Cu. In. l6 / 4.7L 289Cu. In. V8 / 5.8L 351Cu. In. V8
1967-1968 Ford Falcon 2.8L 170Cu. In. l6 / 3.3L 200Cu. In. l6 / 4.7L 289Cu. In. V8
1968 Ford Falcon 5.0L 302Cu. In. V8
1967-1968 Ford Ranchero 3.3L 200Cu. In. l6
1968-1969 Ford Ranchero 5.0L 302Cu. In. V8 / 7.0L 428Cu. In. V8
1967-1969 Ford Ranchero 6.4L 390Cu. In. V8
1969 Ford Ranchero 4.1L 250Cu. In. l6
1967 Ford Ranchero 4.7L 289Cu. In. V8
1969 Ford Ranchero 5.8L 351Cu. In. V8
1967 Ford Ranchero 5.8L 352Cu. In. V8
1968 Mercury Cougar 4.7L 289Cu. In. V8 / 7.0L 427Cu. In. V8
1968-1970 Mercury Cougar 5.0L 302Cu. In. V8 / 6.4L 390Cu. In. V8 / 7.0L 428Cu. In. V8
1969-1970 Mercury Cougar 5.8L 351Cu. In. V8 / 7.0L 429Cu. In. V8

(24" WIDE CORE-TOP HOSE PASSENGER-BOTTOM HOSE DRIVER)

Please Notice
To confirm that this part fits your vehicle, check your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table.

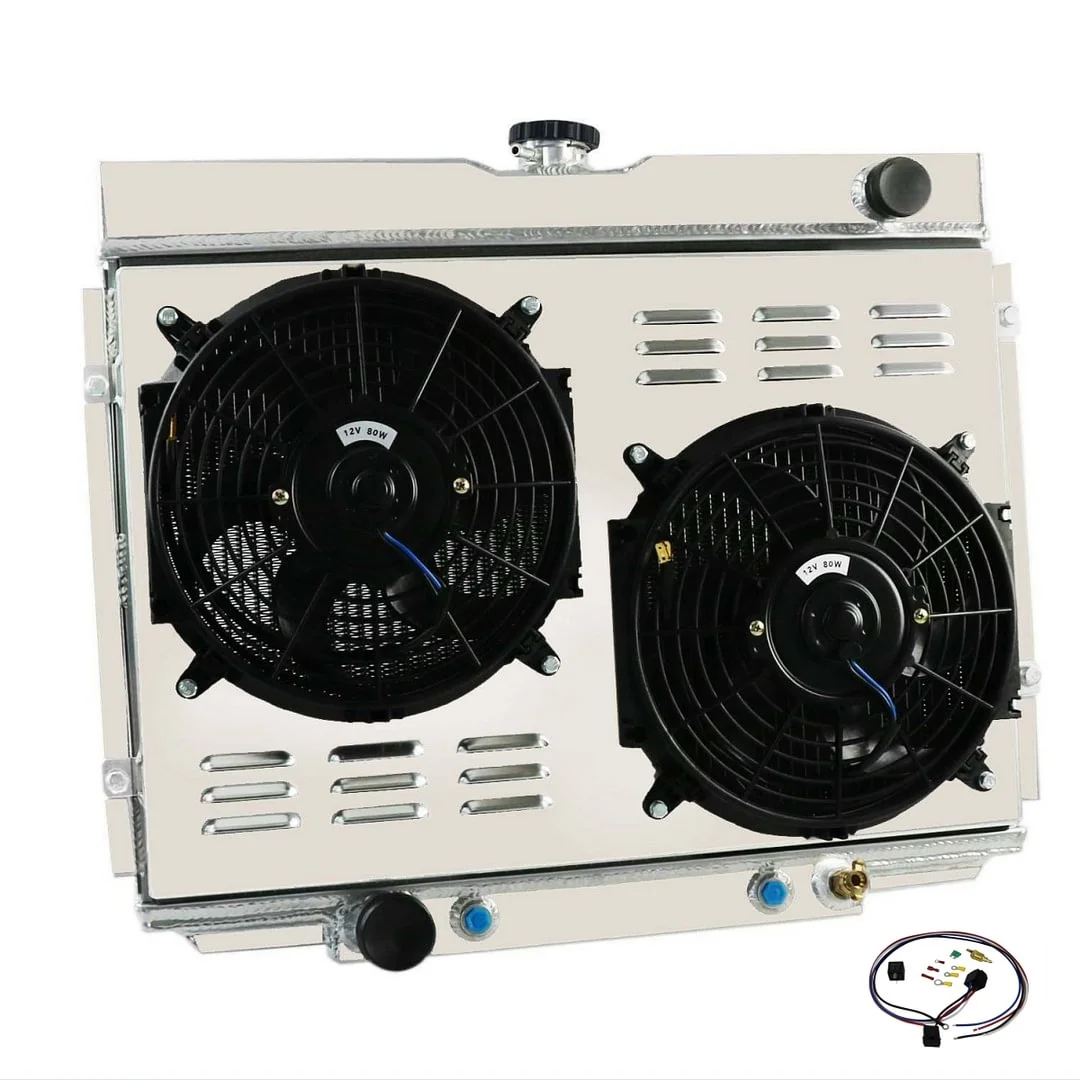

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 10'' Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
Row Count: 4 Rows
Core Size : 24" W x 16.3" H x 2.44'' T
Overall Size: 25.4" W x 21.5" H x 6.5''Thick
Upper inlet: 1-1/2" located on passenger side.
Lower outlet: 1-3/4" located on driver's side.
Transmission Cooler: ￠22*205*1/8-27NPT(Z)

FANS:
Volt:12v
Maximum Fan CFM: 1730 cfm
Motor:90W
Fan Diameter (in): 10.050”
Thickness (in): 2.500”
Number of Blades: 6 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Features：
1. Crafted from Aircraft-Grade AA5052 aluminum for extended lifespan, featuring a raw aluminum finish.
2. Utilizes brazed core technology to ensure optimal performance and reliability.
3. Constructed with 2mm thick AA5052 aluminum tanks and fittings for durability and strength.
4. Features a rugged and durable billet aluminum CNC machined fill neck.
5. Designed with an ergonomic CNC machined cap featuring engraved craftsmanship and an anodized treatment.
6. Equipped with an OEM-style brass petcock drain, superior to plastic alternatives.
7. Meticulously crafted to meet exceptional OE standards, ensuring precise fitment.

Description:
The Alloyworks All Aluminum, Radiator is made of AA5052 aircraft aluminum. It's different from other sellers' T-3303 Series. AA5052 series Aluminum is much better than the T-3303 series.

More than 90% of aftermarket manufacturers use the T-3303 series Aluminum because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness of scratching and corroding, and poor heat dissipation effect. If the T-3303 aluminum radiator is operated at high pressure and high temperature for a long time, the leaking problem will occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability, and cold workability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at a preset temperature. 180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.
This setup will run Fans & pull air in through the radiator.

AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed.

Aluminum plate is pressed, high quality and durable.



THE PROBLEM WE WILL HELP YOU SOLVED OUT
