2005 2006 2007 Ford F-250/F-350/F-450/F-550 Super Duty 6.0L 363Cu. In. V8 DIESEL OHV Turbocharged
2005 2006 2007 Ford F-250/F-350/F-450/F-550 Super Duty 6.8L 415Cu. In. V10 GAS SOHC Naturally Aspirated

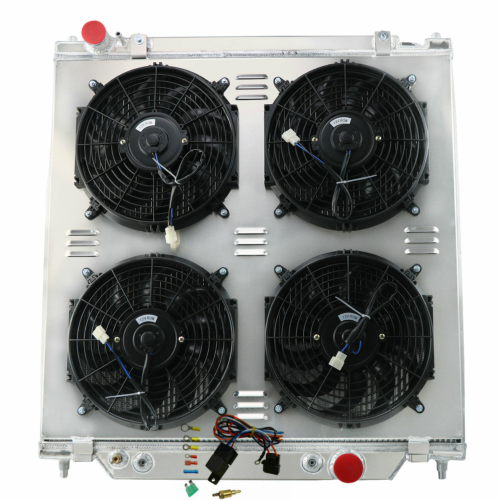

This Listing Is Including:
1 X 4-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
4 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
Condition:New
Brand:AlloyWorks
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Core Size: 29 2/3" x 28 3/7" x 2 12/"
Overall Size:33 2/7" x 30 1/2"
Inlet Size: 1 7/9"
Outlet Size: 2"
Engine Oil Cooler: No
Transmission Oil Cooler: Yes
FANS:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Motor:90W
Thickness (in): 2.500”
Number of Blades: 10 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed
Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Upgrade Performance
1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Carefully crafted to exceptional OE standards for precise fit.
