Description
Fits: 1998-2005 Ford Explorer 4.0L 245Cu. In. V6 2004, 2007 Ford Ranger 2.3L 140Cu. In. l4 1998-2011 Ford Ranger 4.0L 245Cu. In. V6 2001 Mercury Mountaineer 4.0L 245Cu. In. V6

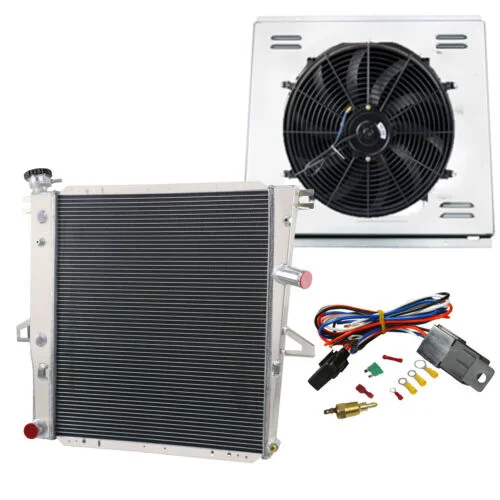

Package Include: 1 X 3-Row AA5052 Aluminum Radiator 1 X CNC Machined Radiator Cap 1 X AA5052 Aluminum Shroud 1 X 16" 120W Fan (Includes mounting kits) 1 X Thermostat Relay Kit
Radiator Size: High Performance Racing Spec. 3-Row of tubes Core Racing Design Core Size: 23-1/2'' H x 21-7/8'' W Overall Size: 26'' H x 30'' W Hose Locations:In:Off-Set Passenger/Out:Driver Hose Fittings:In:1 1/2" -OUT:1 1/2" Trans Cooler:φ26*305*5/8-18UNF(Z) Mounting Type:Bracket Mount Radiator Flow: Cross Flow OEM Style Brass Petcock Drain. CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar Please Check the Size Before You Buy!
FAN Specification: 16" Fan Voltage: DC 12 Volts Maximum Fan CFM: 2150 cfm Wattage: 120 Wattage Thickness (in): 2.500" Number of Blades: 10 S-Type blades Maximum Fan RPM: 2,250 rpm Amp Draw: 10 amps
Thermostat Kit Installation: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 185'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator.
