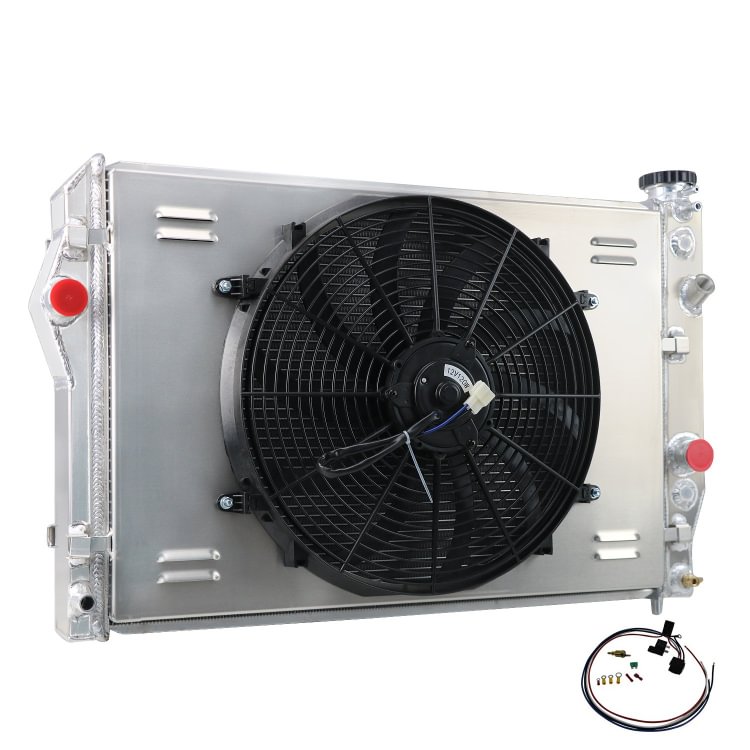

STRENGTHEN COOLING For 93-02 Chevy Camaro Pontiac Firebird 5.7L V8 4 Row Radiator Shroud Thermostat -120W

STRENGTHEN COOLING For 93-02 Chevy Camaro Pontiac Firebird 5.7L V8 4 Row Radiator Shroud Thermostat -120W

MC2365DZFSXJ120W-BN
$345.00
Quantity
Please check if this fits your vehicle before purchasing
We're currently out of stock. Get notifed by email when this product available
please input correct email
Notify Me
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Application:
For Pontiac Firebird/Trans AM 5.7L V8 Engine 1993-2002
For Chevrolet Camaro Z28 5.7L V8 Engine 1993-2002

Please Notice:
To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.

The motor power is 120W.


This Radiator Size:
Material:Full Aluminium
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Radiator Flow: Cross Flow
Core Dimension (H x W): 17 3/4" x 25" x 2 4/9''Thick
Overall Dimension (H x W): 20 1/2" x 29 5/8" x 7.8''Thick
Hose Locations: IN: Passenger / OUT: Driver
Hose Fittings: IN: 1 1/4" - OUT: 1 3/8"
Trans Cooler: YES
Mounting Type: Pin Mount
Please Check the Size Before You Buy!

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.


Description:
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Brand new, never used & good quality，All Aluminum For Better Performance Better Heat Exchange，Increase 30%-40% cooling than OEM radiator,handles high revving motor End Tanks are made from high quality sheet metal, not plastic like OEM Professional installation in highly applications.
Shroud+Fans:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.

Aluminum plate is pressed, high quality and durable.



THE PROBLEM WE WILL HELP YOU SOLVED OUT
