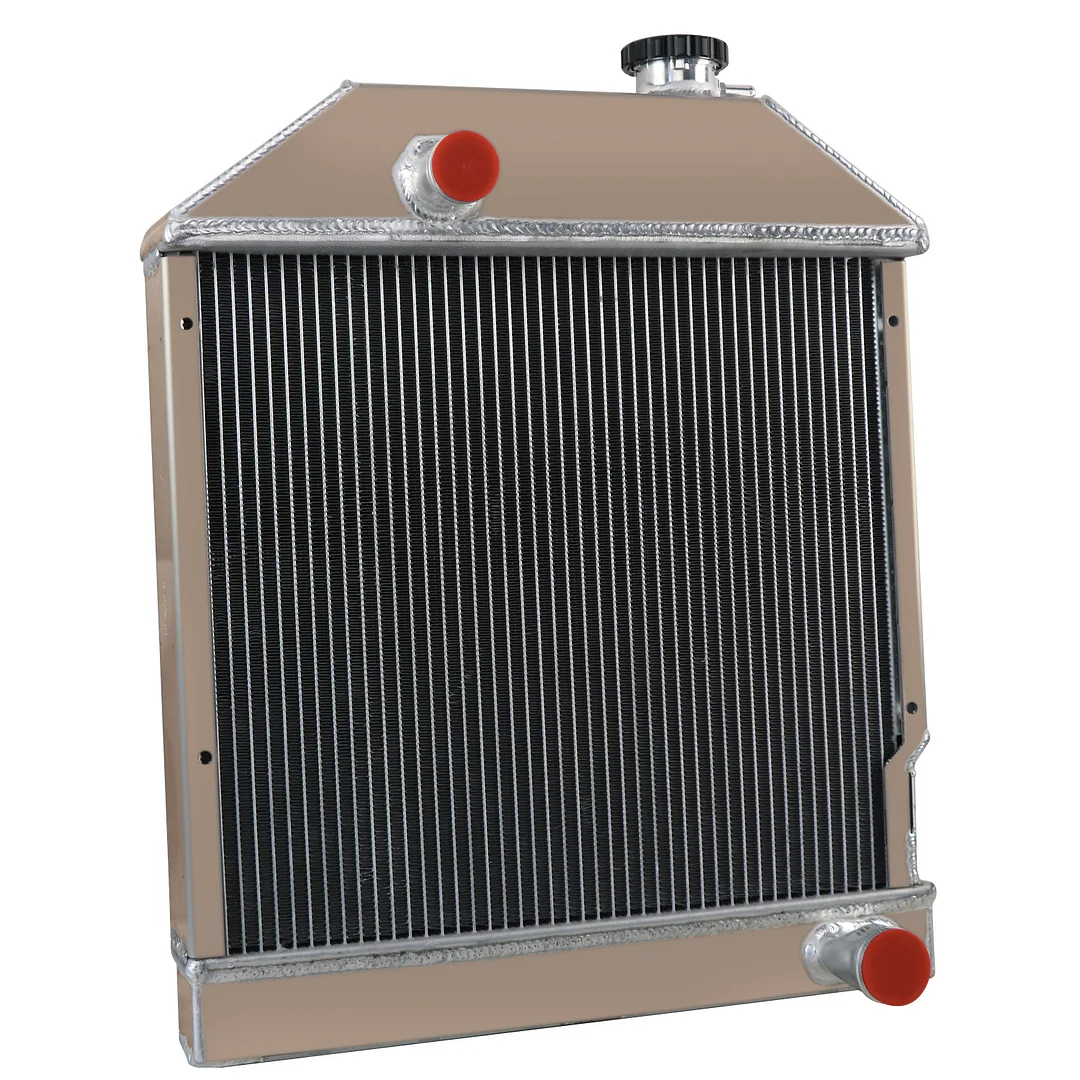

E9NN8005 4 Row Radiator Ford Holland Tractor 250C,260C,3230,3430,3930,4130,4630


0 sold
$248.75 20% Off
Only 14 left in stock

One New Aftermarket Replacement Radiator Fits Ford Tractor models: 250C, 260C, 3230, 3430, Late 3930, Late 4130, 4630 without oil cooler.
Part Numbers: F0NN8005EA15M, E9NN8005AB15M, E9NN8005AA25M, E0NN8005MD15M, E0NN8005MB15M, E0NN8005MA15M, E0NN8005LA15M, 81875020

Radiator Configuration:
Core Material: All Aluminum
Tank Material: T-5057 Aircraft Grade Aluminum
Surface Finish: Raw Aluminum Unpainted
Includes CNC machined filler neck and cap
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Cross Flow
Overall Height: 21 1/2''
Overall Width: 19''
Core Height: 16''
Core Width: 18''
Depth: 2
Inlet: 1 1/2''
Outlet: 1 3/4''
Fill Neck Height: 3/4''

100% Brand New Item
The Radiator are 100% welded seams by TIG
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
T-5057 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Aluminum plate is pressed, high quality and durable.
