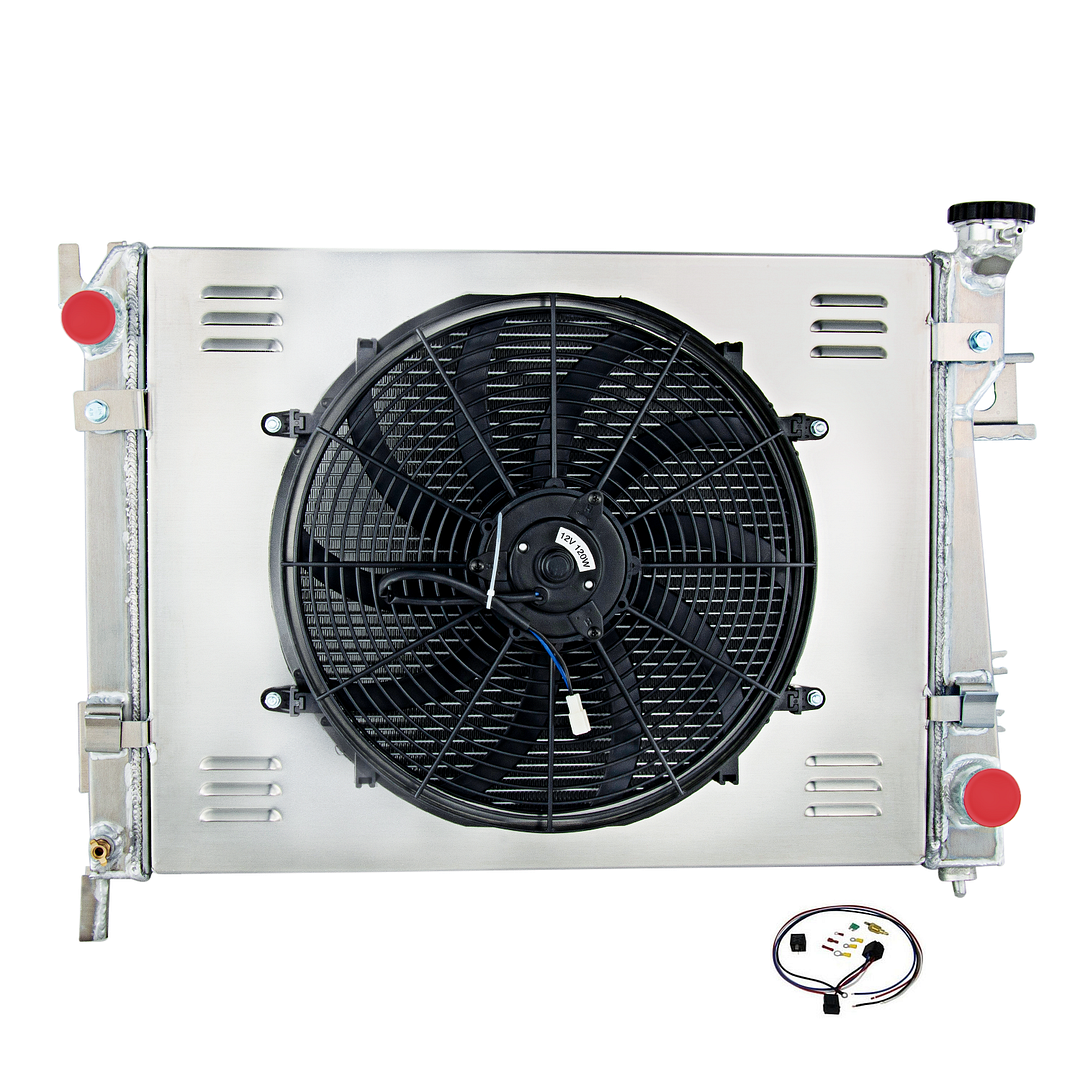

Alloyworks Dodge 2Row Radiator 2004-2009 Ram 1500 2500 3500 5.7L 345Cu V8 Shroud Fan Relay 120W

Alloyworks Dodge 2Row Radiator 2004-2009 Ram 1500 2500 3500 5.7L 345Cu V8 Shroud Fan Relay 120W

536-51423DZFSXJ120W-BN
$239.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits: 2004 2005 2006 2007 2008 2009 Dodge Ram1500 2500 3500 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated

Click here to view all compatible vehicles

Package Include:
1 X AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fan (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
Brand: AlloyWorks
Condition:New
High Performance Racing Spec.
2-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Core Size: 24" x 18 7/8"
Inlet :1 1/2" On Driver Side
Outlet : / 1 3/4" On Passenger Side
Transmission Oil Cooler: build-in

AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Our electric fan has a 120w power motor, which is more powerful and efficient than other inferior fans selling on market. Most fans has a motor power of 80w, which cannot provide enough cooling for the engine. Moreover, they are usually assembled by the straight blades, it is cheaper and poor-quality and easy to get broken.
1. 120W electric motor to provide strong power and high rotation speed
2. S Blade pull push design, to make air flow more efficient and bring more cooling Effect
3. Lightweight and thin volume design, not only to save more engine bay space and also looks very well.
4. Provide extra tempreture relay switch.

FAN Specification:
16" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
