Fits:
1963-1965 Chevrolet Bel Air 3.8L 230Cu. In. l6 and 6.7L 409Cu. In. V8
1965-1968 Chevrolet Bel Air 4.1L 250Cu. In. l6
1963-1967 Chevrolet Bel Air 4.6L 283Cu. In. V8
1963-1968 Chevrolet Bel Air 5.3L/5.4L 327Cu. In. V8
1965 1966 1968 Chevrolet Bel Air 6.5L 396Cu. In. V8
1963 1966 1968 Chevrolet Bel Air 7.0L 427Cu. In. V8
1968 Chevrolet Bel Air/Biscayne 5.0L 307Cu. In. V8
1968 Chevrolet Biscayne 5.4L 327Cu. In. V8
1963 1965 Chevrolet Biscayne 3.8L 230Cu. In. l6 and 6.7L 409Cu. In. V8
1965-1968 Chevrolet Biscayne 4.1L 250Cu. In. l6
1965-1968 Chevrolet Biscayne 6.5L 396Cu. In. V8
1963 1965-1967 Chevrolet Biscayne 4.6L 283Cu. In. V8
1963 1965-1968 Chevrolet Biscayne 5.3L 327Cu. In. V8
1963 1966-1968 Chevrolet Biscayne 7.0L 427Cu. In. V8
1967 1968 Chevrolet Caprice 4.1L(250Ci) l6 / 5.3L(327Ci),6.5L(396Ci),7.0L(427Ci) V8
1967 Chevrolet Caprice 4.6L 283Cu. In. V8
1968 Chevrolet Caprice 5.0L 307Cu. In. V8 and 5.4L 327Cu. In. V8
1964 1965 Chevrolet Chevelle 3.2L(194Ci), 3.8L(230CI) l6
1964 1965 Chevrolet Chevelle 4.6L(283Ci), 5.3L(327Ci) V8
1965 Chevrolet Chevelle 6.5L 396Cu. In. V8
1964 1965 Chevrolet El Camino 3.2L 194Cu. In. l6 and 5.3L 327Cu. In. V8
1959 1960 Chevrolet El Camino 5.7L 348Cu. In. V8
1959 1960 1964 1965 Chevrolet El Camino 3.8L 235Ci l6 and 4.6L 283Ci V8
1963-1965 Chevrolet Impala 3.8L 230Cu. In. l6
1965-1968 Chevrolet Impala 4.1L 250Cu. In. l6
1963-1967 Chevrolet Impala 4.6L 283Cu. In. V8
1963-1968 Chevrolet Impala 5.3L 327Cu. In. V8
1965-1968 Chevrolet Impala 6.5L 396Cu. In. V8
1964-1965 Chevrolet Impala 6.7L 409Cu. In. V8
1966-1968 Chevrolet Impala 7.0L 427Cu. In. V8
1968 Chevrolet Impala 5.0L 307Cu. In. V8 and 5.4L 327Cu. In. V8
1959-1961 Chevrolet Kingswood 3.8L(235Ci) l6 / 4.6L(283Ci), 5.7L(348Ci) V8
1961 Chevrolet Kingswood 6.7L 409Cu. In. V8
Radiator Size:
Core Size: 16'' H x 25-1/4'' W
Overall Size: 22-1/4'' H x 27-3/4'' W
Upper Inlet : 1-1/2''
Lower Outlet : 1-3/4''
Trans Cooler: ¢26×305×G1/4(Z)
Mounting Type is: Bracket
Fitment Type:Direct Replacement
High Performance Racing Spec.
3-Row of tubes Core Racing Design

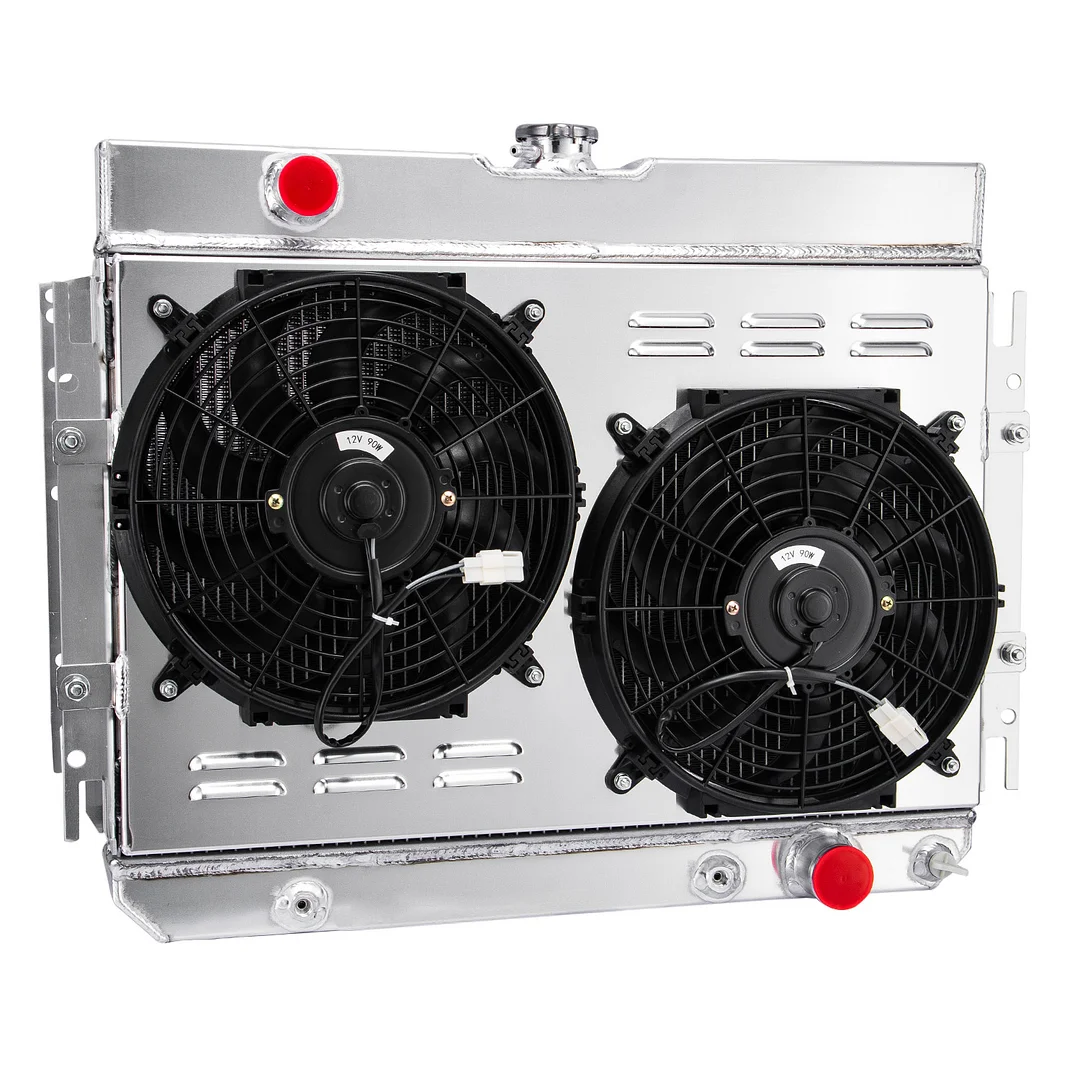

Package Include:
1 X 3-Row Aluminum Radiator
1 X Cap
1 X Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
FANS:
Volt :12v
Motor: 80W
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area enabling the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
