Aluminum 3 Row Radiator with Fan Shroud For 63-68 Chevy Impala Bel Air Biscayne l6 V8

Aluminum 3 Row Radiator with Fan Shroud For 63-68 Chevy Impala Bel Air Biscayne l6 V8

WH289DZFSXJ90W-BN
$259.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
We're currently out of stock. Get notifed by email when this product available
please input correct email
Notify Me
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing

This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

Radiator Size

Core Size: 16" H x 25-1/4" W x 1.73''T

Overall Size: 22-1/4" H x 27-3/4" W x 5.9''T

Upper Inlet: 1-1/2" located on the Driver's side

Lower Outlet: 1-3/4" located on the Passenger side

Trans Cooler: 1/2" 20 Straight Thread G-1/4

Mounting Type: Bracket

Row: 3 Row Core

Material: AA5052 Aluminu

Core and Tank: AA5052 Aluminum

Includes CNC machined filler neck and cap

OEM Style Brass Petcock Drain.

Radiator Flow: Down Flow

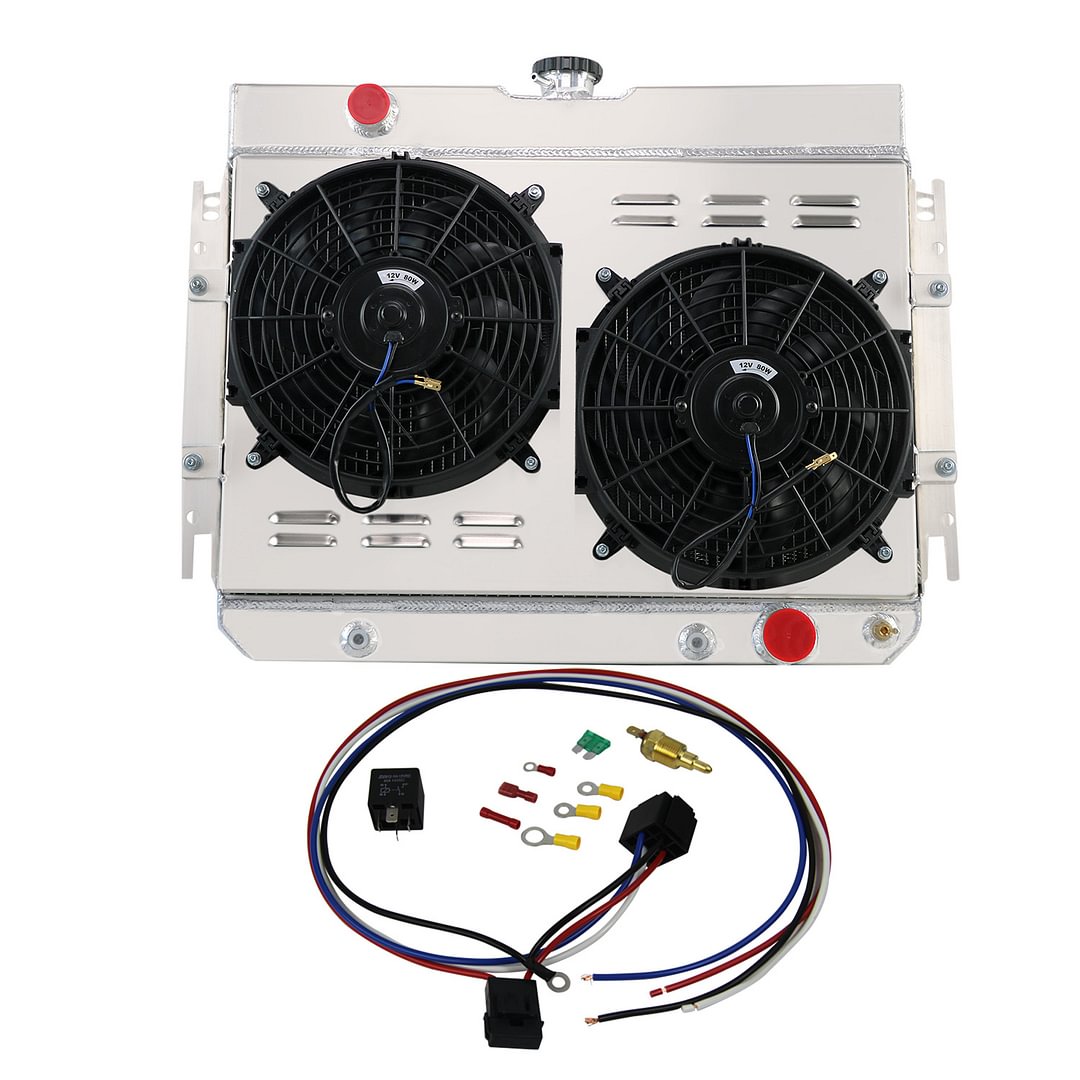

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" 90W Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" 90W Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Radiator Features

1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable

4. Billet Aluminum CNC machined fill neck is rugged and durable

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment

6. Carefully crafted to exceptional OE standards for a precise fit

Fan Specification

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at the preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.
