Radiator Size:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
OEM style brass petcock drain
Core Dimensions: 14-7/8" H x 26-2/7"W x 2-4/9''T
Overall Dimensions: 17-1/2" H x 32-1/2" W x 6-2/7''T
Upper Inlet: 1-3/8" located on the Driver side
Lower Outlet: 1-1/2" located on the Passenger side
Transmission Oil Cooler: Φ26*290*M20*1.5 (Z)
Engine Oil Cooler: Φ26*290*3/8-18NPT (T)
Mount Type: Pin

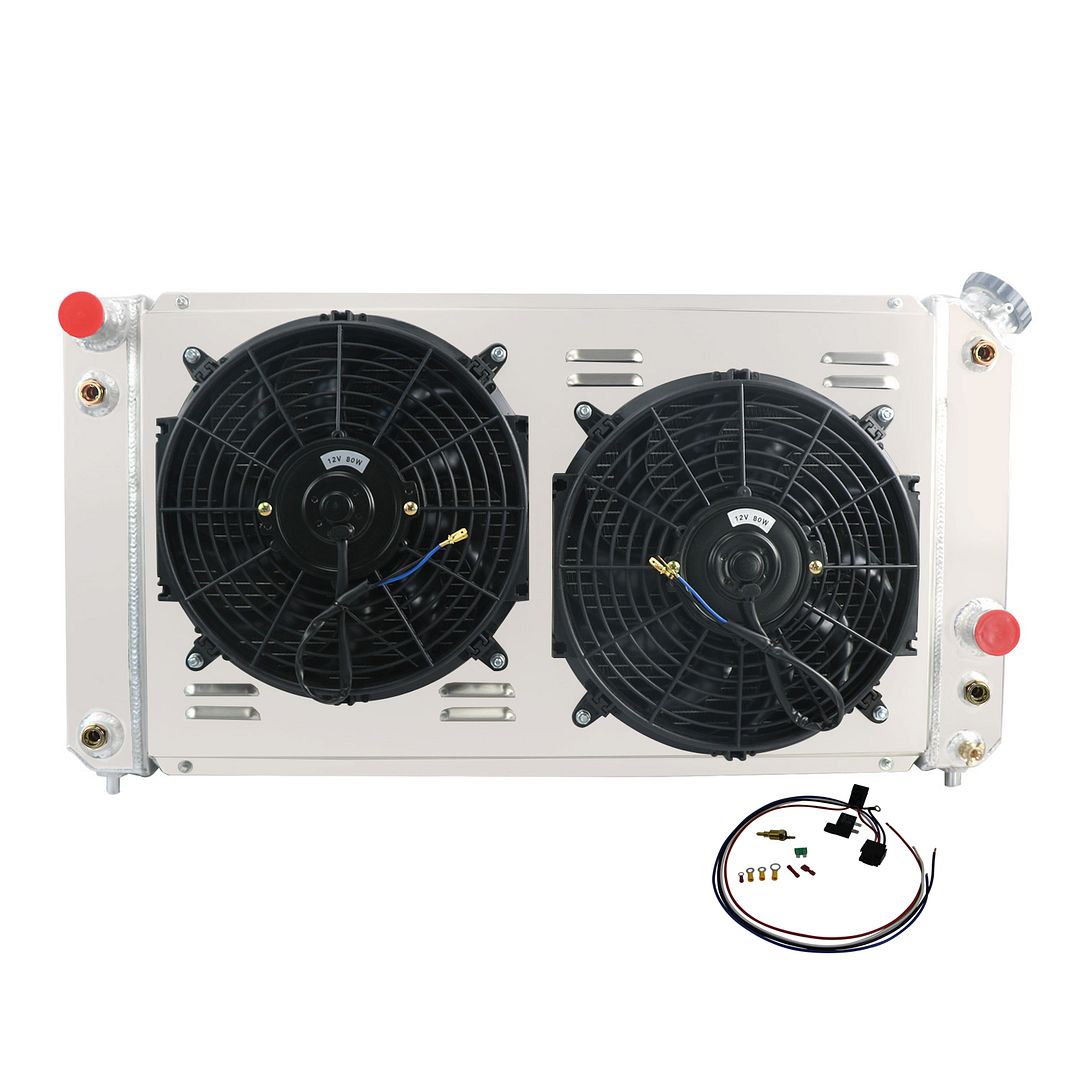

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
FANS:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Our Radiator is made of AA5052 aircraft aluminum. AA5052 series Aluminum is much better than the T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easy scratching and corroding, and poor heat dissipation effect. If the T-3303 aluminum radiator is operated at high pressure and high temperature for a long time, the leaking problem will occur very soon.
1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.
2. Brazed core technology to guarantee optimum performance and dependability.
3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
4. Billet Aluminum CNC machined fill neck is rugged and durable.
5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6. The OEM-style brass petcock drain is much better than other plastic ones.
7. Carefully crafted to exceptional OE standards for a precise fit.
