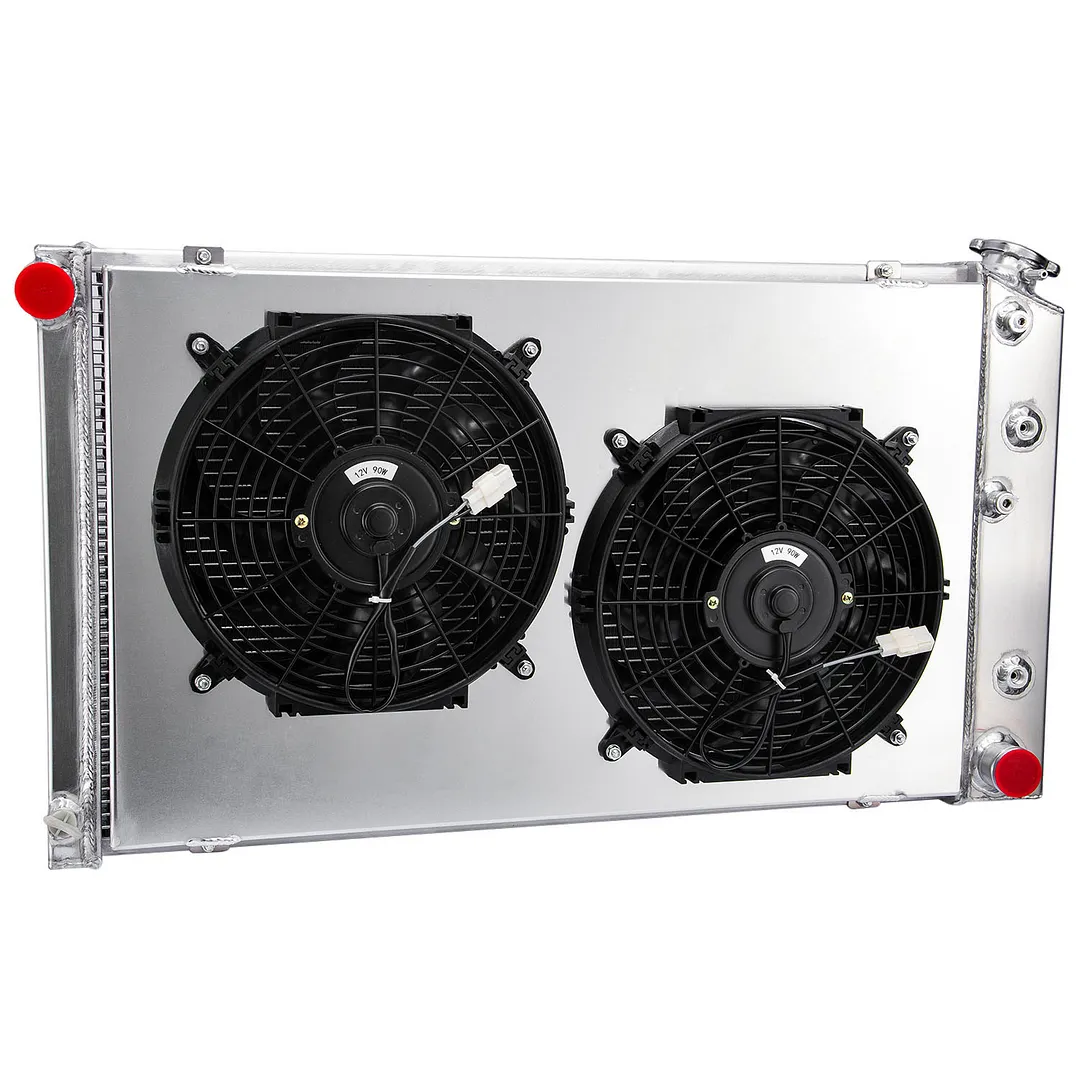

Alloyworks 3 Rows Aluminum Radiator with Fan Shroud For 1968-1990 Chevy C10 K20 El Camino GMC C2500 28''W V8 18-5/8"H x 33"W

Alloyworks 3 Rows Aluminum Radiator with Fan Shroud For 1968-1990 Chevy C10 K20 El Camino GMC C2500 28''W V8 18-5/8"H x 33"W

RAD-CHEV-DP-10
$239.00
Quantity
Please check if this fits your vehicle before purchasing
Visible only when the product is out of stock. Currently in preview mode.
Notify Me
(function(){ function $(selector){ return document.querySelector(selector); } const EMAIL_REG = /^(([^<>()[\]\\.,;:\s@"]+(\.[^<>()[\]\\.,;:\s@"]+)*)|(".+"))@((\[[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\])|(([a-zA-Z\-0-9]+\.)+[a-zA-Z]{2,}))$/; // 获取dom数据 const doms = { button: $('#app-arrival-reminder-button'), previewBox: $('#app-arrival-reminder-preview-box'), toast: $('#app-arrival-reminder-toast'), lightbox: $('#arrival-lightbox'), datalist: $('#app-arrival-reminder-email-list'), imgRender: $('#app-arrival-reminder-product-image-render'), productVariant: $('#app-arrival-reminder-product-variant'), emailInput: $('#app-arrival-reminder-form .reminder-email-input'), emailWarn: $('#app-arrival-reminder-form .reminder-email-warn-wrap'), emailWarnText: $('#app-arrival-reminder-form .reminder-email-warn-text'), submitButton: $('#app-arrival-reminder-submit-button') }; // 选中的sku数据 let selectedVariant = {"id":"9cfa3f59-6f06-4404-9077-7605b1a4d3ed","product_id":"314498f7-643b-4ccb-960c-16e8036534fd","title":"","weight_unit":"kg","inventory_quantity":168,"sku":"WH161FSX-DP","barcode":"","position":1,"option1":"","option2":"","option3":"","note":"","image":null,"wholesale_price":[{"price":239,"min_quantity":1}],"weight":"0","compare_at_price":"0","price":"239","retail_price":"0","available":true,"url":"\/products\/alloyworks-3-rows-aluminum-radiator-with-fan-shroud-for-1968-1990-chevy-c10-k20-el-camino-gmc-c2500-28w-v8-18-5-8h-x-33w?variant=9cfa3f59-6f06-4404-9077-7605b1a4d3ed","available_quantity":168,"options":[],"off_ratio":0,"flashsale_info":[],"sales":7}; // 上报 function reportData(params){ // 编辑/预览不上报 if(false){ return; } window.sa.track(params.event_name, { business_type: 'product_plugin', function_name: 'Back_in_Stock', plugin_name: "Back_in_Stock", template_name: "product", template_type: 1, module: "apps", module_type: "Back_in_Stock", event_info: JSON.stringify({ action_type: 'Back_in_Stock' }), ...params }); } // 按钮曝光上报 function buttonPVReport(){ reportData({ event_name: 'function_expose', event_type: 'expose', event_desc: '无货商品时触发' }); } // 弹窗曝光上报 function popupPVReport(){ reportData({ event_name: 'function_expose', event_type: 'popup_expose', event_desc: '弹窗曝光时触发' }); } // submit按钮点击上报 function submitClickReport(){ reportData({ event_name: 'function_click', event_type: 'popup_click', event_desc: '填入邮箱之后,点击notify 触发', event_info: JSON.stringify({ action_type: 'email_click' }), }); } // -----------------------初始化----------------- init(); // 初始化操作 function init(){ // 为确保window有后面添加的值例如window.sa 需要在DOMContentLoaded回调事件中执行逻辑 document.addEventListener("DOMContentLoaded", function() { // 设置邮件联想 setDataList(); if(!true){ // 初始无货 按钮pv事件埋点上报 buttonPVReport(); } }); } // 设置邮件联想 function setDataList(){ const customer_email = window.C_SETTINGS.customer.customer_email; if(customer_email){ const options = document.createElement('option'); options.setAttribute('value', customer_email); doms.datalist.appendChild(options); } } // -----------------------事件操作---------------- // 监听sku变化事件 document.addEventListener('dj.variantChange', variantChange); // 监听提醒按钮点击事件 doms.button.addEventListener('click', reminderButtonClick); // 监听提交按钮点击事件 doms.submitButton.addEventListener('click', submit); // 监听input元素的keydown事件 doms.emailInput.addEventListener('keydown', function(e) { // 判断是否按下了Enter键 if (e.keyCode === 13 || e.key === 'Enter') { submit(); } }); // 显示正常按钮 function showReminderButton(){ doms.button.classList.remove('app-arrival-hidden'); doms.previewBox.classList.add('app-arrival-preview-hidden'); buttonPVReport(); } // 展示预览按钮 function showPreviewButton(){ doms.button.classList.remove('app-arrival-hidden'); doms.previewBox.classList.remove('app-arrival-preview-hidden'); } // 隐藏按钮 function hiddenReminderButton(){ doms.button.classList.add('app-arrival-hidden'); doms.previewBox.classList.add('app-arrival-preview-hidden'); } // 提交数据, 请求接口 function submit(){ // 获取邮箱数据 const email = doms.emailInput.value.trim(); if(!email){ doms.emailWarnText.innerText = "Please enter your email address"; doms.emailWarn.classList.remove('app-arrival-hidden'); return; } if(!EMAIL_REG.test(email)){ doms.emailWarnText.innerText = "Please enter a valid email address"; doms.emailWarn.classList.remove('app-arrival-hidden'); return; } // 邮箱校验成功 doms.emailWarn.classList.add('app-arrival-hidden'); // 预览时不调接口 if(false){ SPZ.whenApiDefined(doms.toast).then(apis => { apis.showToast("Currently in preview mode, subscription is for testing only", 3000); }); return; } // 加入loading样式 doms.submitButton.classList.add('reminder-submit-button-loading'); // 提交数据请求接口 let quantity = 1; const quantityDom = $('#app-arrival-reminder-quantity-render ljs-quantity'); if(quantityDom){ quantity = Number(quantityDom.getAttribute('value')) || 1; } const params = { customer_email: email, product_num: quantity, product_id: selectedVariant.product_id, product_variant_id: selectedVariant.id }; fetch(`${window.C_SETTINGS.routes.root}/api/front/gobbler/v1/subscribe`, { method: 'POST', body: JSON.stringify(params), headers: { 'Content-Type': 'application/json' } }).then((res)=>res.json()).then((res)=>{ /* 后端错误提示 */ if(res.errors && res.errors.length){ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast(res.errors[0], 3000); }); return; } /* code * 0 SUCCESS 订阅成功 * 1 PRODUCT_OFFLINE 商品下架 * 2 INVENTORY_NOT_EMPTY 商品库存不为空 * 3 REPEAT_SUBSCRIBE 重复订阅 * 4 EMAIL_EMPTY 邮件为空 * 5 EMAIL_WRONG_FORMAT 邮件格式错误 * 99999 INVALID_PARAMS 其他参数错误 */ const codeMap = { SUCCESS: ()=>{ SPZ.whenApiDefined(doms.lightbox).then(apis=>{ apis.close(); }); SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Thank you for your subscription! We will notify you as soon as the product is back in stock!", 3000); }); }, INVENTORY_NOT_EMPTY: ()=>{ SPZ.whenApiDefined(doms.lightbox).then(apis=>{ apis.close(); }); SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Subscription failed. Product back in stock, please proceed to checkout.", 3000); }); setTimeout(()=>{ window.location.reload(); }, 3000); }, REPEAT_SUBSCRIBE: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("You've already subscribed to this product. We'll let you know as soon as it's back in stock. Feel free to explore our other products.", 3000); }); }, EMAIL_EMPTY: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Please enter your email address", 3000); }); }, EMAIL_WRONG_FORMAT: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Please enter a valid email address", 3000); }); } }; codeMap.PRODUCT_OFFLINE = codeMap.SUCCESS; codeMap[res.code] && codeMap[res.code](); }).finally(()=>{ doms.submitButton.classList.remove('reminder-submit-button-loading'); }); // submit点击上报 submitClickReport(); } // 重新渲染dialog function refreshRenderDialog(){ console.log('selectedVariant', selectedVariant); const images = selectedVariant.image || {"src":"\/\/img.staticdj.com\/3aff2ac59c3bbbf1ba5643f3be5cf1cc.jpg","path":"3aff2ac59c3bbbf1ba5643f3be5cf1cc.jpg","width":1500,"height":1500,"alt":"Alloyworks 3 Rows Aluminum Radiator with Fan Shroud For 1968-1990 Chevy C10 K20 El Camino GMC C2500 28''W V8 18-5\/8\"H x 33\"W","aspect_ratio":1}; const imagePosition = images.aspect_ratio > 1 ? 'left top' : 'center center'; // 重新渲染图片 SPZ.whenApiDefined(doms.imgRender).then((apis)=>{ apis.render({ images, imagePosition }); }); // 邮件错误提示置空 doms.emailWarn.classList.add('app-arrival-hidden'); // 重新渲染款式说明 if(selectedVariant.title){ doms.productVariant.innerText = selectedVariant.title.split('-').join('/'); } // 表单数据置空 doms.emailInput.value = ''; } // sku变化 单一款式不会触发 function variantChange(e){ const selected = e.detail.selected; // 子款式没变不执行操作 例如数量变化 if(selected.id === selectedVariant.id){ return; } selectedVariant = selected; console.log('selectedVariant', selectedVariant); // 数量变化 if(selected.available || selected.product_id === undefined){ // 有库存 编辑时展示预览按钮 否则隐藏按钮 if(false){ showPreviewButton(); }else { hiddenReminderButton(); } }else{ // 无库存 显示正常按钮 showReminderButton(); } } // 提醒按钮点击 function reminderButtonClick(){ refreshRenderDialog(); // 弹窗曝光上报 popupPVReport(); } document.body.appendChild(doms.toast); document.body.appendChild(doms.lightbox.parentElement); })();
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1972-1975 Chevy Bel Air 5.7L 350Cu. In. V8
1971-1975 Chevy Bel Air 6.6L 400Cu. In. V8
1971-1972 Chevy Bel Air 6.6L 402Cu. In. V8
1971-1972 Chevy Biscayne 4.1L(250Ci) l6 / 5.7L(350Ci), 7.4L(454Ci) V8
1972 Chevy Biscayne 6.6L 400Ci/402Ci V8
1972 Chevy Brookwood 4.1L(250Ci) l6 / 6.6L(402Ci) V8
1971 Chevy Brookwood 5.7L 350Cu. In. V8
1971-1972 Chevy Brookwood 5.0L(307Ci) / 6.6L(400Ci) V8
1975-1980 Chevy C10 4.1L(250Ci) / 4.8L(292Ci) l6
1977-1980 Chevy C10 5.0L 305Cu. In. V8
1975-1986 Chevy C10 5.7L 350Cu. In. V8
1973-1974 Chevy C10 Pickup 4.1L(250Ci) / 4.8L(292Ci) l6
1973 Chevy C10 Pickup 5.0L 307Cu. In. V8
1974 Chevy C10 Pickup 5.7L 350Cu. In. V8
1973 Chevy C10 Suburban 5.0L 307Cu. In. V8
1973-1980 Chevy C10 Suburban 4.1L 250Cu. In. l6
1973-1974 Chevy C10 Suburban 4.8L(292Ci) l6
1977-1979 Chevy C10 Suburban 5.0L 305Cu. In. V8
1977-1979 Chevy C10 Suburban 5.7L 350Cu. In. V8
1984 Chevy C15 5.7L 350Cu. In. V8
1975-1980 Chevy C20 4.1L(250Ci) / 4.8L(292Ci) l6
1977-1978 Chevy C20 5.0L 305Cu. In. V8
1975-1986 Chevy C20 5.7L 350Cu. In. V8
1973-1974 Chevy C20 Pickup 4.1L(250Ci) / 4.8L(292Ci) l6
1973 Chevy C20 Pickup 5.7L 350Cu. In. V8
1973-1974 Chevy C20 Suburban 4.1L 250Cu. In. l6
1973-1982 Chevy C20 Suburban 4.8L 292Cu. In. l6
1977-1978 Chevy C20 Suburban 5.0L 305Cu. In. V8
1973-1979 Chevy C20 Suburban 5.7L 350Cu. In. V8
1973 Chevy C20 Suburban 5.0L 307Cu. In. V8
1975, 1978-1981 Chevy C30 4.1L 250Cu. In. l6
1975-1980 Chevy C30 4.8L 292Cu. In. l6
1975-1986 Chevy C30 5.7L 350Cu. In. V8
1978 Chevy C30 5.0L 305Cu. In. V8
1973-1974 Chevy C20 Pickup 4.1L(250Ci), 4.8L(292Ci) l6 / 5.7L(350Ci) V8
1980-1985 Chevy Caprice 3.8L 231Cu. In. V6
1977-1979 Chevy Caprice 4.1L 250Cu. In. l6
1981-1982 Chevy Caprice 4.4L 267Cu. In. V8
1989-1990 Chevy Caprice 5.0L 305Cu. In. V8
1975-1990 Chevy Caprice 5.7L 350Cu. In. V8
1971-1976 Chevy Caprice 5.7L 350Cu. In. V8
1972 Chevy Caprice 6.6L 402Cu. In. V8
1986 1987 1989 1990 Chevy Caprice 5.0L 307Cu. In. V8
1971-1972 Chevy Chevelle 4.1L(250Ci) l6 / 5.0L(307Ci), 6.6L(400Ci), 6.6L(402Ci), 7.4L(454Ci) V8
1971-1973 Chevy Chevelle 5.7L 350Cu. In. V8
1975 1977 Chevy El Camino 4.1L 250Cu. In. l6
1976 1977 Chevy El Camino 5.0L 305Cu. In. V8
1971-1973 Chevy El Camino 5.0L 307Cu. In. V8
1974-1976 Chevy El Camino 6.6L 400Cu. In. V8
1973-1975 Chevy El Camino 7.4L 454Cu. In. V8
1971, 1973-1977 Chevy El Camino 5.7L 350Cu. In. V8
1972 Chevy G10/G20/G30 Van 4.1L 250Cu. In. l6
1972 Chevy G20 Van 5.7L 350Cu. In. V8
1971 72 73 77 78 79 Chevy Impala 4.1L 250Cu. In. l6
1977-1979 Chevy Impala 5.0L 305Cu. In. V8
1971-1973 Chevy Impala 5.0L 307Cu. In. V8
1971-1979 Chevy Impala 5.7L 350Cu. In. V8
1971-1976 Chevy Impala 6.6L 400Cu. In. V8
1971-1972 Chevy Impala 6.6L 402Cu. In. V8
1975-1980 Chevy K10 4.1L 250Cu. In. l6
1977-1978 Chevy K10 5.0L 305Cu. In. V8
1976 1976 1989 Chevy K10 4.8L 292Cu. In. l6
1975-1983,1985 Chevy K10 5.7L 350Cu. In. V8
1973 1974 Chevy K10 Pickup 4.1L 250Cu. In. l6
1973 Chevy K10 Pickup 4.8L 292Cu. In. l6 / 5.7L 350Cu. In. V8
1973-1980 Chevy K10 Suburban 4.1L 250Cu. In. l6
1977-1979 Chevy K10 Suburban 5.0L 305Cu. In. V8
1973-1978 Chevy K10 Suburban 5.7L 350Cu. In. V8
1973 Chevy K10 Suburban 5.0L 307Cu. In. V8
1975-1980 Chevy K20 4.1L(250Ci) / 4.8L(292Ci) l6
1977-1978 Chevy K20 5.0L 305Cu. In. V8
1975-1986 Chevy K20 5.7L 350Cu. In. V8
1973 1974 Chevy K20/K30 Pickup 4.1L(250Ci) / 4.8L(292Ci) l6
1973 Chevy K20/K30 Pickup 5.0L 307Cu. In. V8
1974 Chevy K20/K30 Pickup 5.7L 350Cu. In. V8
1973 1974 Chevy K20 Suburban 4.1L 250Cu. In. l6
1973-1982 Chevy K20 Suburban 4.8L 292Cu. In. l6
1977-1978 Chevy K20 Suburban 5.0L 305Cu. In. V8
1973 Chevy K20 Suburban 5.0L 307Cu. In. V8
1973,1975-1978 K20 Suburban 5.7L 350Cu. In. V8
1977-1980 Chevy K30 4.8L 292Cu. In. l6
1977-1986 Chevy K30 5.7L 350Cu. In. V8
1975-1980 Chevy K5 Blazer 4.1L 250Cu. In. l6 / 5.7L 350Cu. In. V8
1977-1980 Chevy K5 Blazer 5.0L 305Cu. In. V8
1972 Chevy Kingswood 5.7L(350Ci),6.6L(400Ci),6.6L(402Ci),7.4L(454Ci) V8
1973-1977 Chevy Malibu 4.1L 250Cu. In. l6 / 5.7L 350Cu. In. V8
1976-1977 Chevy Malibu 5.0L 305Cu. In. V8
1973-1976 Chevy Malibu 6.6L 400Cu. In. V8
1973-1974 Chevy Malibu 7.4L(454Ci) V8
1973 Chevy Malibu 5.0L 307Cu. In. V8
1972-1973 Chevy Monte Carlo 5.7L(350Ci),6.6L(400Ci),7.4L(454Ci) V8
1972 Chevy Monte Carlo 6.6L(402Ci) V8

Radiator Size:
Core Dimensions: 17" height x 28 1/4" width x 1 3/4''Thick
Overall Dimensions: 18 5/8" height x 33" width x 5 1/2''Thick
Upper inlet: 1 1/2" located on driver's side.
Lower outlet: 1 1/2" located on the passenger side.
Trans cooler: ¢32*215*G1/4(Z)

Specification:
Mounting System: Bracket
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Please Check the Size Before You Buy!

Package Include:
1 X 3-Row Aluminum Radiator
1 X Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Plastic Drain

Fans Details:
Volt :12v
Maximum Fan CFM: 1730 cfm
Thickness (in): 2.500”
Number of Blades: 8 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area enabling the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
