Engine applications: 5.0L, 302ci, 351ci, 390ci, 428ci, & 429ci V8 ONLY
Radiator Size:
Core Dimensions: 16-6/7'' W x 16-4/9'' H x 1-6/8''Thick
Overall Dimensions: 19-3/5''W x 21-5/9'' H x 5.71'' Thick
Upper INLET: 1-1/2" located on the PASSENGER side.
Lower OUTLET: 1-3/4" located on the DRIVER side.
Specification:
Mounting System: Bracket
Transmission Cooler: ¢26×150×1/8-27NPT(T)
High-Performance Racing Spec.
3-Row of tubes Core Racing Design
Please Check the Size Before Purchasing
Package Include:

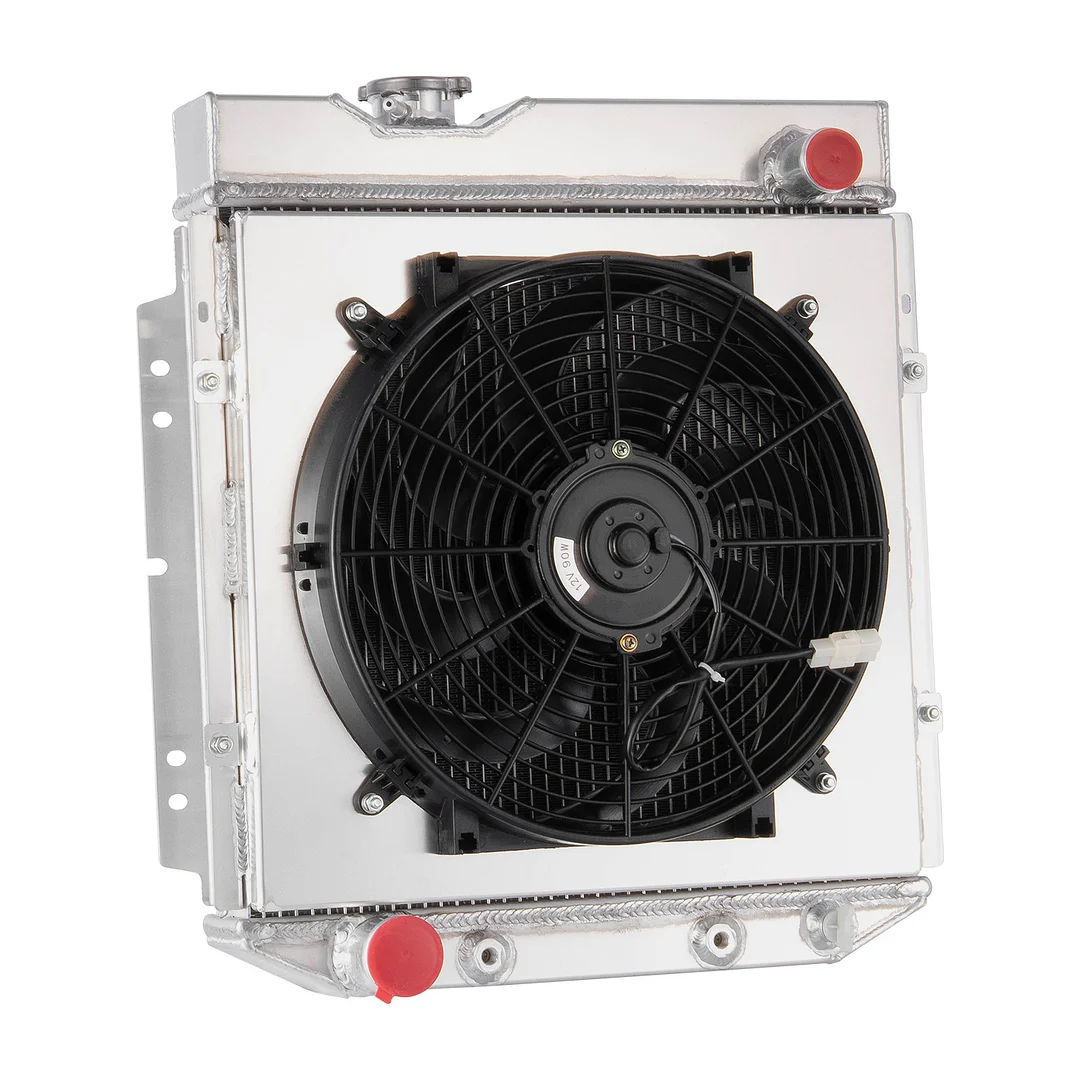

1 X 3-Row Aluminum Radiator
1 X Aluminum Shroud
1 X 14" Fans (Includes mounting kits)
1 X Plastic Drain
Fans Details:
Volt: 12v
Motor: 90W
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
This Ford aluminum radiator is engineered for maximum cooling efficiency, preventing premature engine failure. The lightweight tube and fin design of this Mustang radiator significantly increases surface area, allowing heat to dissipate more effectively. Offering at least 40% more efficiency than stock radiators, it also has a higher coolant capacity, enhancing your cooling system’s performance and resistance to temperature surges.
