Fitment:
1982-1984 CHEVROLET CAMARO 2.5L - 5.0L (26" WIDE CORE ONLY)1985-1986 CHEVROLET CAMARO 5.0L (26" WIDE CORE ONLY)
1987-1992 CHEVROLET CAMARO 5.0L - 5.7L
1982-1984 PONTIAC FIREBIRD/TRANS AM 2.5L - 5.0L
1985-1986 PONTIAC FIREBIRD/TRANS AM 5.0L
1987-1988 PONTIAC FIREBIRD/TRANS AM 5.0L - 5.7L
1989-1992 PONTIAC FIREBIRD/TRANS AM 3.1L - 5.0L - 5.7L
Interchange Part Number: MC951 CU951 CC951 951 DPI951
This radiator is designed for either a 2.5L(151ci) L4, 5.0L(305ci) V8 or a 5.7L(350ci) V8 engine.

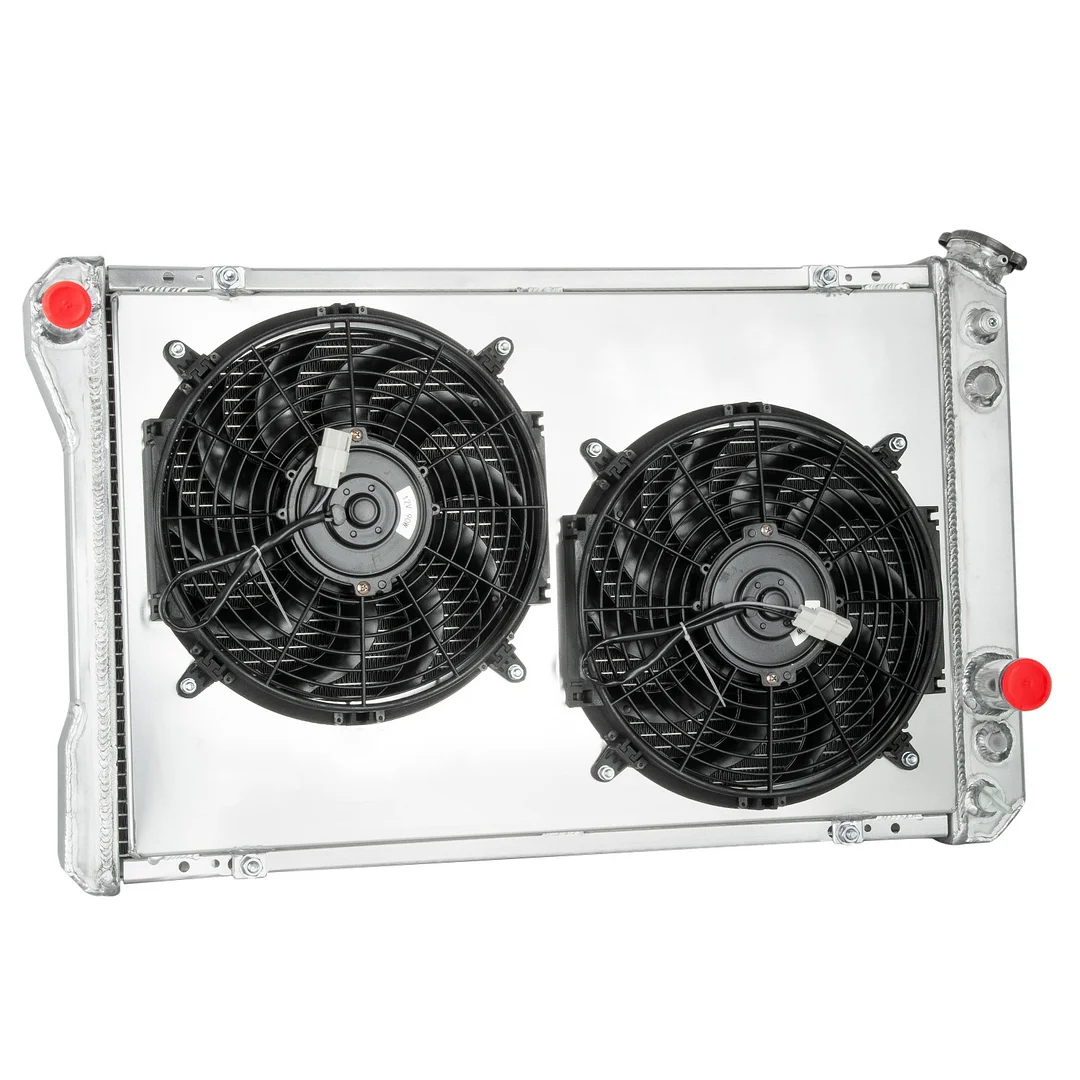

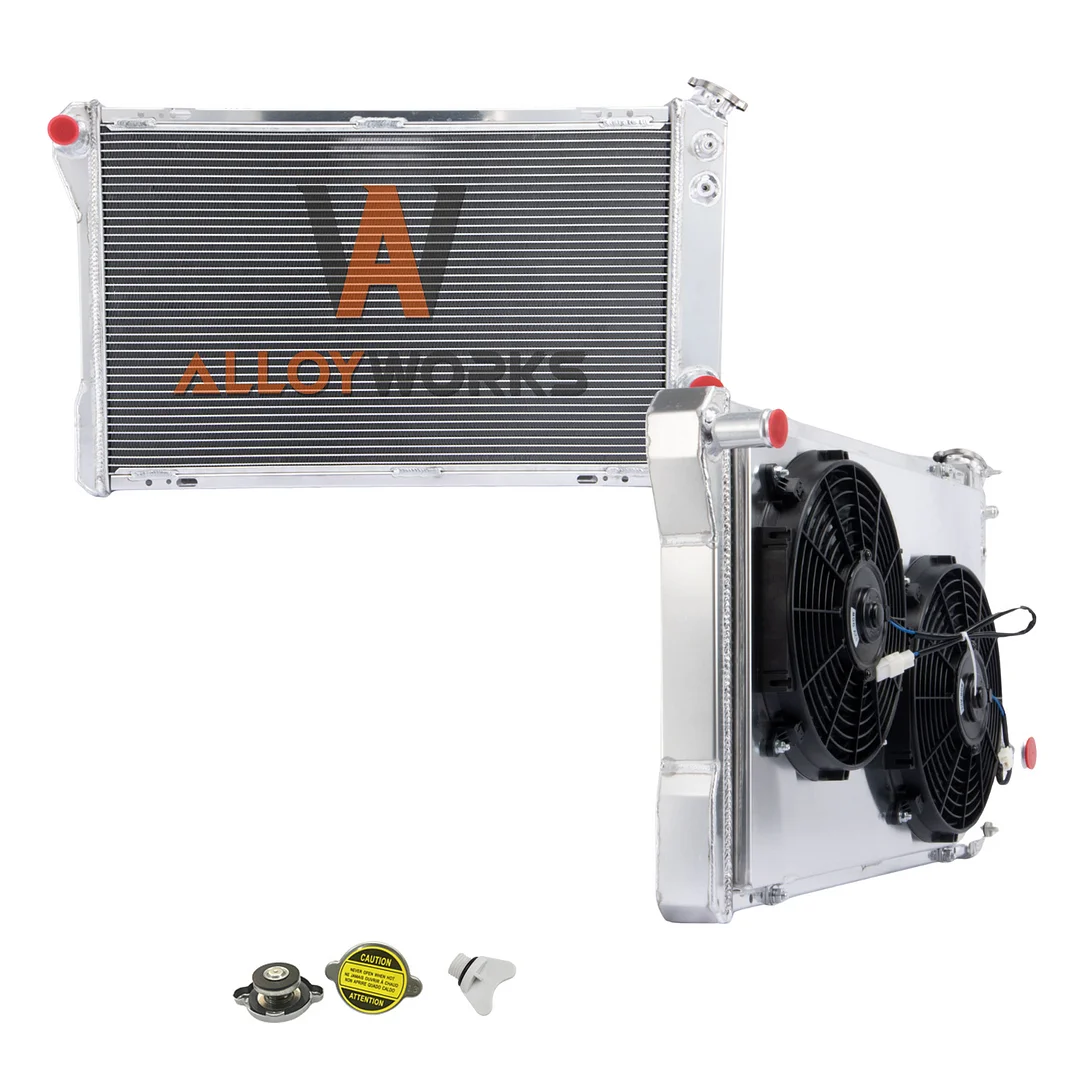

Package Include:
1 X 3-Row Aluminum Radiator1 X Plastic Drain
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
Radiator Size:
3 Rows Of TubesCore Size: 26-1/4" W x 16-4/9" H x 1 3/4''Thick
Overall Size: 32" W x 19-1/2" H x 5 5/7''Thick
Tank Size: 2 1/2 x 18 5/8
Inlet Hose Connection: 1 2/3" Driver Side
Outlet Hose Connection: 1 1/4" Passenger Side
FITS AUTOMATIC OR MANUAL TRANSMISSIONS
Transmission Oil Cooler: ¢26×290×M12*1.25(Z)
Mounting Type: Saddle
Mounting Specs: Vert - 22 3/8 Horizontal - 17 1/2
Please Check the Size Before Placing Orders!
Fan Specification:
Diameter: 12'' (Blade to Blade)Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 1730cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
Description:
This aluminum radiator is engineered for maximum cooling efficiency to prevent premature engine failure. Its lightweight, high-heat transferring aluminum features a tube and fin design that dramatically increases surface area, allowing for more efficient heat dissipation.
This aluminum radiator is at least 40% more efficient than stock models. Most importantly, it has a significantly higher coolant capacity than standard options, ensuring your cooling system operates effectively and is more resistant to temperature surges, making it an ideal radiator replacement for car radiators and Chevrolet radiators.
