All of our new parts are aftermarket replacements. The use of original manufacturer's names and part numbers is for reference purposes only.
Fits Case Tractor(s) 2390, 2394, 2590, 2594, 3294
Replaces Case OEM nos A166469, A147140, A184365
Fits Case IH Tractor(s) 2394, 2594, 3394, 3594
Replaces Case IH OEM nos A184365, A147140, A166469
Case Tractors 2390, 2394, 2590, 2594
Specifications:
High Performance Racing Spec.
5-Row of tubes Core
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Overall Height: 35-1/4"
Overall Width: 28-1/2"
Core Height: 26-1/2"
Core Width: 27-1/2"
Depth: 3-1/2"
Fins Per Inch: 8
Fill Neck Height: 2"
Inlet: 2-1/2"
Outlet: 2-1/2"
All States Ag Parts Item No. 101688

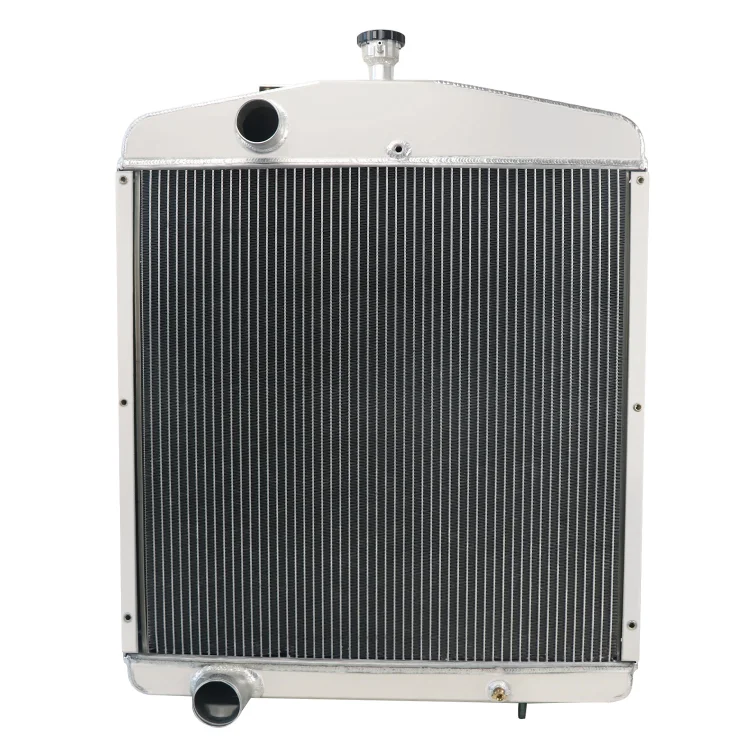

Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality AA5052 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Aluminum plate is pressed, high quality and durable.
