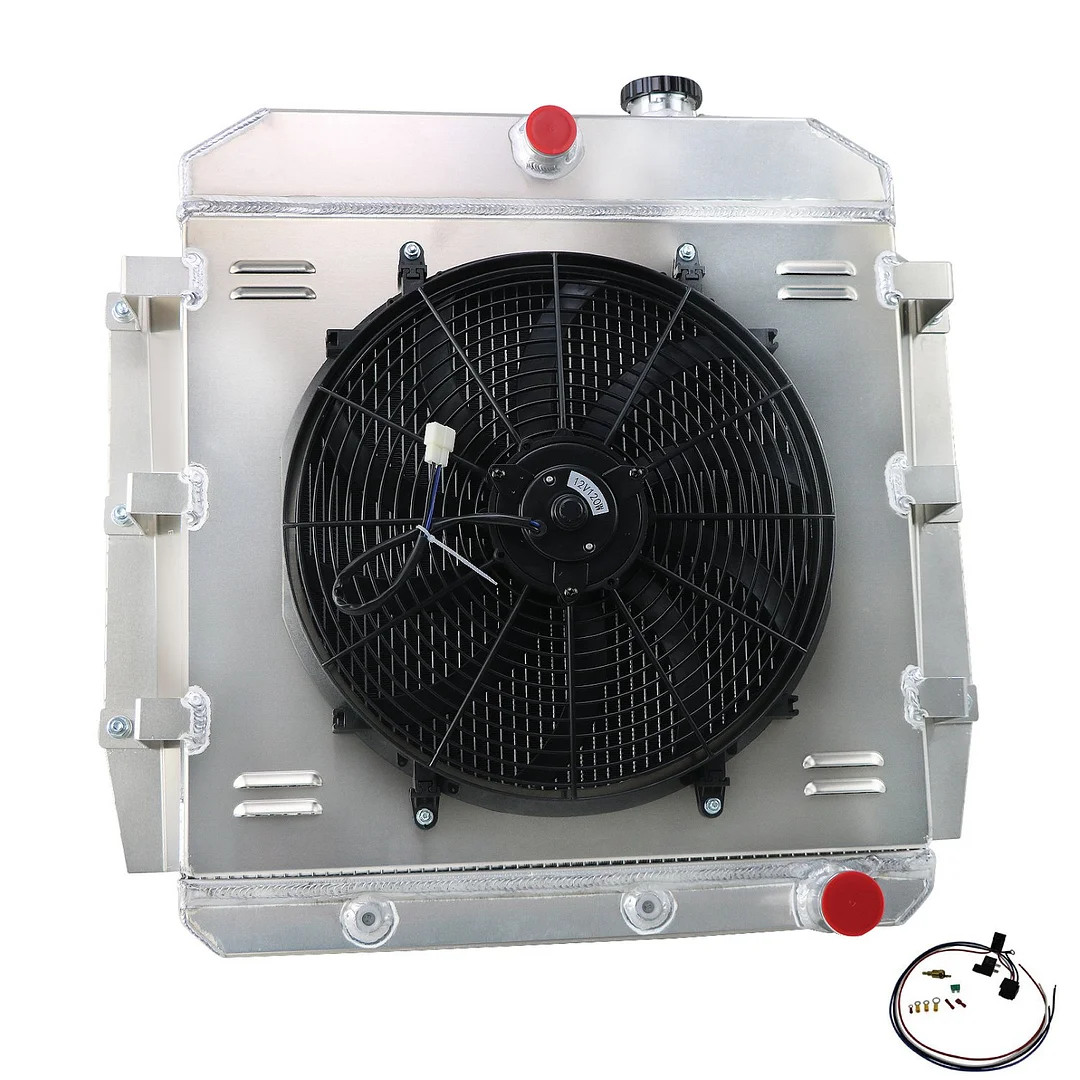

Alloyworks EXTREME COOLING 4Row Radiator&Shroud+Fan+Relay For Chevy Truck 3B 3C 3E 3D 3F 3G GMC 100/150 L6 V8 1955-1959-120W

Alloyworks EXTREME COOLING 4Row Radiator&Shroud+Fan+Relay For Chevy Truck 3B 3C 3E 3D 3F 3G GMC 100/150 L6 V8 1955-1959-120W

MC5559DZFSXJ120W-BN
$335.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1959 Chevy 3B/3C/3D/3E/3F/3G 3.8L 3852CC 235Cu. In. l6
1959 Chevy 3B/3C/3D/3E/3F/3G 4.6L 4638CC 283Cu. In. V8
1955-1959 Chevy Truck 3.8L 3852CC 235Cu. In. l6
1955-1958 Chevy Truck 4.3L 4278CC 261Cu. In. l6
1955-1957 Chevy Truck 4.3L 4343CC 265Cu. In. V8
1957-1959 Chevy Truck 4.6L 4638CC 283Cu. In. V8
1956-1958 Chevy Truck 5.3L 5272CC 322Cu. In. V8
1955-1956 Chevy Truck 5.3L 5310CC 324Cu. In. V8
1958 Chevy Truck 5.7L 5704CC 348Cu. In. V8
1955 GMC 100/150 4.1L 4065CC 248Cu. In. l6
1955 GMC 100/150 4.7L 4720CC 288Cu. In. V8
1958 GMC 100/150 5.5L 5522CC 337Cu. In. V8
1957 GMC 100/150 5.7L 5687CC 347Cu. In. V8
1956-1958 GMC 100/150 4.4L 4425CC 270Cu. In. l6
1956-1958 GMC 100/150 5.3L 5272CC 322Cu. In. V8
1955-1956 GMC 100/150 5.2L 5179CC 316Cu. In. V8
1955-1956 GMC 100/150 5.3L 5310CC 324Cu. In. V8
1957-1958 GMC 100/150 6.1L 6064CC 370Cu. In. V8

Please Notice
To confirm that this part fits your vehicle, check your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.


Specifications:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Radiator Flow: Cross Flow
Core Dimensions: 19 3/8" high x 21 4/7" wide x 2 4/9" thick
Overall Dimensions: 26 1/6" high x 27" wide x 7 1/9" thick
Upper inlet: 1 1/2" located in ccheck.
Lower outlet: 1 7/9" located on passenger side.
Auto trans cooler: yes
OEM mount system
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!

Fan Specification:
No load Speed (Revolutions Per Minute) : 3000 RPM
load Speed (Revolutions Per Minute) : 1860 RPM
Voltage: 12V
Watts: 120W


Description
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality AA5052 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.

Aluminum plate is pressed, high quality and durable.
