Radiator Details:
4 Rows Core
Core Size: 18.7'' H x 23.14'' W
Overall Size: 24'' H X 29.7'' W X 6.7'' T
Inlet Connection: 1 5/16"
Outlet Connection: 1 9/16"
Engine Oil Cooler: No
Transmission Oil Cooler: M14*1.5

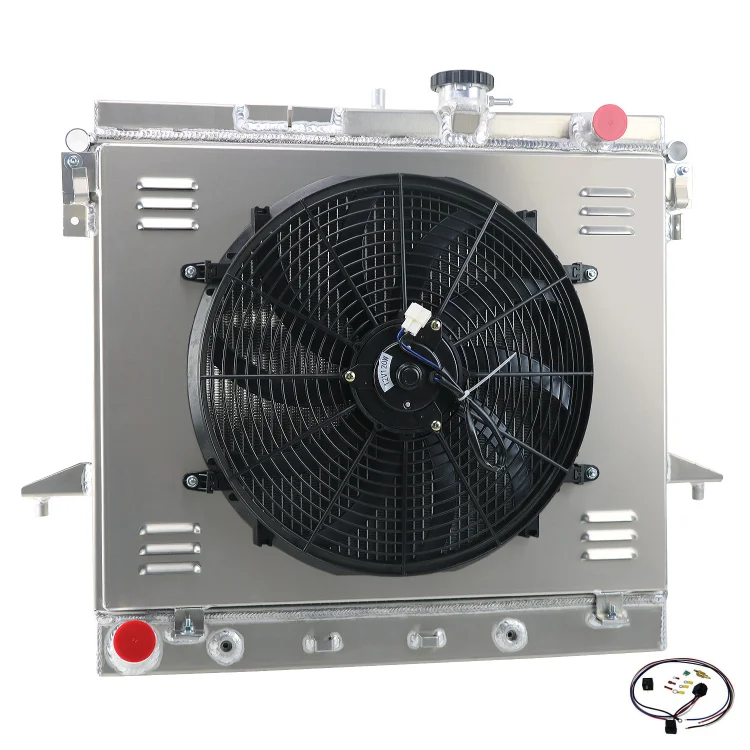

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Features:
1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings to ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck is rugged and durable
5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6. Carefully crafted to exceptional OE standards for a precise fit.
Fan Specification:
16" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps
Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at the preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.
This setup will run Fans & pull air in through the radiator.
DESCRIPTION:
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability, and cold workability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
