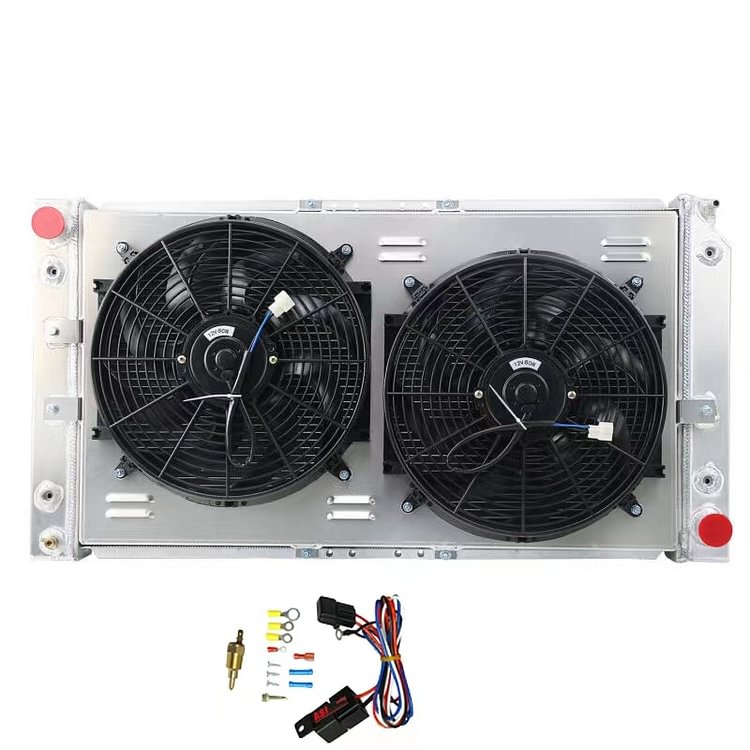

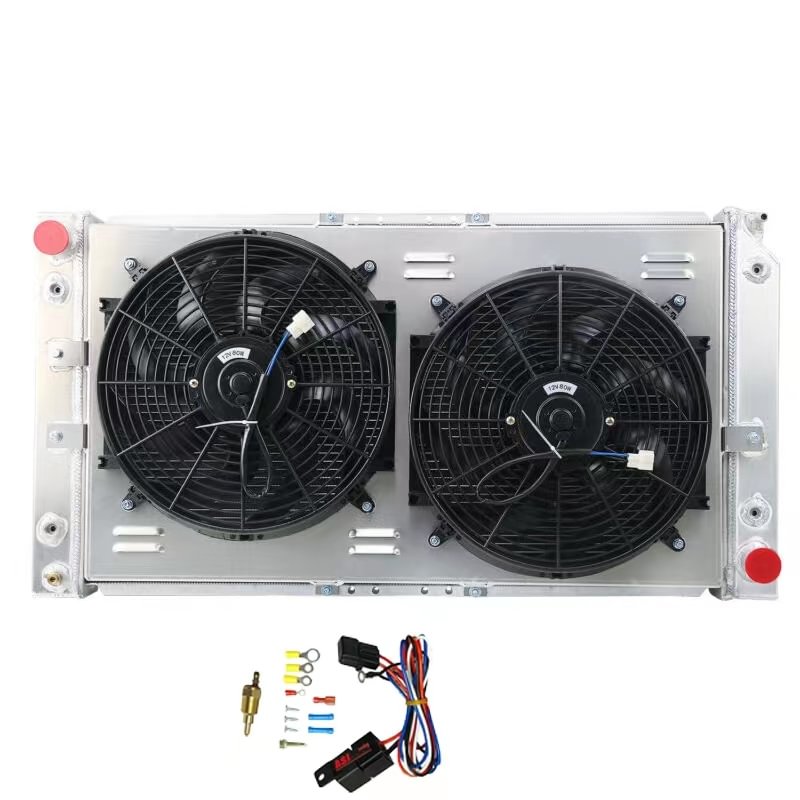

Alloyworks 4 Rows Aluminum Radiator with Shroud Fans for 1994-1996 Chevy Impala Caprice Buick Roadmaster Cadillac Fleetwood 5.7L 350C V8 36" Width x 18 5/8" Height

Alloyworks 4 Rows Aluminum Radiator with Shroud Fans for 1994-1996 Chevy Impala Caprice Buick Roadmaster Cadillac Fleetwood 5.7L 350C V8 36" Width x 18 5/8" Height

535-50246DFSXJ90W-BN
$309.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

High Performance Racing Spec.

4-Row of tubes Core Racing Design

Material: High Quality Full AA5052 Aluminum Construction

Core Size: 30 1/2"WIDTH x 17" HEIGHT

Overall Size: 36" WIDTH x 18 5/8" HEIGHT

Tanks Sizes: 2 3/4 x 18 5/8

Inlet Hose Connection: 1 1/2" Driver Side

Outlet Hose Connection: 1 1/2 "Passenger Side

Transmission Oil Cooler: Yes Passenger Side

Engine Oil Cooler: Yes Driver Side

OEM Style Brass Petcock Drain

Please check original radiator before purchase!

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X AA5052 Aluminum Shroud

2 X 14" Fan (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 4-Row AA5052 Aluminum Radiator

1 X AA5052 Aluminum Shroud

2 X 14" Fan (Includes mounting kits)

1 X Thermostat Relay Kit

Fan Specification

Diameter : 14'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 90W

Number of Blades: 8 S-Type blades

Maximum Fan CFM(Cubic Feet per Minute): 1730 cfm

Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%

Fan Thickness: 2.64"

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Our radiator is made of AA5052 aircraft aluminum. 5052 Aluminum's major alloying element is magnesium, providing higher strength and greater corrosion resistance, including resistance to saltwater.

Higher density core: Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.

The core of the radiator is welded in a vacuum brazing furnace, with no epoxy. The radiator is 100% TIG welded, ensuring stronger and higher coolant capacity than OEM units. It is made of high-quality full A5052 aluminum construction. An aluminum radiator is designed to provide maximum cooling efficiency, preventing premature engine failure.

Radiator Features:

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at a preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.
