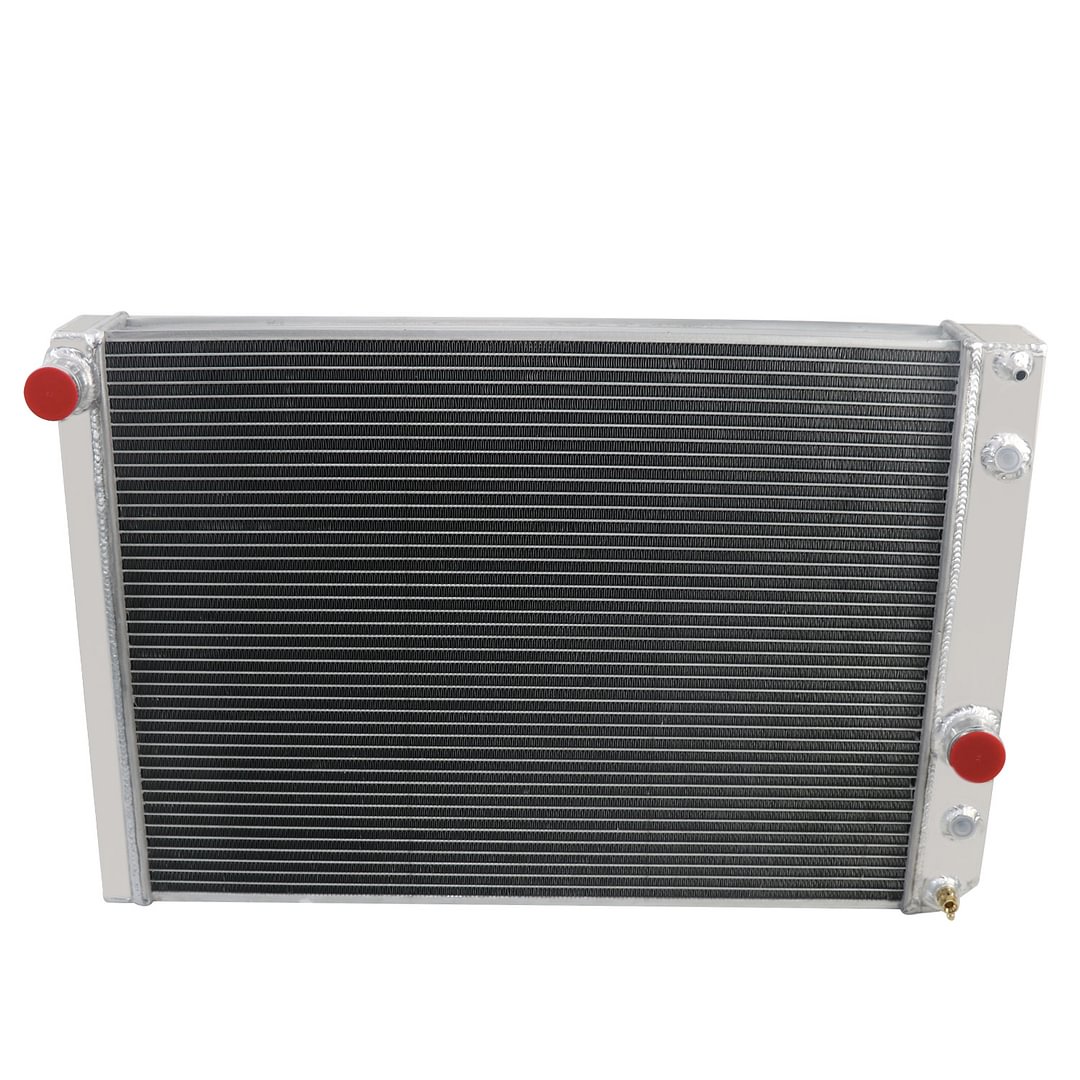

4Row Aluminum Radiator For 89 90 91 92 93 94 95 96 Chevy Corvette 5.7L V8 Manual

MC1052D-BN

$198.01 20 % $247.51
0 sold
Qty
Product description
Product description

Application:
For 89 90 91 92 93 94 95 96 Chevy Corvette 5.7L V8

Click here to view all compatible vehicles


Specifications:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: T-5057 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Down Flow Or Cross Flow Type: Cross Flow
Mounting Type: Saddle
Overall Height: 18 1/4 X Width: 27 3/4
Core Height: 17 5/8 X Width: 23 5/8
Inlet Diameter: 1 3/8" Driver Side
Outlet Diameter: 1 5/8" Passenger Side
Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare
Internal Transmission Oil Cooler: Yes
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!


Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality T-5057 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
