Fits:
1982-1985 Chevy S10 1.9L 119Cu. In. l4
1983-1984 Chevy S10 2.0L 122Cu. In. l4
1983-1985 Chevy S10 2.2L 134Cu. In. l4
1994-2002 Chevy S10 2.2L 2190CC 134Cu. In. l4
1985-1993 Chevy S10 2.5L 2474CC 151Cu. In. l4
1982-1993 Chevy S10 2.8L 173Cu. In. V6
1988-2002 Chevy S10 4.3L 262Cu. In. V6
1983-1984 Chevy S10 Blazer 1.9L 119Ci / 2.0L 122Ci l4
1984 Chevy S10 Blazer 2.2L 134Cu. In. l4
1985-1988 Chevy S10 Blazer 2.5L 2474CC 151Cu. In. l4
1983-1989 Chevy S10 Blazer 2.8L 173Cu. In. V6
1988-1994 Chevy S10 Blazer 4.3L 262Cu. In. V6
1984-1990 Chevy Corvette 5.7L 350Cu. In. V8
For V8 Conversion Models Only
Click here to view all compatible vehicles

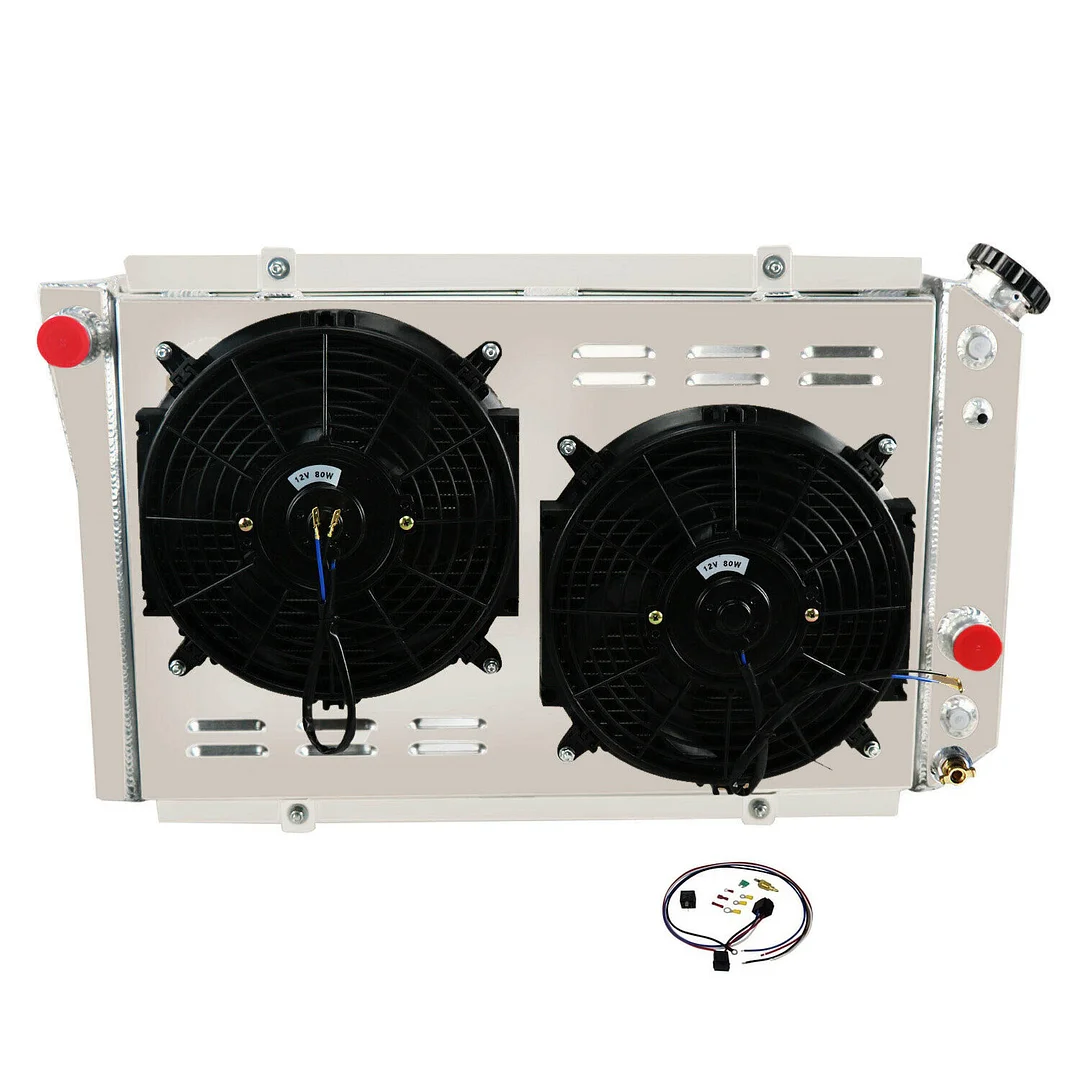

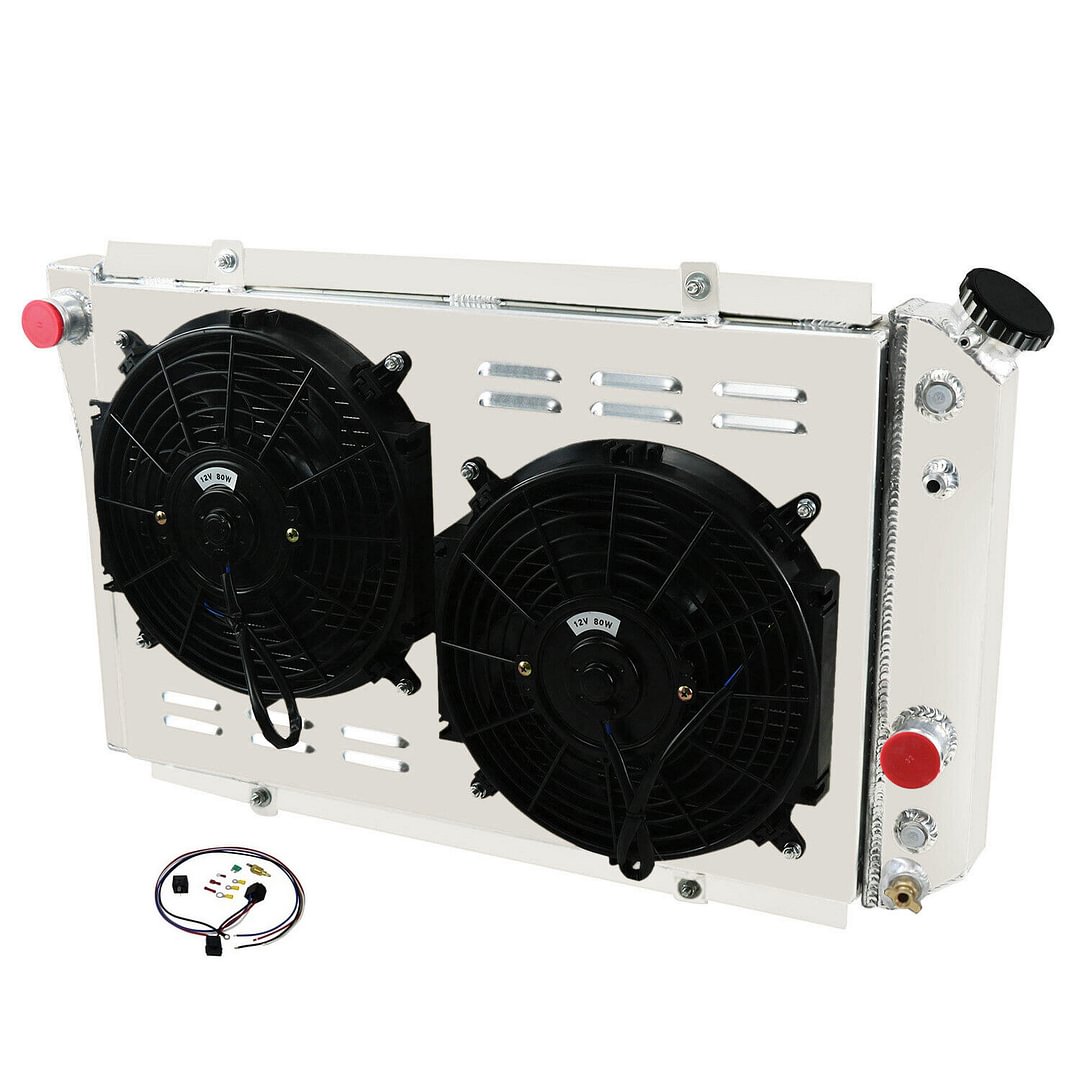

Package Include:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
Rows : 4-Row Core
Overall Size: 16 1/2" H X 29 1/4" W x 5 9/10''Thick
Core Size: 14 3/4" H x 23 5/8" W x 2 4/9''Thick
Inlet Diameter: 1 1/4"
Outlet Diameter: 1 3/8"
Transmission Oil Cooler: ¢26×290×M12×1.25(Z)
Features:
1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Billet Aluminum CNC machined fill neck rugged and durable
5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment
6.OEM style brass petcock drain much better than other plastic one
Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2150cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
